DESCRIPTION
DESCRIPTION

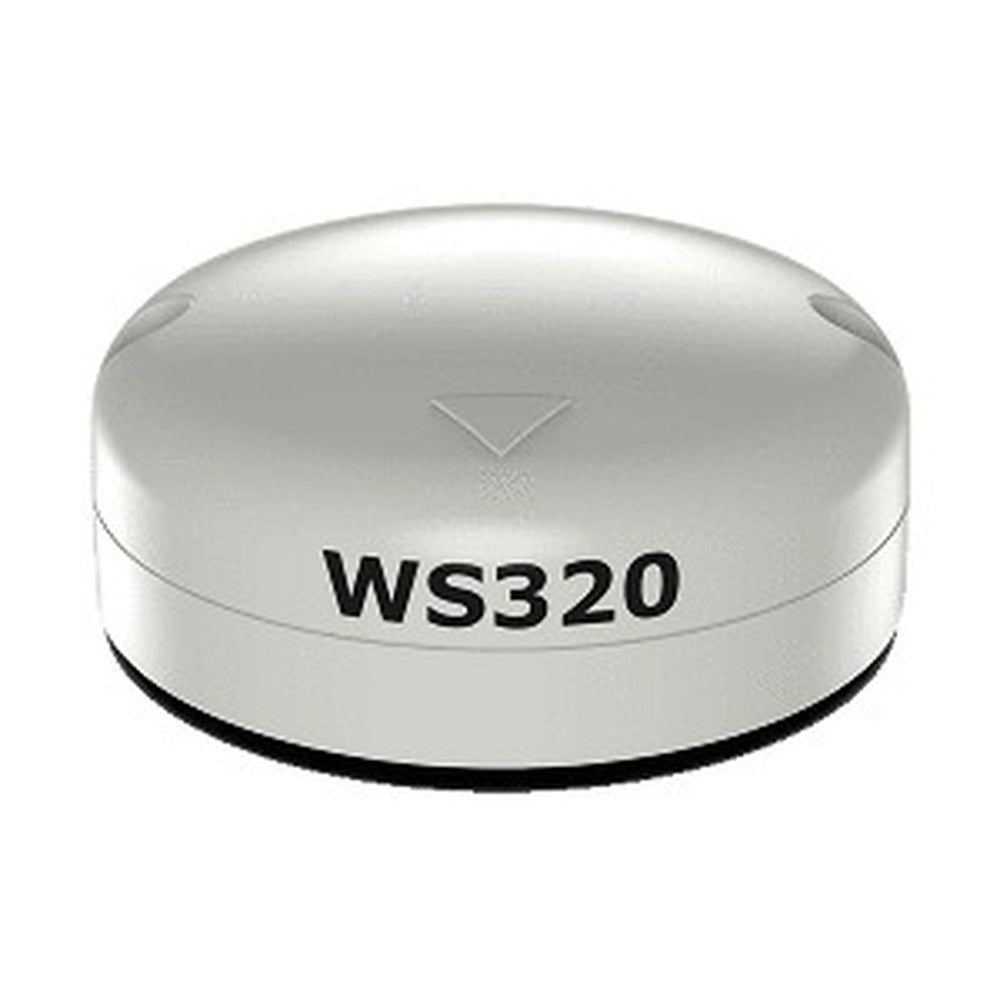

WS320 Wireless Interface for use with WS320 Wind Sensor, allows connection to your NMEA 2000® network.
Our Part # bng-000-14388-001 | Mfr. Part # 000-14388-001
FEATURES
FEATURES
- Bluetooth 4.0 communication
- Range suitable for mast heights of up to 25m/80’
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Value |
|---|---|
| Connectivity | |
| NMEA 2000 Connectivity | 1 x Micro-C port, 2 LEN |
| Approvals | |
| Approvals Compliance | IEC/EN 60945 |
| Electrical | |
| Power Consumption typical | 1.2W |
| Supply Voltage | 12V DC (9 - 16V DC) |
| Environment | |
| Humidity | Up to 95% RH |
| Operating Temperature Range | -15°C to +55°C (5°F to 131°F) |
| Storage Temperature Range | -20°C to +60°C (4°F to 140°F) |
| Waterproofrating | IPX7 |
| Physical | |
| Compass Safe | 300mm (12") |
| Weight | 0.1 kg (0.22 lbs) |
