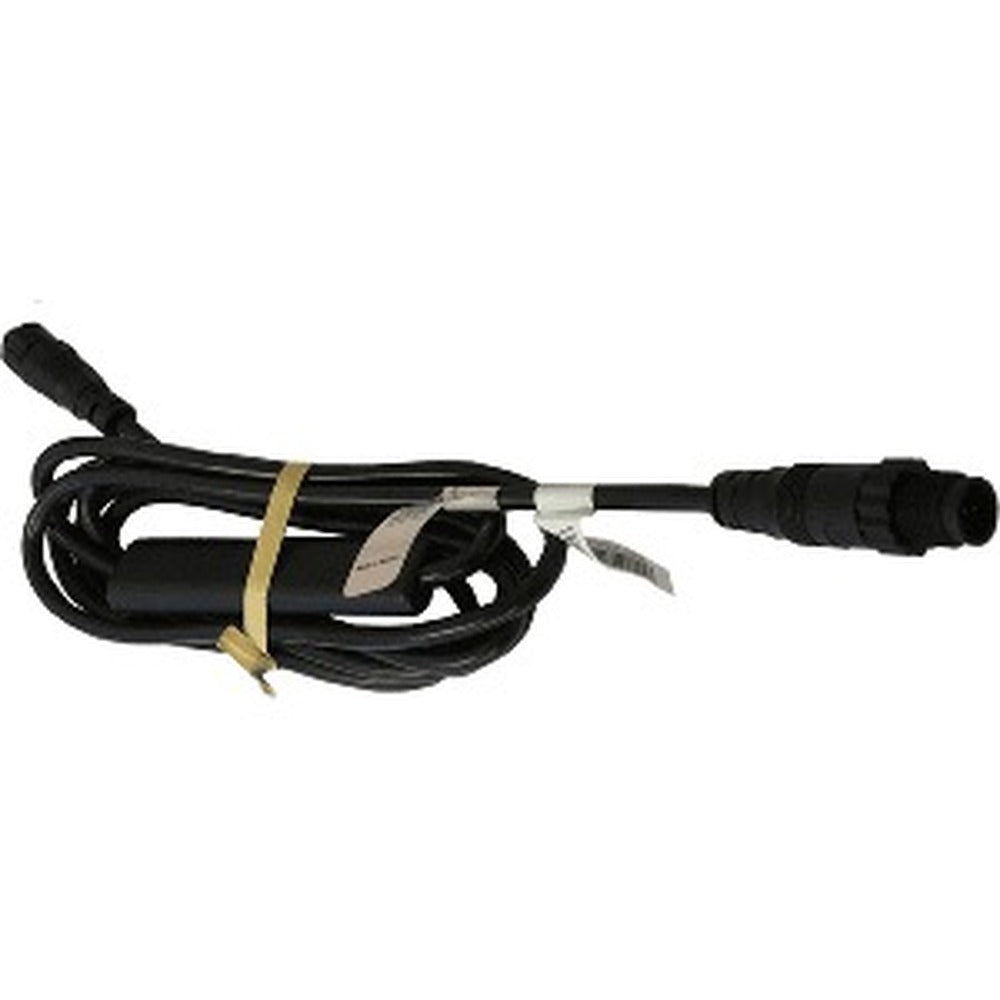

WS310 (wired) Interface for use with WS310 Wind Sensor, allows connection to your NMEA 2000® network.
Our Part # bng-000-14389-001 | Mfr. Part # 000-14389-001
FEATURES
FEATURES
- Interfaces a WS310 wind sensor to a NMEA 2000 network.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Value |
|---|---|
| Connectivity | |
| NMEA 2000 Connectivity | 1 x Micro-C port, 1 LEN |
| Approvals | |
| Approvals Compliance | IEC/EN 60945 |
| Electrical | |
| Supply Voltage | 12V DC (9 - 16V DC) |
| Environment | |
| Operating Temperature Range | -15°C to +55°C (5°F to 131°F) |
| Storage Temperature Range | -20°C to +60°C (4°F to 140°F) |
| Waterproofrating | IPX7 |
| Physical | |
| Compass Safe | 300mm (12") |
| Dimensions W x H x D | 90 x 20 x 10mm (3.5 x 0.8 x 0.4") |
| Other | |
| Warranty Period | 2 Years |
