Description
Description
A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger craft.
Plain bearing blocks
Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.
Ball bearing blocks
With our unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter centre boss. This allows us to fit more load-bearing balls, which ensure extremely low friction performance, even under high loads.

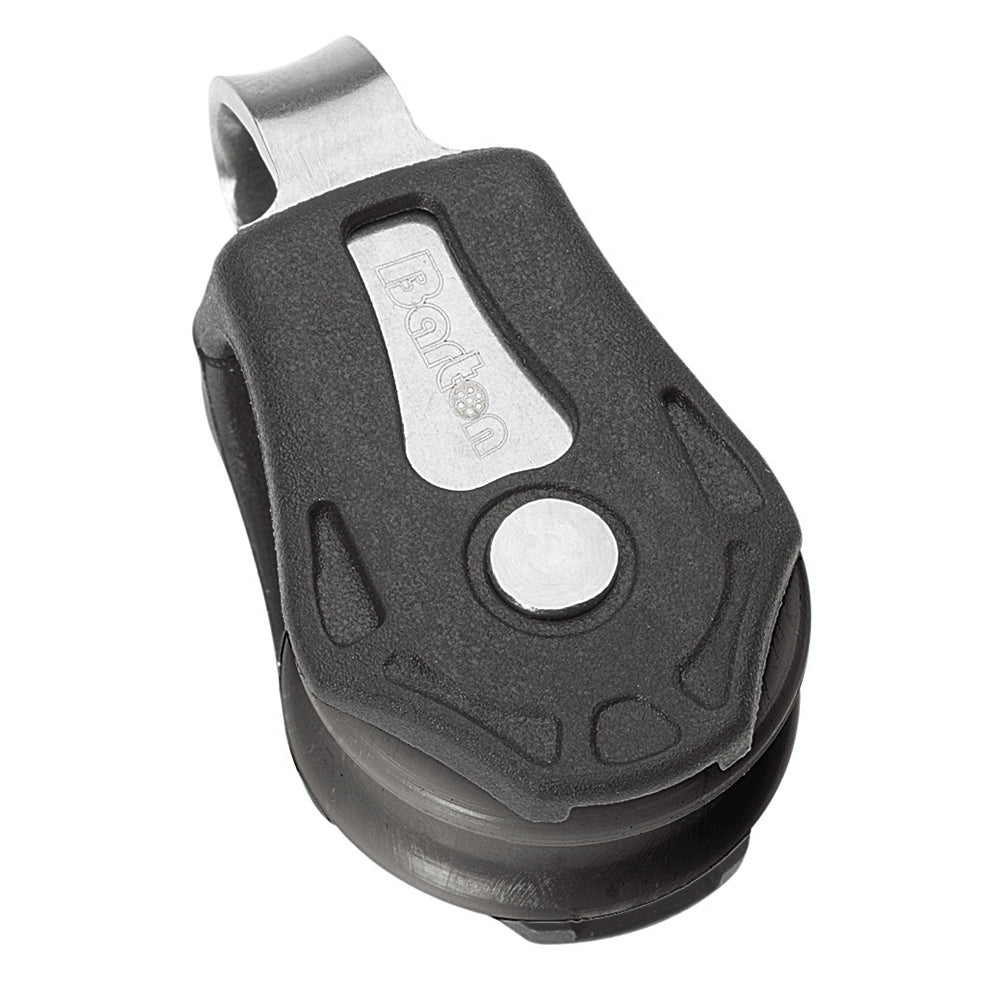

Our Part # BAM-N00-110 | Mfr. Part # N00 110
Features
Features
- 00 110 Series 0 single fixed eye (attached to primary red line through sail eye).
- 00 110 Series 0 single fixed eye ( attached to secondary yellow line short tail).
- Primary line 0.44m x 4mm red dyneema (with long and short loops).
- Secondary line 3.5m x 4mm yellow line (large loop provided with long and short tails).
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Sheave size | 25/32 x 5/16 in | 20.0 x 8.0 mm |
Max Rope diameter | 3/16 in | 5.0 mm |
Safe working load | 606.0 lb | 275.0 kg |
Break Load | 1210.0 lb | 550.0 kg |
Max rolling load | 286.0 lb | 130.0 kg |
Length | 1 9/16 in | 39.1 mm |
Weight Plain | 0.49 oz | 14.0 g |
Weight Ball | 0.42 oz | 12.0 g |
