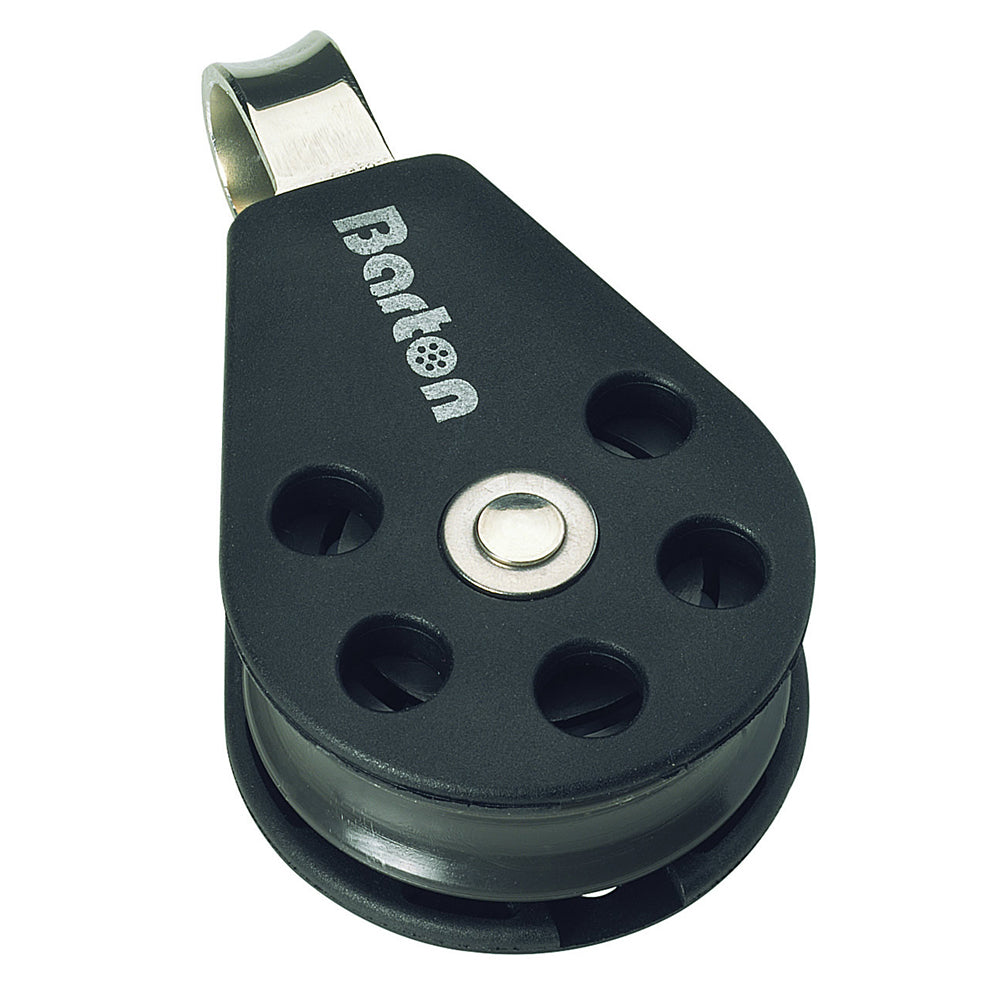

Barton Marine Series 0 Single Fixed Eye Ball Bearing Block - 20mm (N01110)

SKU: BAM-N01-110  |  Manuf. Code: N01110
$13.95 USD
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  1. We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  2. No auction sites
  3. No unauthorized sellers
  4. Item must be identical, new, and in stock
Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger craft.

Plain bearing blocks

Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Ball bearing blocks

With our unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter centre boss. This allows us to fit more load-bearing balls, which ensure extremely low friction performance, even under high loads.

Our Part # BAM-N01-110 | Mfr. Part # N01 110

FEATURES

  • 20mm sheave diameter.
  • Single fixed eye for secure attachment.
  • Ball bearing system for low friction.
  • Durable marine-grade composite body.
  • Ideal for small control lines.

TECHNICAL INFORMATION

DescriptionImperialMetric
Sheave size1 3/16 x 15/32 in30.0 x 12.0 mm
Max Rope diameter5/16 in8.0 mm
Safe working load782.0 lb355.0 kg
Break Load1565.0 lb710.0 kg
Max rolling load540.0 lb245.0 kg
Length2 3/16 in55.0 mm
Weight Plain1.1 oz31.0 g
Weight Ball1.13 oz32.0 g
