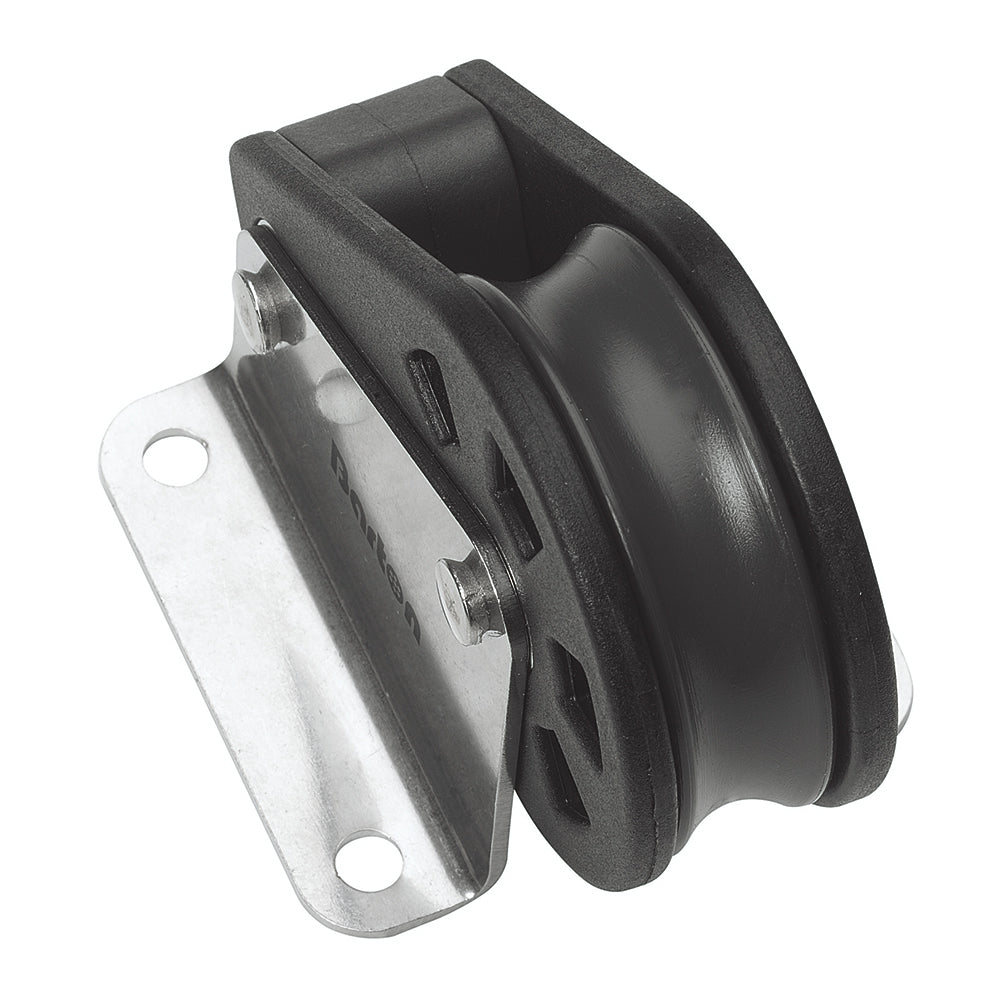

Barton Marine Series 2 Single Upright Block - 35mm (N02150)

SKU: BAM-N02-150  |  Manuf. Code: N02150
$30.95 USD
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  1. We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  2. No auction sites
  3. No unauthorized sellers
  4. Item must be identical, new, and in stock
Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger craft.

A comprehensive range of multiple sheave options, together with fiddles and cam cleat blocks, allows powerful, lightweight tackles to be achieved.

Plain bearing blocks

Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Ball bearing blocks

With our unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter centre boss. This allows us to fit more load-bearing balls, which ensure extremely low friction performance, even under high loads.

Our Part # BAM-N02-150 | Mfr. Part # N02 150

FEATURES

  • Series 2, 35mm sheave.
  • Single upright mounting block.
  • Secure deck or mast attachment.
  • High strength-to-weight ratio.
  • Suitable for larger control lines.

TECHNICAL INFORMATION

DescriptionImperialMetric
Sheave size1 3/8 x 15/32 in35.0 x 12.0 mm
Max Rope diameter5/16 in8.0 mm
Safe working load815.9 lb370.0 kg
Break Load1630.0 lb740.0 kg
Max rolling load573.0 lb260.0 kg
Length2.0 in51.0 mm
Weight Plain2.75 oz78.0 g
Weight Ball2.68 oz76.0 g
