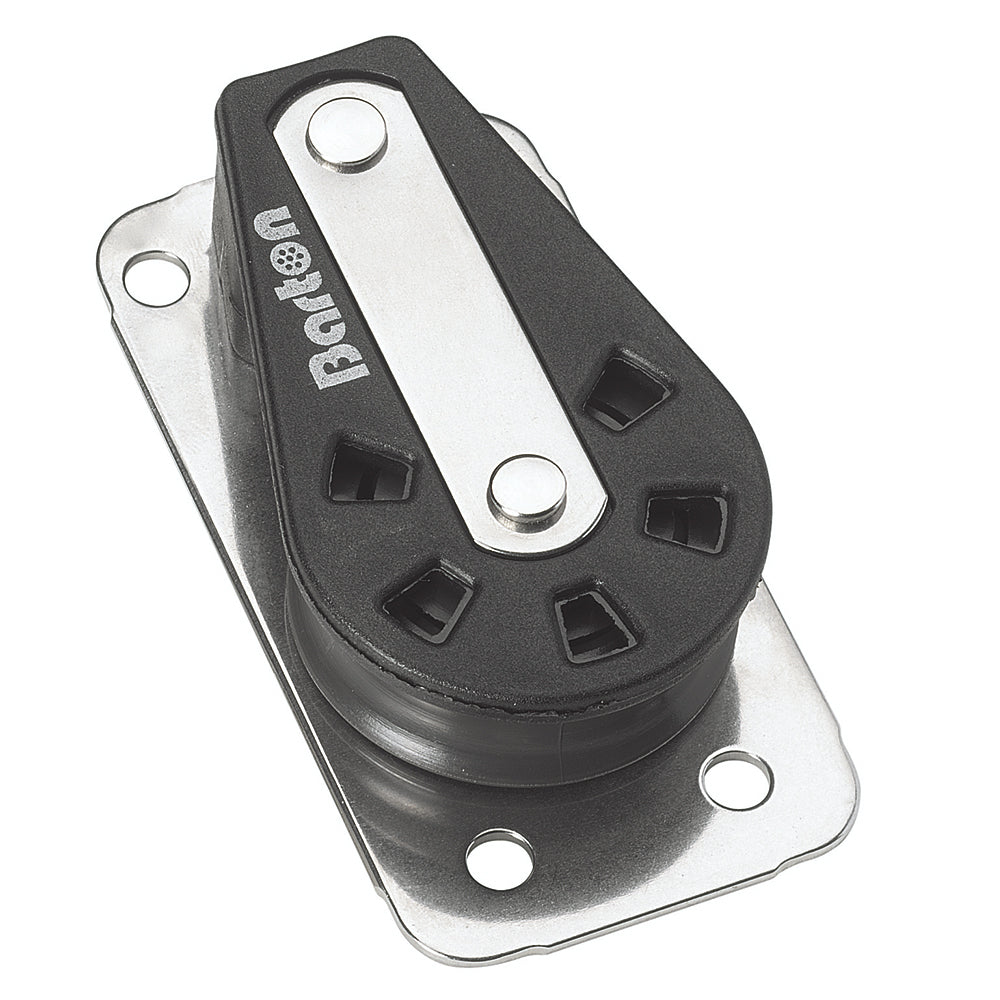

Barton Marine Series 2 Single Cheek Block - 35mm
DESCRIPTION
DESCRIPTION
A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger craft.
A comprehensive range of multiple sheave options, together with fiddles and cam cleat blocks, allows powerful, lightweight tackles to be achieved.
Plain bearing blocks
Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.
Ball bearing blocks
With our unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter centre boss. This allows us to fit more load-bearing balls, which ensure extremely low friction performance, even under high loads.
Our Part # BAM-N02-160 | Mfr. Part # N02 160
FEATURES
FEATURES
- Series 2, 35mm sheave.
- Single cheek block design.
- Flush mounting for clean installation.
- Guides lines smoothly along surfaces.
- Durable, corrosion-resistant construction.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave size | 1 3/8 x 15/32 in | 35.0 x 12.0 mm |
| Max Rope diameter | 5/16 in | 8.0 mm |
| Safe working load | 815.9 lb | 370.0 kg |
| Break Load | 1630.0 lb | 740.0 kg |
| Max rolling load | 573.0 lb | 260.0 kg |
| Length | 3 1/8 in | 80.0 mm |
| Weight Plain | 2.57 oz | 73.0 g |
| Weight Ball | 2.4 oz | 69.0 g |
