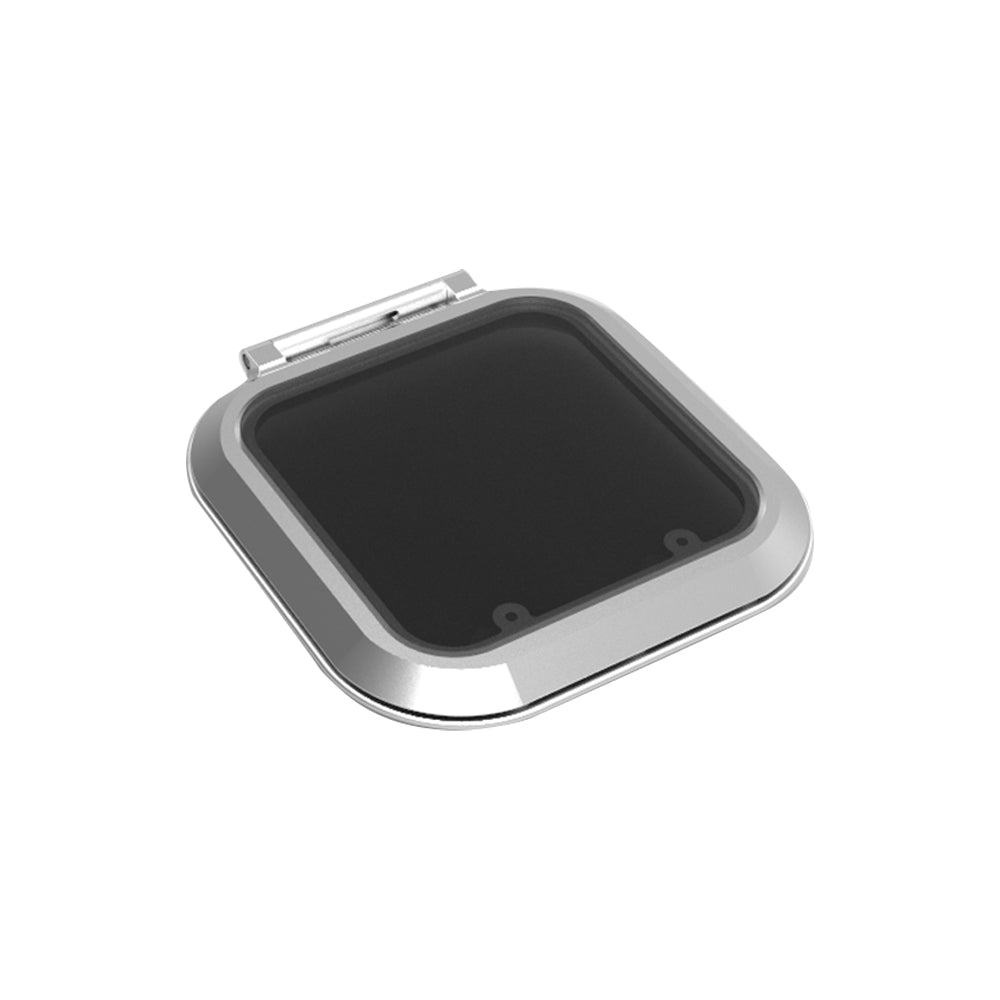

With an aluminium profile and a one-piece aluminium casting lid, the famous Cristal range combines elegant lines and extreme sturdiness.
Available in a wide variety of sizes, it includes small hatches particularly suitable for ventilation purpose, and larger models that make excellent storage lockers.The hinges are equipped with friction, coupled with a compensating spring on large sizes (49.49, 61.61 et 79.79) that allows the lid to be held open in any position up to 90 ° (maximum opening 180 °).
Our Part # GOI-101751 | Mfr. Part # 101751
FEATURES
FEATURES
- Cut-out dimensions: 26.3 x 26.3 cm.
- Durable grey acrylic lid.
- Robust aluminum frame construction.
- Provides ventilation and natural light.
- Watertight seal for marine use.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Weight | 3.97 lb | 1.8 kg |
| Cut-out dimensions | 10 1/3 in X 10 1/3 in | 263.0 x 263.0 mm |
| Overall dimensions | 12 1/8 x 12 5/9 in | 308.0 x 319.0 mm |
| Cut-out radius | 2 1/16 in | 53.0 mm |
| Acrylic thickness | 1/4 in | 6.0 mm |
| Lid height | 29/32 in | 23.0 mm |
| Frame flange | 1/2 in | 12.0 mm |
