Goiot Escape Hatch Size 44C - Cut Out: 47.6 x 47.6 cm (18 3/4 x 18 ...
DESCRIPTION
DESCRIPTION
The Goiot Escape Hatch #121137 is a reliable ventilation product designed for secure and convenient use on your vessel. With its robust construction, it ensures safety while providing essential airflow. This hatch is an ideal choice for those looking to enhance the functionality of their boat without compromising on style.
Benefits
- Equipped with cast aluminum handles for durability
- Includes a locking bar for added security when docking or anchoring
- Offers improved ventilation

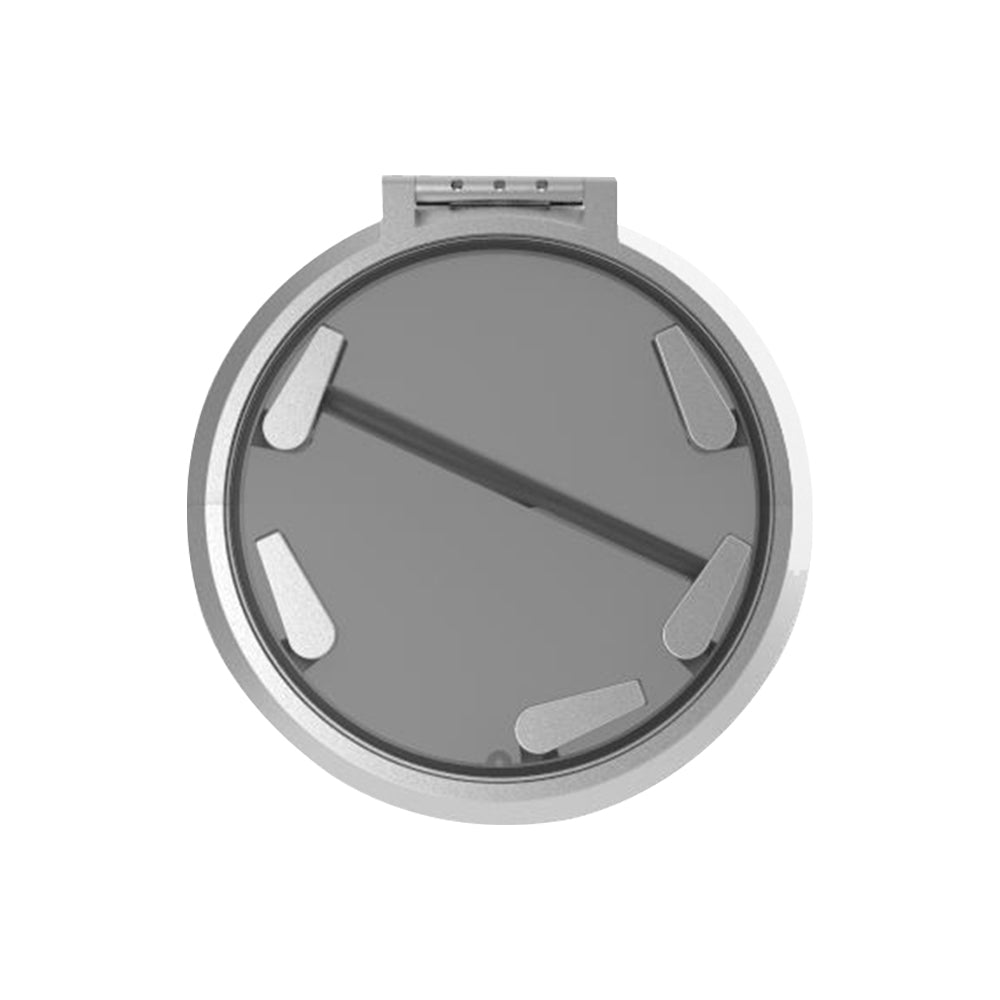

Constructed with a grey acrylic panel and a sturdy aluminum frame, this Cristal 44C escape hatch has a circular cut-out of 476 mm (18 3/4 in) and an overall diameter of 520 mm (20 1/2 in). It's designed to fit seamlessly into sailing vessels, providing an efficient and stylish solution for air circulation and safety on board.
Our Part # GOI-121137 | Mfr. Part # 121137
FEATURES
FEATURES
- One-piece cast aluminum handles and opening lid
- Supplied as standard with grey acrylic
- Locking bar prevents external access while moored; remove the bar while sailing
- Mount on a flat surface with a tolerance of ± 0.5 mm
- Approved for installation in areas I, II, III and IV
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Weight | 12.8 lb | 5.8 kg |
| Cut-out dimensions | 18 3/4 in | Ø476.0 mm |
| Overall dimensions | 20 1/2 in | Ø52.0 cm |
| Cut-out radius | 2 1/16 in | 52.0 mm |
| Acrylic thickness | 1/2 in | 12.0 mm |
| Lid height | 1 3/32 in | 28.0 mm |
| Frame flange | 1/2 in | 12.0 mm |
