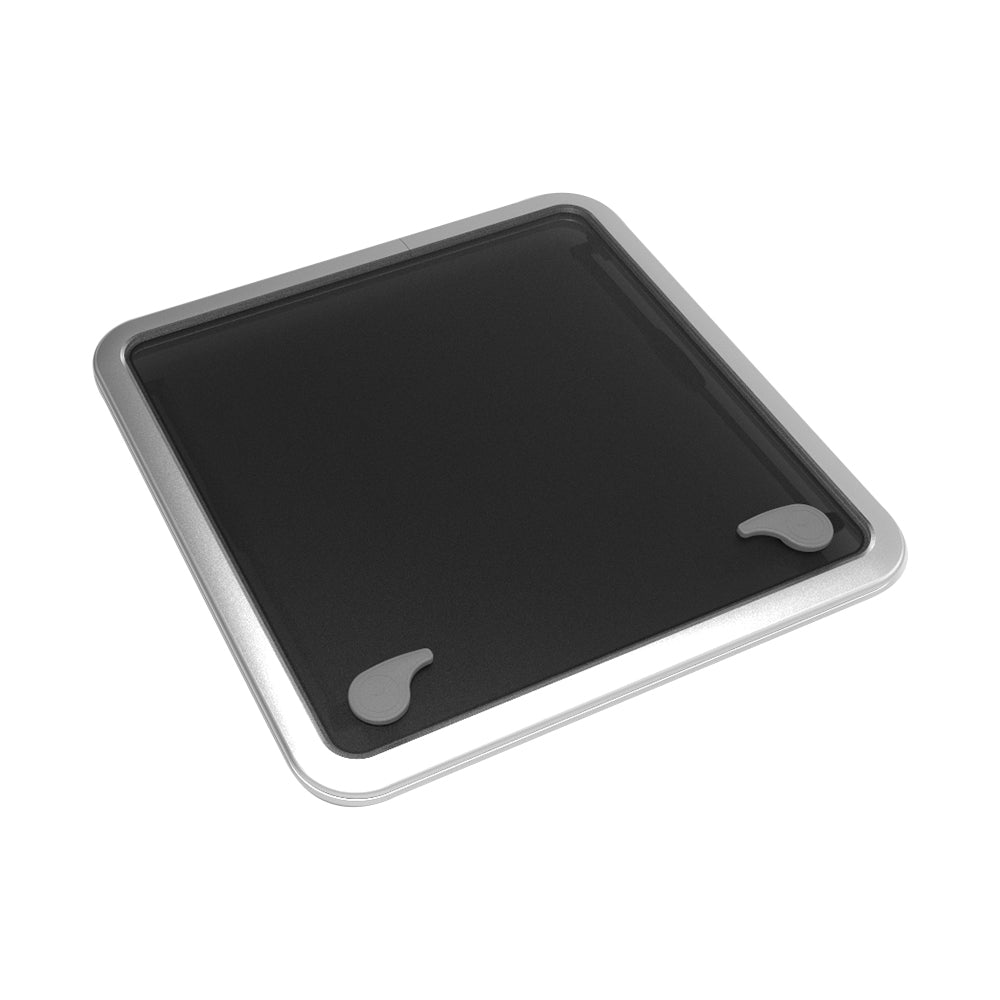

Goiot Opal Hatch Size T60 - Cut Out: 50.7 x 50.7 cm (19 15/16 x 19 15/16 in) - Grey Acrylic / Aluminum Frame (116030)

SKU: GOI-116030  |  Manuf. Code: 116030
$479.90 USD
Ships from France.

Description

The Goiot Opal Hatches #116030 is a solid choice for sailors looking for reliability and ease of installation. Its sleek design and impressive watertightness make it a favorite among boating enthusiasts. With ergonomic handles ensuring easy grip, this hatch is both functional and stylish.

Benefits

  • Invisible aluminum hinges for a clean look
  • One-piece aluminum lid for enhanced rigidity
  • Low profile height for discreet installation on teak decks
  • Double contact seal system for superior watertightness
  • Angled frame for efficient water drainage
  • Lock catch to enhance security

Crafted from durable aluminum, this hatch measures 22 3/32 x 22 3/32 inches (561 x 561 mm), fitting common standards used on large series boats. The ergonomic handles provide a comfortable grip, and the double contact seal system ensures the ultimate watertightness, while the angled frame design efficiently drains water away when opened. Compatible with all major sailing gear, it's a dependable addition to your vessel.

Features

  • All models are equipped with adjustable stay up from 0 to +/- 120° (depending on model). Possibility to open to 180° by removing stay screw
  • Supplied as standard with a gray acrylic
  • Telescopic stay
  • Mounting on a flat surface with a ± 0.5 mm tolerance
  • Approved in areas IIa, III and IV
  • Available options: ventilator, lock, gas jack, aluminium sheet metal panel, black colour depending on the size, special dimensions

Technical Information

DescriptionImperialMetric
Weight17.41 lb7.9 kg
Cut-out dimensions20.0 x 20.0 in507.0 x 507.0 mm
Overall dimensions22.0 x 22.0 in561.0 x 561.0 mm
Cut-out radius1 2/3 in42.5 mm
Acrylic thickness3/8 in10.0 mm
Lid height1 1/7 in29.0 mm
Frame flange19/32 in15.0 mm
