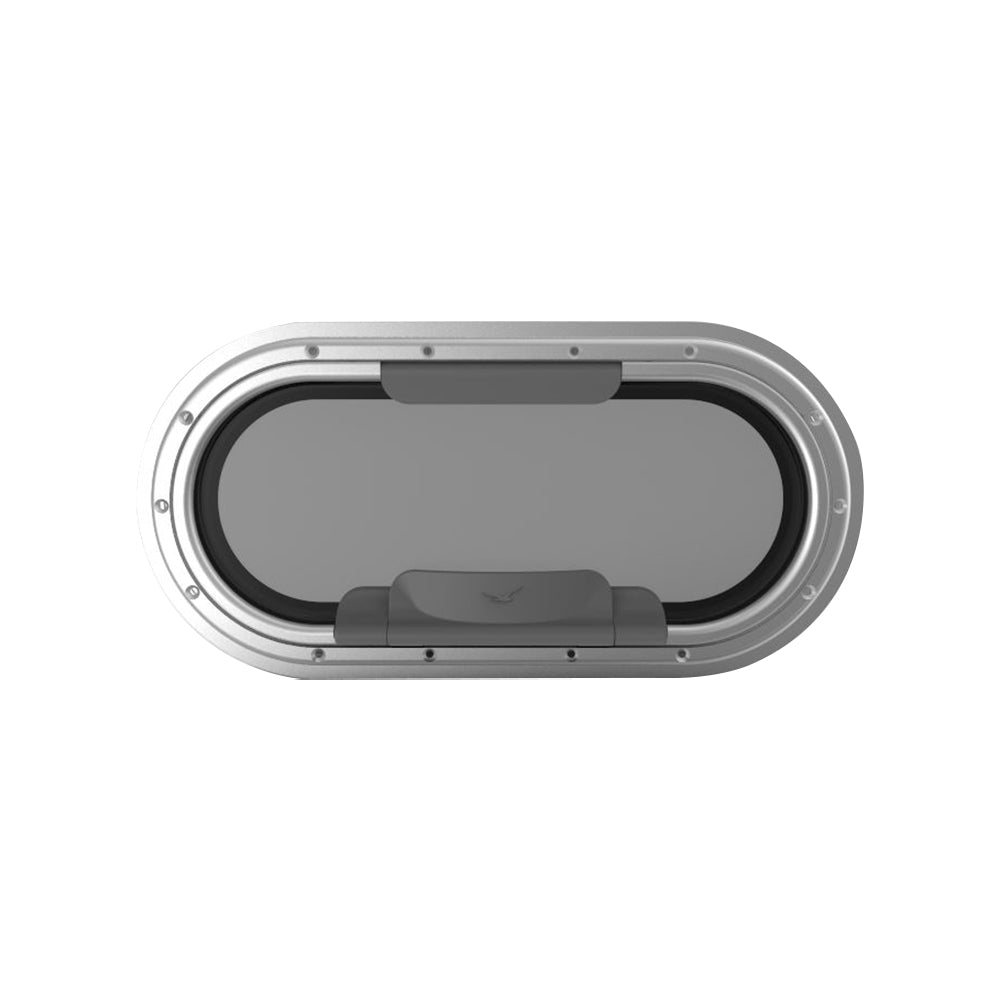

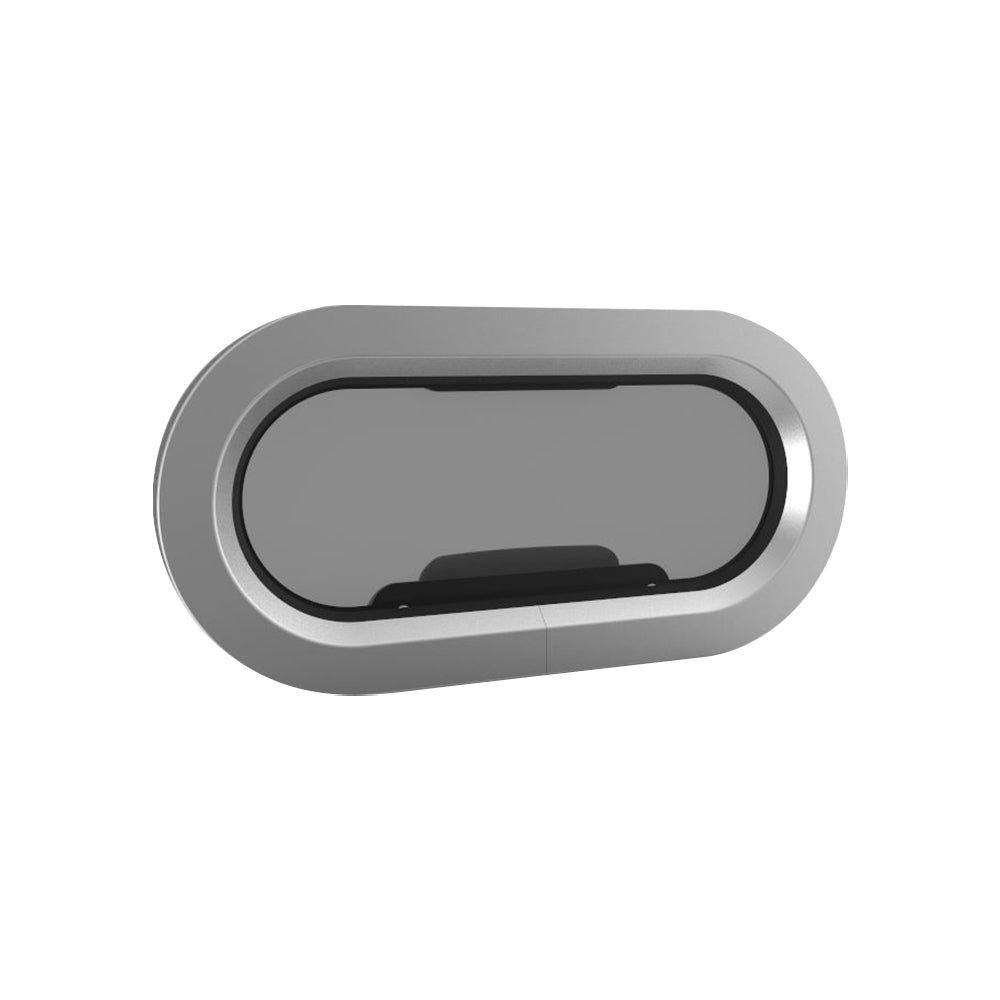

Goiot Opal Portlight Size T32 - Cut Out: 17.5 x 37.5 cm (6 7/8 x 14 3/4 in) - Clear Acrylic / Silver Frame

SKU: GOI-117998  |  Manuf. Code: 117998
$260.00 USD
Note: This is a semi-custom product. Ships from France. Minimum production time 5 to 6 weeks. Non-returnable. By placing your order, you accept these terms.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

The Opal range is distinguished by its unique technical advantages:

  • Monobloc frame with strong section.
  • Reversible counter-frame allowing to cover a large wall thickness from 5 to 33 mm.
  • Optimum visibility thanks to the handle set back from acrylic.

The Opal portlight is equipped with friction adjustable hinges. The 46° inclination of the frame ensures the evacuation of the water to the outside, allowing mounting on an inclined roof.

A unique ergonomic handle allows you to the opening with only one hand. It distributes the pressure all around the seal, guaranteeing thus a optimal sealing.

The watertightness is ensured by a lip seal. Its particular shape allows assembly in the frame, without bonding.

Our Part # GOI-117998 | Mfr. Part # 117998

FEATURES

  • Clear acrylic pane for ample light.
  • Robust silver frame construction.
  • Cut-out dimensions: 17.5 x 37.5 cm.
  • Goiot Opal series portlight.

TECHNICAL INFORMATION
DescriptionImperialMetric
Wall thickness1/5 - 1 2/7 in5.0 - 33.0 mm
Weight4.41 lb2.0 kg
Cut-out dimensions14 3/4 x 6 8/9 in375.0 x 175.0 mm
Overall dimensions15 5/8 x 7 3/4 in397.0 x 197.0 mm
Cut-out radius 3 4/9 in87.5 mm
Acrylic thickness3/8 in10.0 mm
