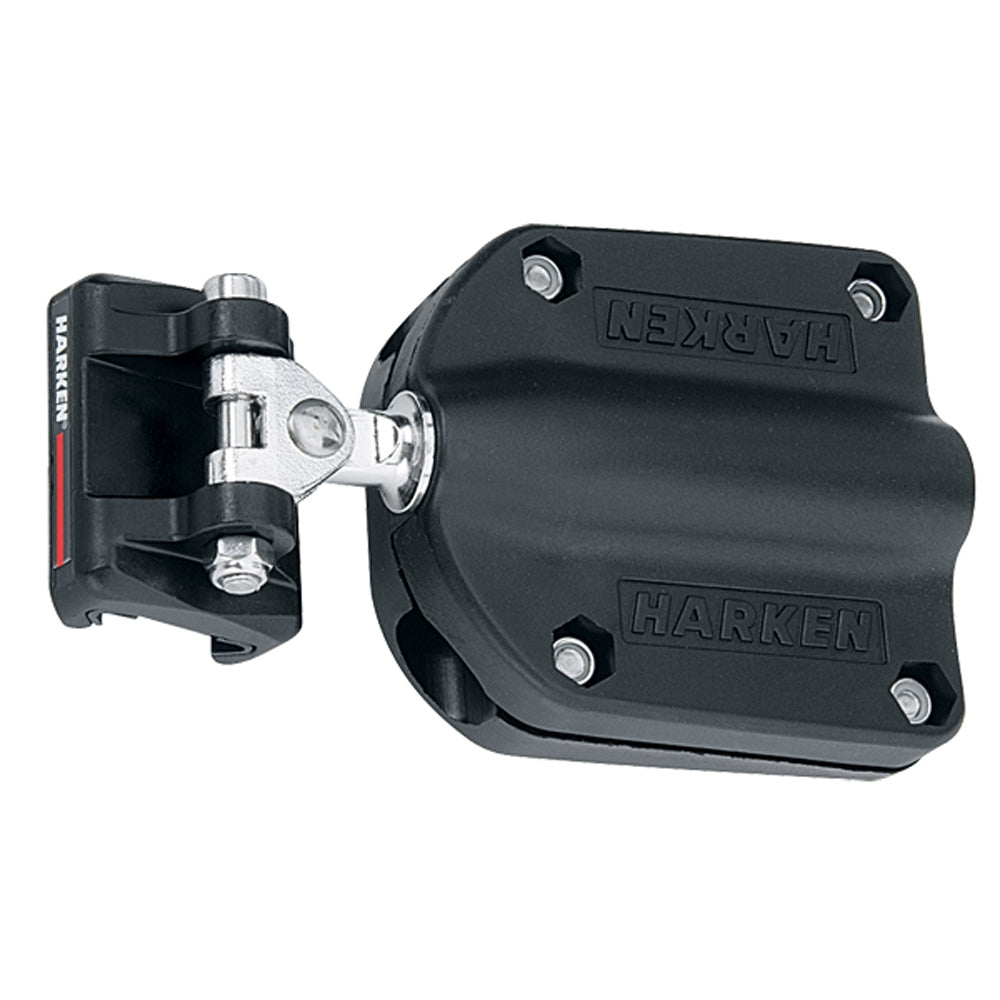

Harken Batten Car Receptacle - Battcar Slider - For Battcar System: 0.87 in (22 mm) - Dia: 0.63 in (16 mm) (3803)
Harken Batten Car Receptacle - Battcar Slider - For Battcar System: 0.87 in (22 mm) - Dia: 0.63 in (16 mm) (3803) is backordered and will ship as soon as it is back in stock.
Description
Description
A Harken® Battcar system along with full-length battens helps raise, douse, and reef with ease and acts as extra crew if youe sailing shorthanded. Battcar systems outperform in-mast or in-boom furling, cost less, and you don need to recut your sail. Slider Battcars offer a lightweight, cost effective way to raise, reef, and douse mainsails. Hardcoat-anodized aluminum cars slide on low-friction plastic inserts. The compact car size translates into reduced weight and stack height.
Our Part # HAR3803 | Mfr. Part # 3803
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Length | 1 3/4 in | 44 mm |
| Width | 1 3/8 in | 35 mm |
| Weight | 6.38 oz | 181 g |
| Maximum working load | 350 lb | 159 kg |
| A | 1 3/4 in | 44 mm |
| B | 1 1/16 in | 27 mm |
| C | 2 1/8 in | 54 mm |
| D | 5 1/8 in | 13 cm |
| E | 3/16 in | 5 mm |
| Maximum sail area - Monohull | 600 ft² | 56 m² |
| Maximum sail area - Multihull | 500 ft² | 46 m² |
| Maximum Batten Width | 1 5/8 in | 41 mm |
| Maximum Batten Ø | 5/8 in | 16 mm |
| Batten Shape | Flat/Round | |
