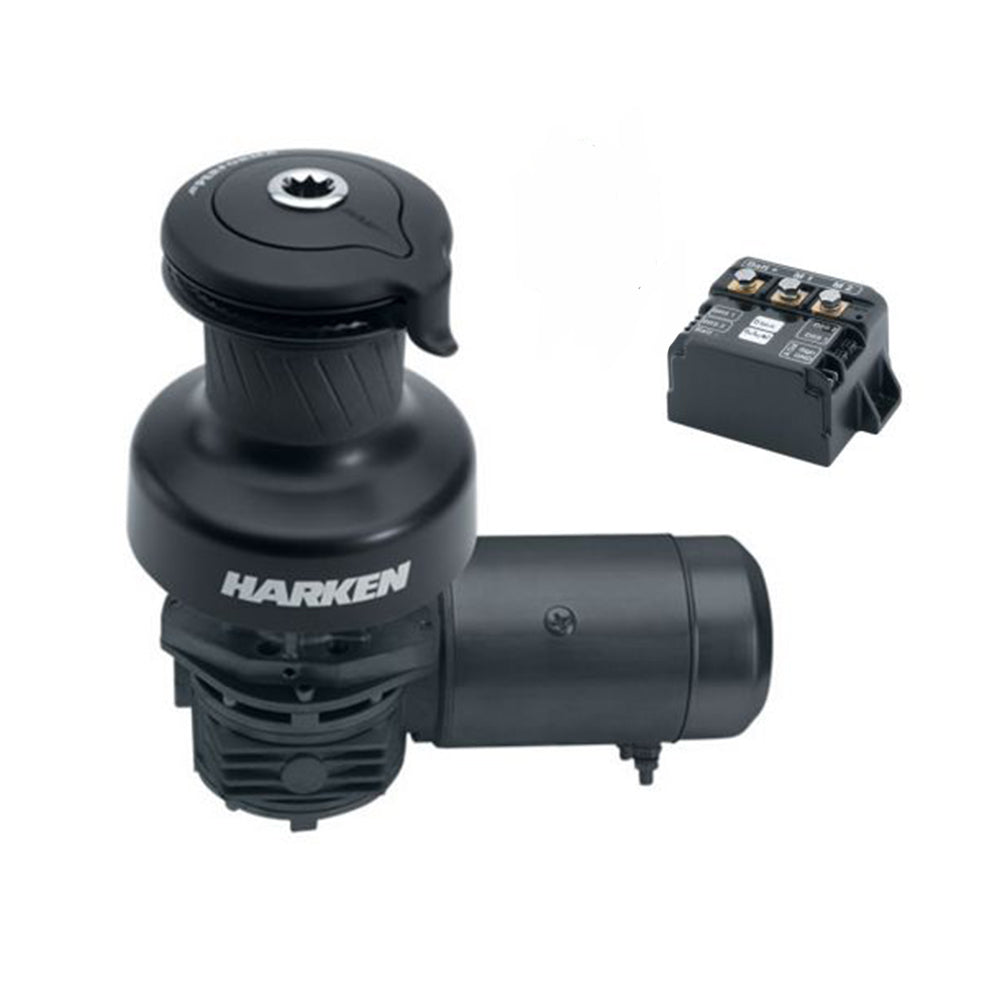

Harken Electric Winch Performa Size 40 - 24V / Aluminum Black / Two Speed / Right Mount (40.2STEP24H)
Harken Electric Winch Performa Size 40 - 24V / Aluminum Black / Two Speed / Right Mount (40.2STEP24H) is backordered and will ship as soon as it is back in stock.
Description
Description

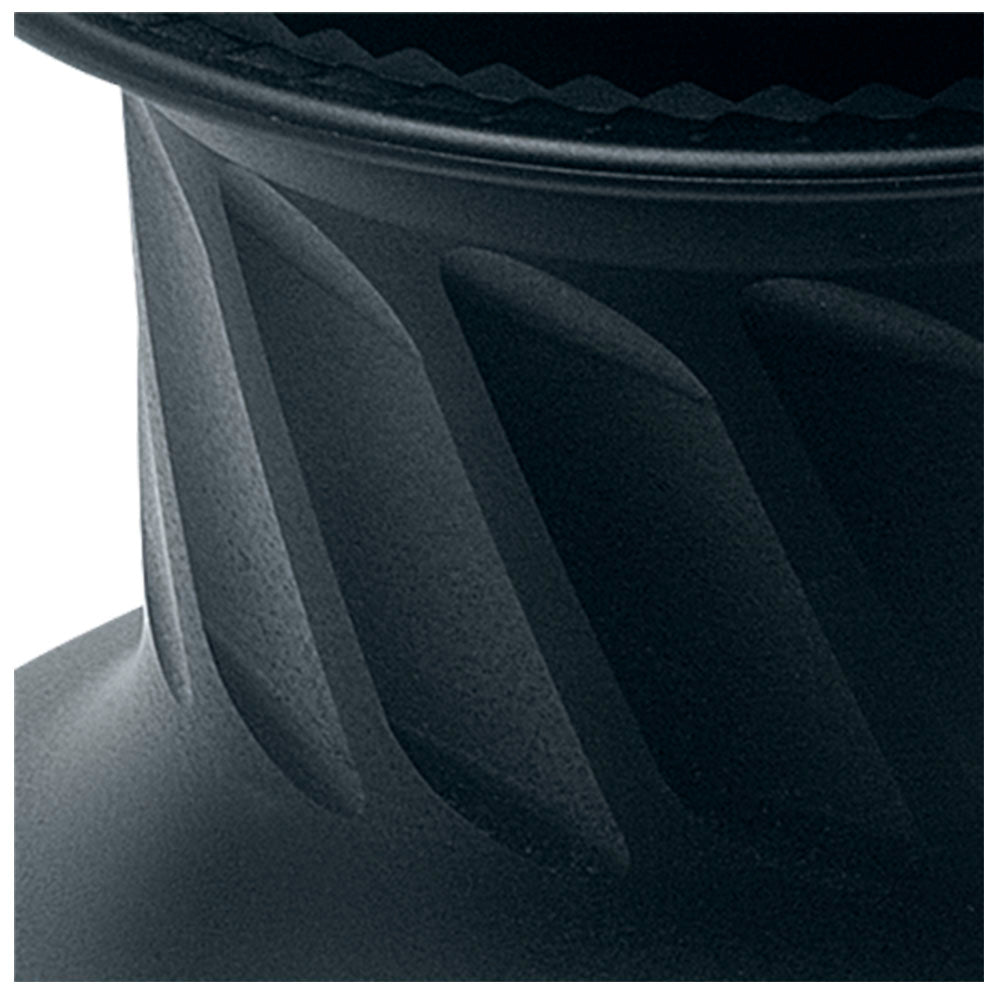

All Performa winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Electric Performa winches let you trim any size sail with the push of a button.
Our Part # HAR402STEP24H | Mfr. Part # 40.2STEP24H
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Maximum Line Ø | 1/2 in | 12 mm |
Minimum Line Ø | 5/16 in | 8 mm |
Number of Fasteners | 5 | |
Fastener Circle | 4 7/8 in | 123 mm |
Speed | 2 | |
Drum Ø | 3 1/8 in | 80 mm |
Base Ø | 6 3/16 in | 157 mm |
Gear Ratio - 1 | 2.13 | |
Gear Ratio - 2 | 6.28 | |
Power Ratio - 1 | 13.5 | |
Power Ratio - 2 | 39.9 | |
Racing Disconnect Rod | B40PDR |
