DESCRIPTION
DESCRIPTION

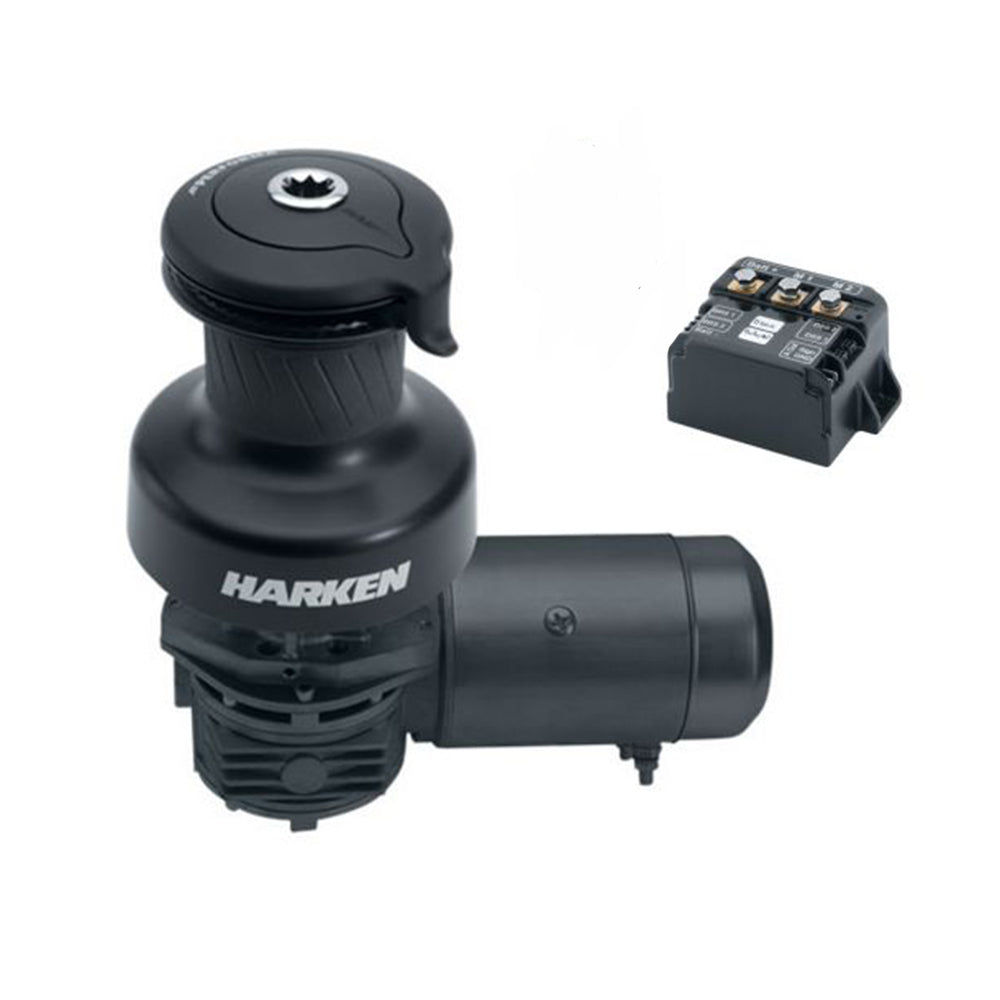

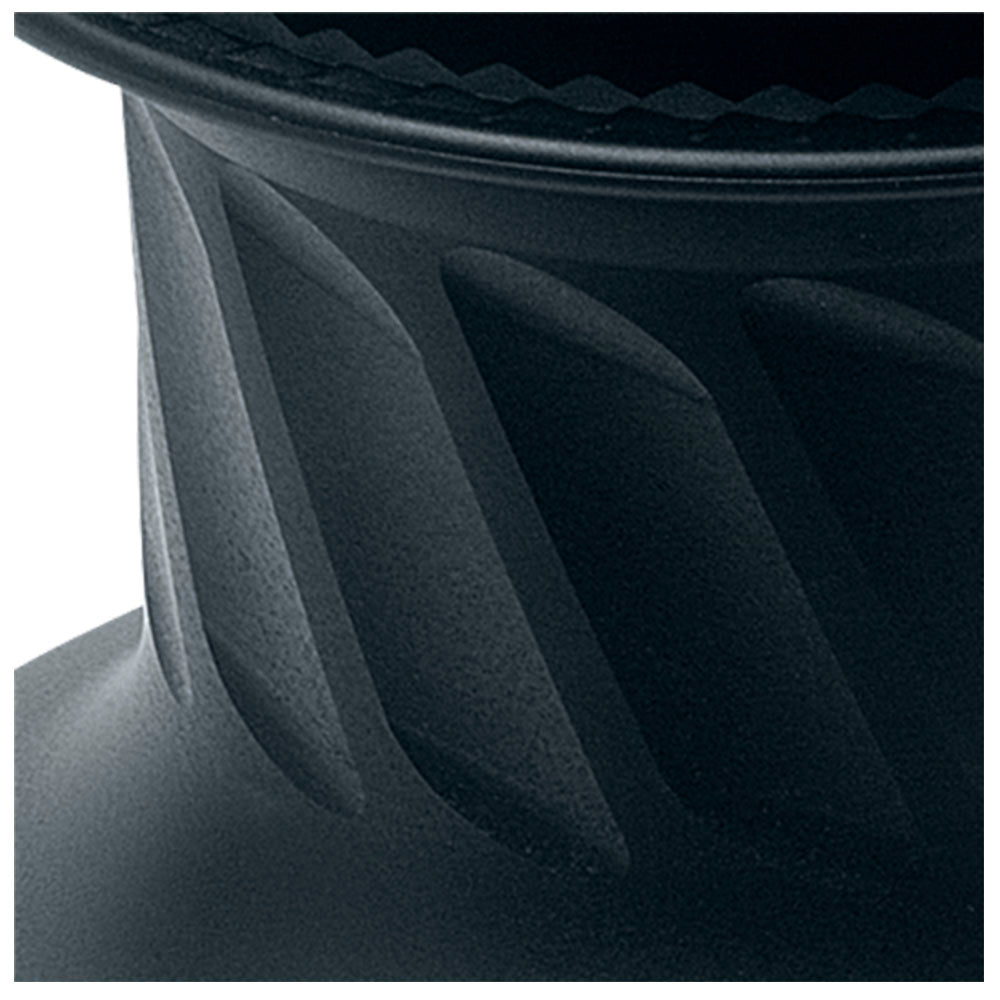

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Electric Performa winches let you trim any size sail with the push of a button.
Our Part # HAR462STEP24H | Mfr. Part # 46.2STEP24H
FEATURES
FEATURES
- Electric power for high-performance sailing.
- Robust aluminum black finish.
- Two-speed system for precise handling.
- Designed for 24V marine electrical systems.
- Right-hand mount for specific deck configurations.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Height | 7 15/16 in | 20 cm |
| Weight | 11.5 lb | 5.2 kg |
| Maximum Line Ø | 9/16 in | 14 mm |
| Minimum Line Ø | 5/16 in | 8 mm |
| Number of Fasteners | 5 | |
| Fasteners | 5/16 SH in | M8 SH mm |
| Fastener Circle | 5 7/8 in | 15 cm |
| Configuration | Self-tailing | |
| Speed | 2 | |
| Drum Ø | 3 15/16 in | 10 cm |
| Base Ø | 7 1/4 in | 18 cm |
| Weight of Winch and Motor | 32.8 lb | 14.9 kg |
| Motor Weight | 21.3 lb | 9.7 kg |
| Line Entry Height | 3 9/16 in | 90 mm |
| Gear Ratio - 1 | 2.3 | |
| Gear Ratio - 2 | 9.2 | |
| Power Ratio - 1 | 11.7 | |
| Power Ratio - 2 | 46.5 | |
| Racing Disconnect Rod | B46PDR | |
| E | 1 3/4 in | 43 mm |
| F | 6 1/8 in | 155 mm |
| G | 8 7/8 in | 227 mm |
