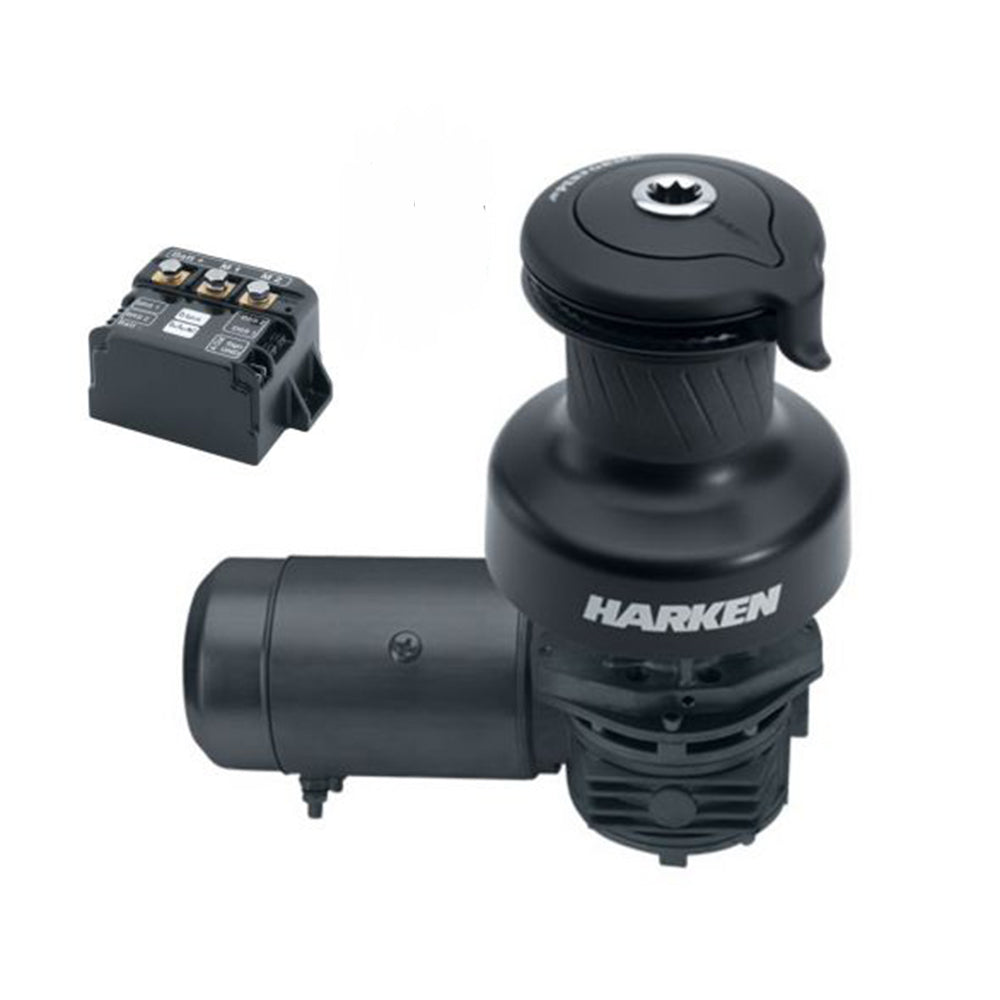

Harken Electric Winch Performa Size 50 - 12V / Aluminum Black / Two Speed / Left Mount (50.2STEP12HLM)
Harken Electric Winch Performa Size 50 - 12V / Aluminum Black / Two Speed / Left Mount (50.2STEP12HLM) is backordered and will ship as soon as it is back in stock.
Description
Description
All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Our Part # HAR502STEP12HLM | Mfr. Part # 50.2STEP12HLM
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Configuration | Self-tailing | |
Speed | 2 | |
Drum Ø | 4 5/16 in | 110 mm |
Base Ø | 7 11/16 in | 195 mm |
Height | 8 5/16 in | 212 mm |
Weight | 6.0 lb | 13.2 kg |
Line Entry Height | 3 13/16 in | 97 mm |
Minimum Line Ø | 5/16 in | 8 mm |
Maximum Line Ø | 9/16 in | 14 mm |
Fastener Circle | 5 7/8 in | 15 cm |
Fasteners | 5/16 SH in | M8 SH mm |
Number of Fasteners | 5 | |
Gear Ratio - 1 | 2.4 | |
Gear Ratio - 2 | 10.9 | |
Power Ratio - 1 | 11.1 | |
Power Ratio - 2 | 50.4 | |
Racing Disconnect Rod | B50PDR |
