DESCRIPTION
DESCRIPTION

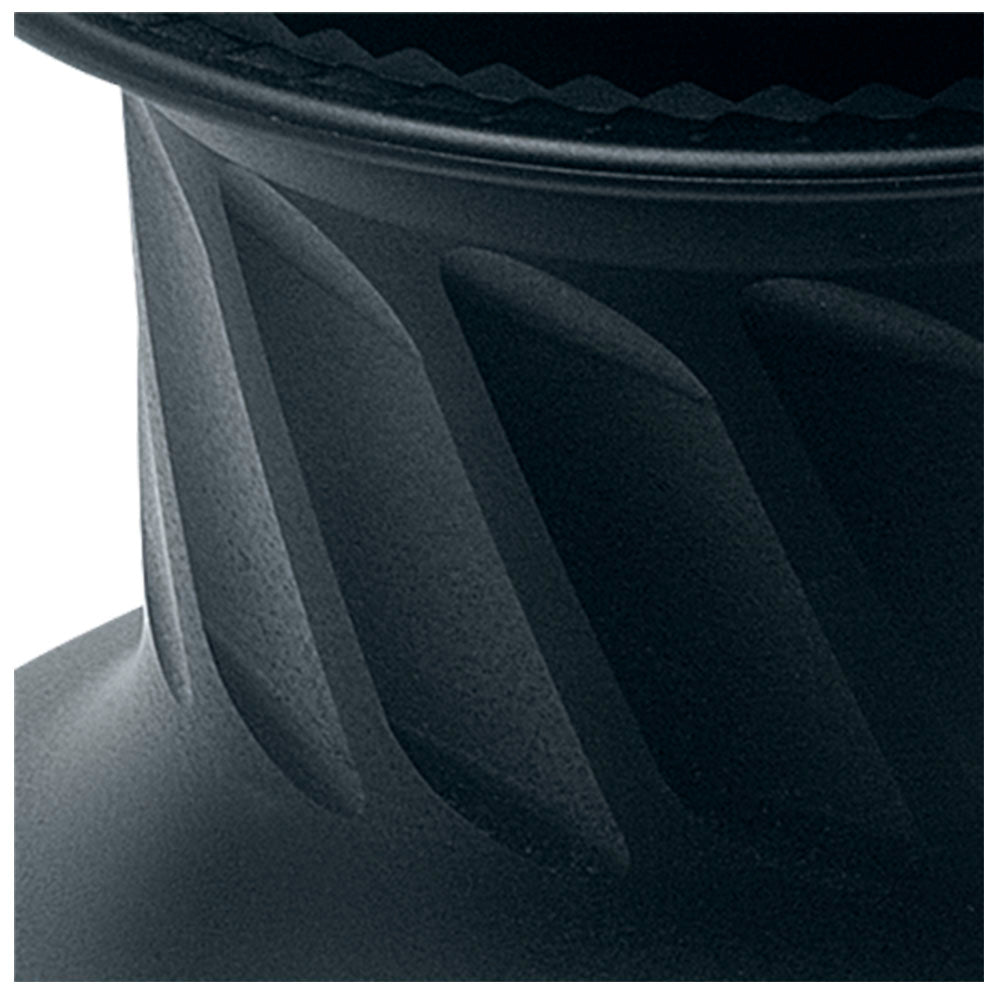

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Electric Performa winches let you trim any size sail with the push of a button.
Our Part # HAR602STEP12HLM | Mfr. Part # 60.2STEP12HLM
FEATURES
FEATURES

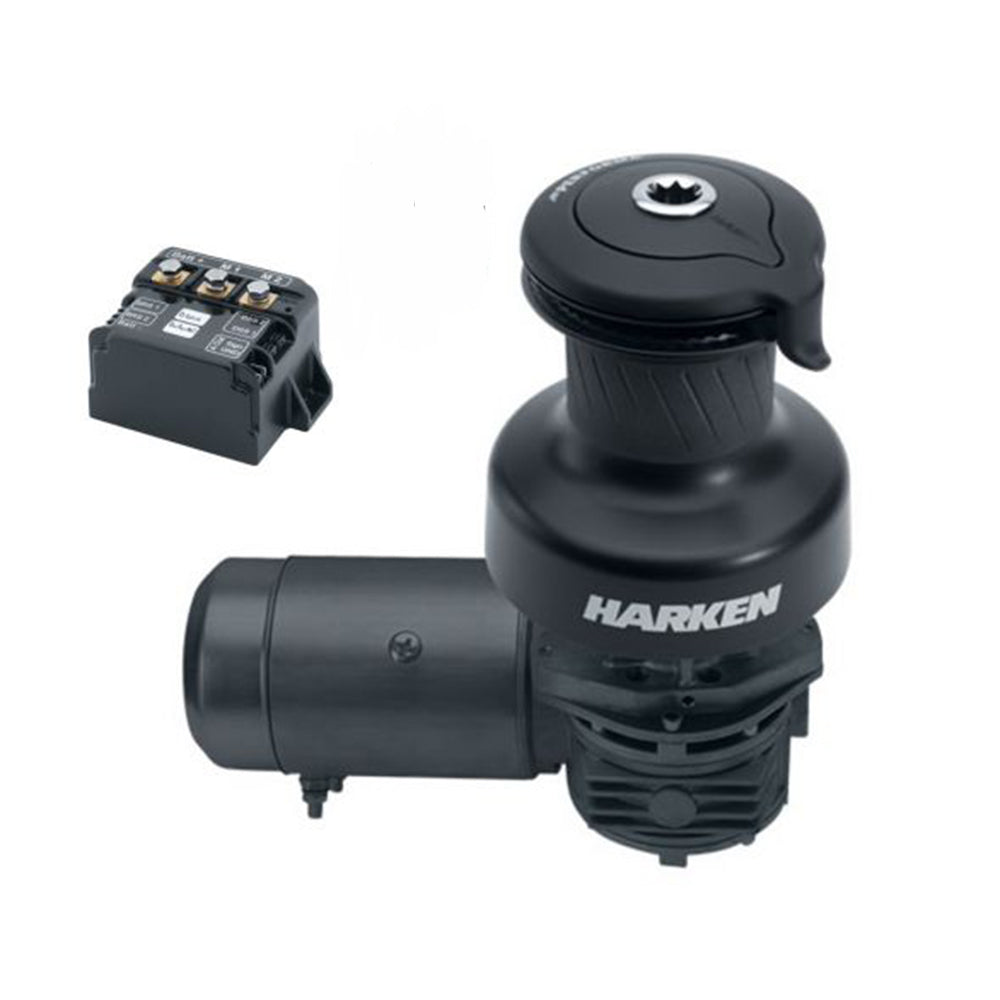

- Harken Performa series electric winch.
- Size 60, 12V DC power.
- Lightweight aluminum black finish.
- Two-speed operation.
- Left-hand mounting.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Configuration | Self-tailing | |
| Speed | 2 | |
| Drum Ø | 4 3/4 in | 12 cm |
| Base Ø | 9 5/16 in | 236 mm |
| Line Entry Height | 4 9/16 in | 116 mm |
| Minimum Line Ø | 5/16 in | 8 mm |
| Maximum Line Ø | 5/8 in | 16 mm |
| Fastener Circle | 8 in | 204 mm |
| Fasteners | 5/16 SH in | M8 SH mm |
| Number of Fasteners | 6 | |
| Racing Disconnect Rod | B60PDR | |
