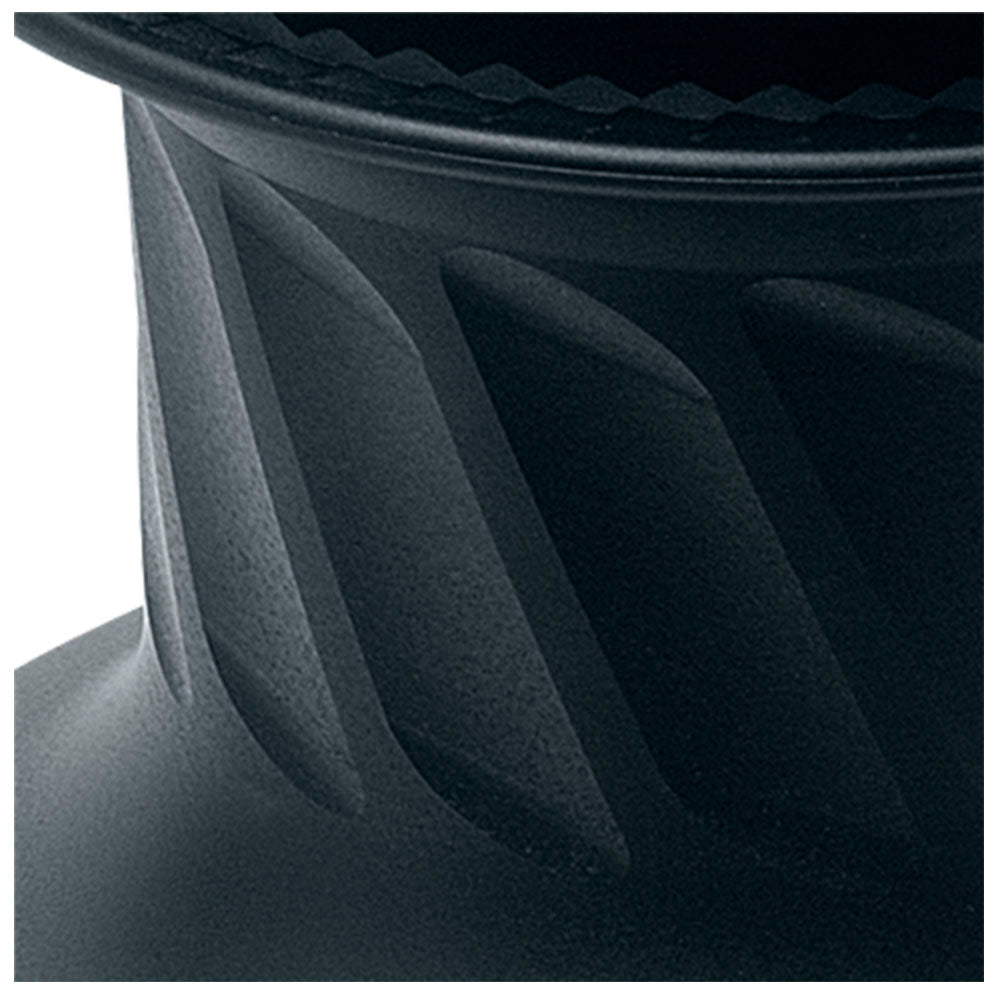

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Electric Performa winches let you trim any size sail with the push of a button.

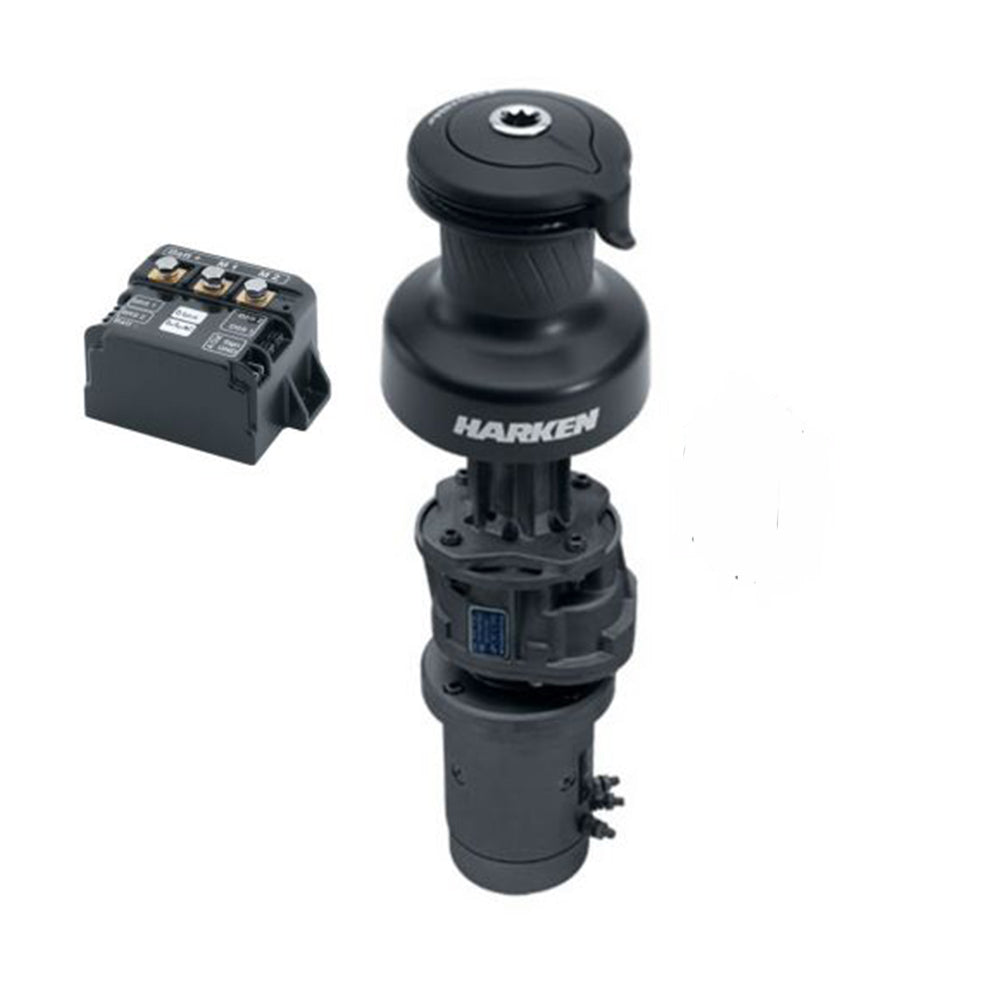

Our Part # HAR603STEP24V | Mfr. Part # 60.3STEP24V
FEATURES
FEATURES
- 24V electric motor for efficient operation.
- Three-speed gearing for versatile control.
- Robust aluminum construction, black finish.
- Performa series for high-performance sailing.
- Vertical mount for easy installation.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Configuration | Self-tailing | |
| Speed | 3 | |
| Drum Ø | 4 3/4 in | 12 cm |
| Base Ø | 9 5/16 in | 236 mm |
| Line Entry Height | 4 9/16 in | 116 mm |
| Minimum Line Ø | 5/16 in | 8 mm |
| Maximum Line Ø | 5/8 in | 16 mm |
| Fastener Circle | 8 in | 204 mm |
| Fasteners | 5/16 SH in | M8 SH mm |
| Number of Fasteners | 6 | |
| Racing Disconnect Rod | B60.3PDR | |
