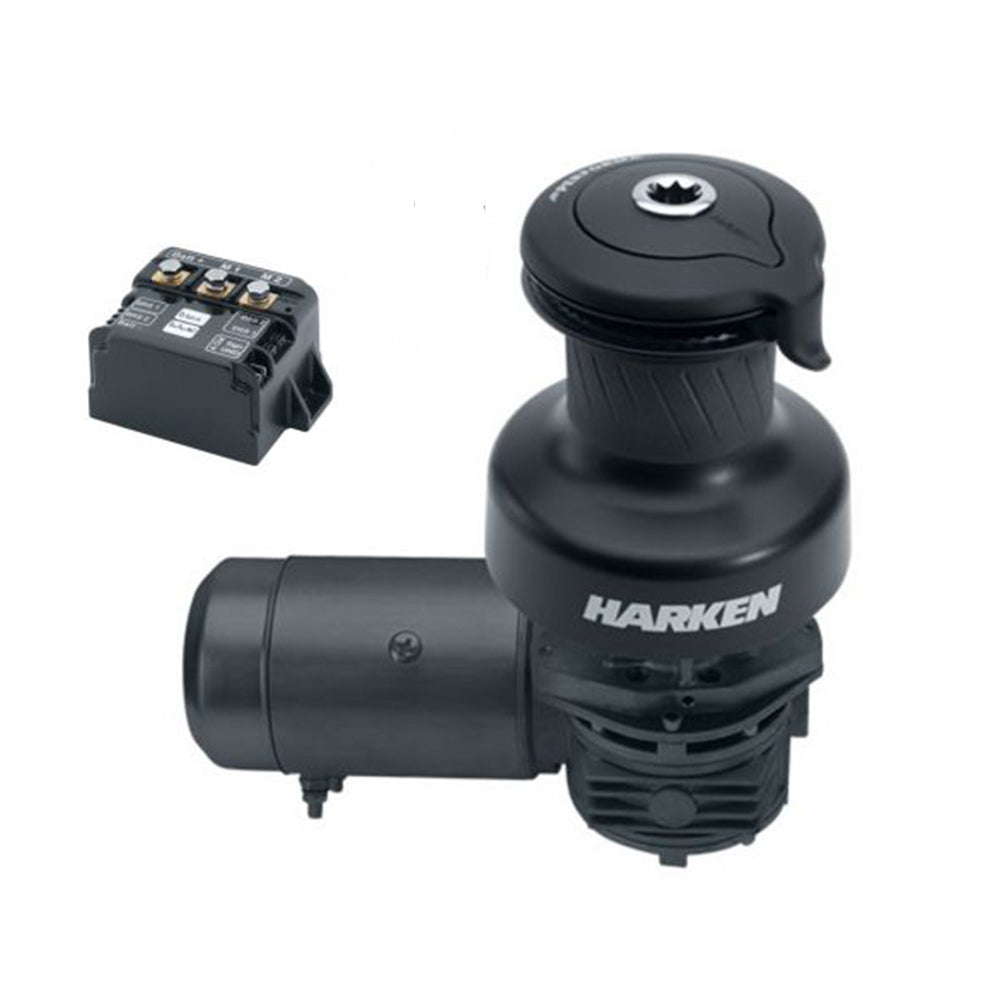

Harken Electric Winch Performa Size 70 - 12V / Aluminum Black / Three Speed / Left Mount (70.3STEP12HLM)
Harken Electric Winch Performa Size 70 - 12V / Aluminum Black / Three Speed / Left Mount (70.3STEP12HLM) is backordered and will ship as soon as it is back in stock.
Description
Description
All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Electric Performa winches let you trim any size sail with the push of a button.
Our Part # HAR703STEP12HLM | Mfr. Part # 70.3STEP12HLM
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Configuration | Self-tailing | |
Speed | 3 | |
Drum Diameter | 5 1/8 in | 13 cm |
Base Diameter | 9 7/16 in | 24 cm |
Height | 13/8 in | 264 mm |
Weight | 28.3 lb | 12.8 kg |
Line Entry Height | 4 1/2 in | 12 cm |
Minimum Line Diameter | 3/8 in | 10 mm |
Maximum Line Diameter | 5/8 in | 16 mm |
Fastener Circle | 8 1/8 in | 21 cm |
Number of Fasteners | 6 | |
Fasteners | 5/16 SH in | M8 SH mm |
Gear Ratio - 1 | 2.3 | |
Gear Ratio - 2 | 5.7 | |
Gear Ratio - 3 | 18.5 | |
Power Ratio - 1 | 9 | |
Power Ratio - 2 | 22.2 | |
Power Ratio - 3 | 72 | |
E | 2 3/4 in | 69 mm |
F | 7 1/8 in | 181 mm |
G | 9 5/8 in | 244 mm |
