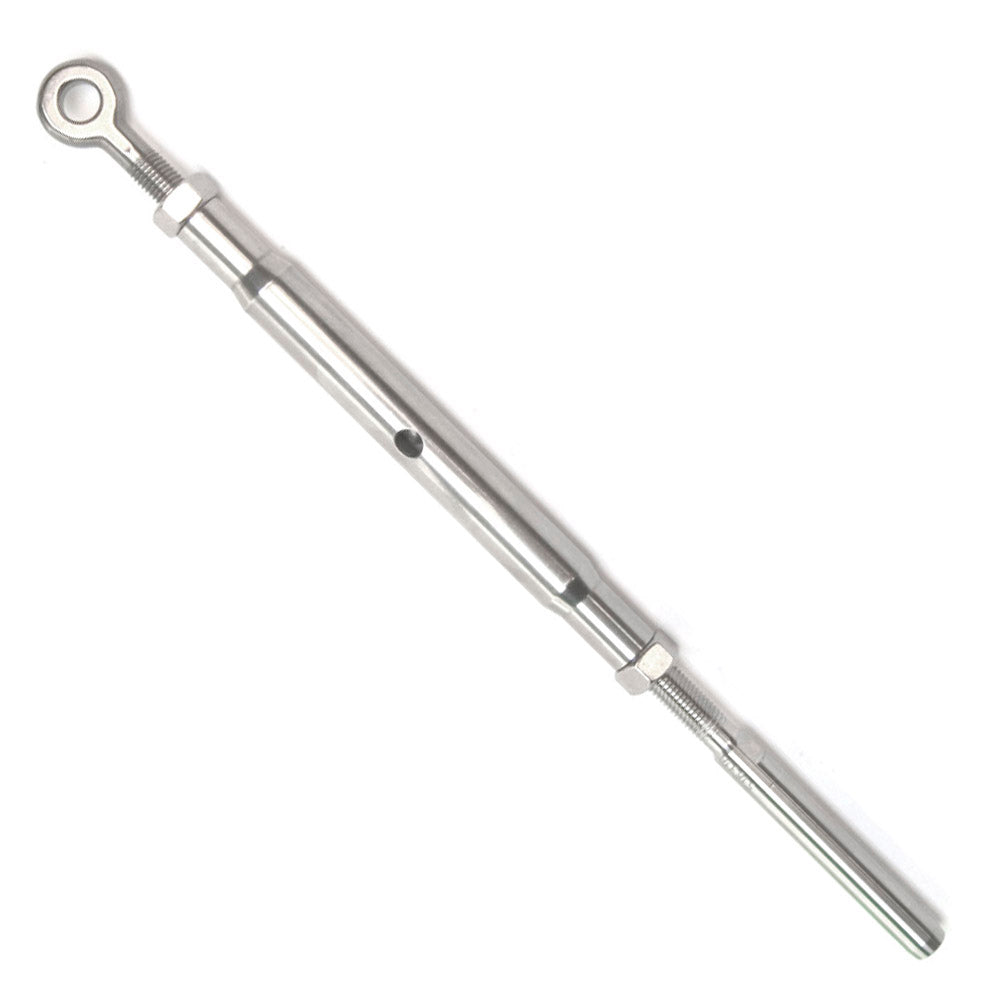

Hayn Standing Rigging - Eye to Swage - (Closed Body) - Wire: 12.0 mm & Eye: 3/4 in (19.0 mm)

SKU: HAY34TTSM12E  |  Manuf. Code: 34TTSM12E
List Price:  $788.47 USD
$565.00 USD
28% off List Price. You save $223.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Closed style turnbuckle bodies crafted from 316 grade stainless steel with 316 grade stainless steel end fitting(s). Assemblies complete with stainless steel locking nuts while all swage style end fittings are standard with "swageline" depth indicator, wrench flats, and size identification.

Our Part # HAY34TTSM12E | Mfr. Part # 34TTSM12E

FEATURES

  • Robust closed body design.
  • Eye to swage terminal.
  • For 12.0 mm wire applications.
  • Features a 3/4 inch (19.0 mm) eye.
  • Ensures strong rigging connections.

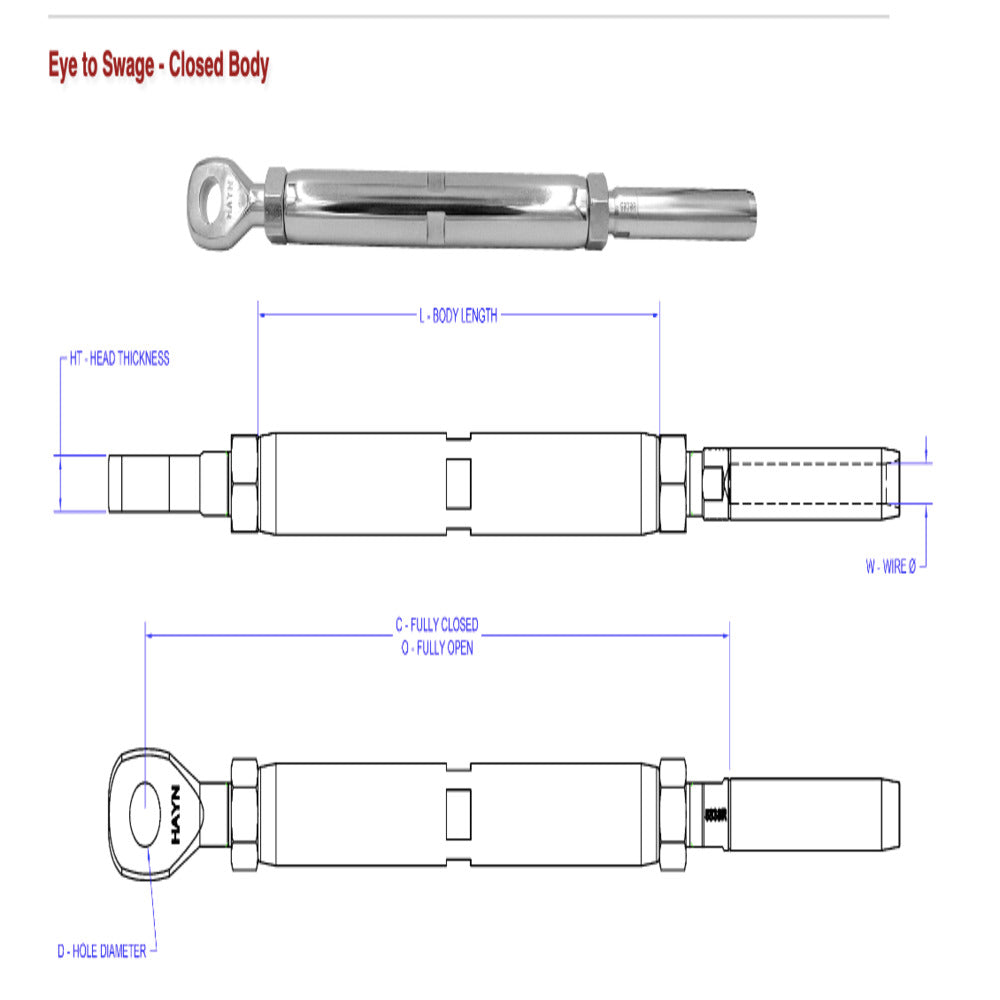

TECHNICAL INFORMATION

DescriptionImperialMetric
Wire 1/2 in.12.00 mm.
Thread3/4-163/4-16
D-Hole3/4 in.19.00 mm.
O-Open L1'8 - 1/8''
C-Closed L1'2 - 1/8''
L-Body9 3/4 in.247.70 mm.
HT-Head Thickness23/32 in.18.30 mm.
Weight3.74 lb.1.70 kg.
