DESCRIPTION
DESCRIPTION

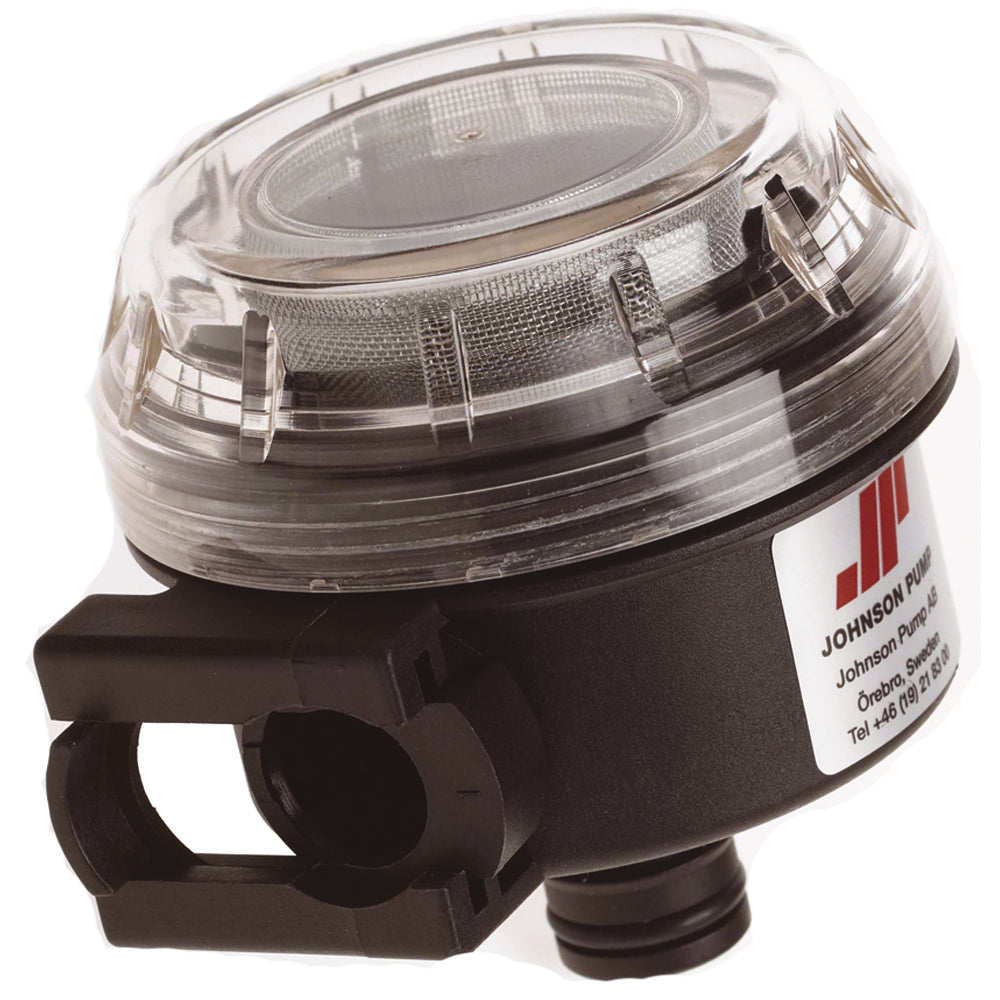

The PUMProtector'¢ inlet and universal strainers feature transparent covers for simple inspection, a wide variety of KlickTite'¢ port connectors for simple installation and removal, and high quality materials for simple maintenance. The connectors make it possible to remove the entire unit for thorough cleaning wherever it's most convenient.
Materials:
- Strainer - Polyamide 66, black
- Cover - Acrylic, clear, 01-36012 P02
- Screen - Stainless steel, 40 mesh
- O-rings - Silicone and EPDM
Our Part # JPU-09-24653-02-CN | Johnson Pump Part # 09-24653-02-CN
FEATURES
FEATURES
- Protects pump from debris.
- Features a fine 40 mesh screen.
- Durable plastic construction.
- Easy to clean and maintain.
- Ensures smooth water flow.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Diameter | 3 1/8 in. | 80.00 mm. |
| Height | 2 3/8 in. | 60.00 mm. |
| Weight | 0.33 lb. | 0.15 kg. |
| Mesh size | 40.00 | 40.00 |
| Max Liquid Temp. | + 120.00 °F | + 50.00 °C |
| Max Temp. for Drinking Water | + 85.00 °F | + 30.00 °C |
| KlickTite⢠Connector | 1.00 x 1/2 in. hose / 3/8 in. NPT, 1.00 x 3/4 in. hose / 1/2 in. NPTT | 25.40 x 12.70 mm. hose / 9.50 mm. NPT, 25.40 mm. x 19.00 mm. hose / 12.70 mm. NPT |
