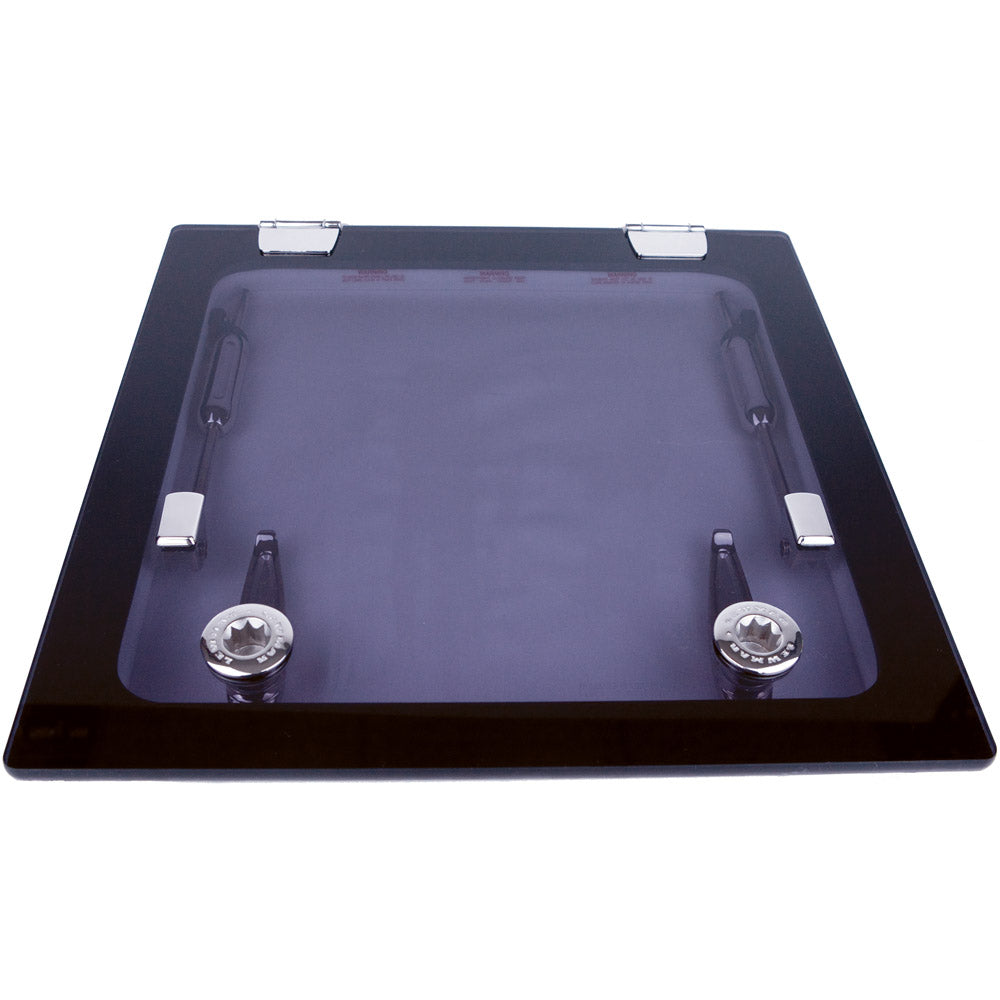

Lewmar Flush Hatch Size 70 - Cut Out: 62.7 x 62.7 cm (24 11/16 x 24 11/16 in) - Dark Grey Acrylic / Stainless Steel Frame (399701910)

SKU: LEW399701910  |  Manuf. Code: 399701910
List Price:  $2,305.95 USD
$1,435.00 USD

You save $826 today!
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  1. We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  2. No auction sites
  3. No unauthorized sellers
  4. Item must be identical, new, and in stock
Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Lewmar has developed a range of stainless steel hatch furniture. At Lewmar, we are constantly seeking to improve our product range to suit evolving design trends. This range of stainless steel hatch fittings is designed for the Flush hatch range, offering a stylish interior and exterior aesthetic to this sleek hatch range. This furniture does not detract from the functionality of the hatch, which can be opened from the outside using a standard winch handle.

Our Part # LEW399701910 | Mfr. Part # 399701910

FEATURES

  • Hatches should be fitted to a flat surface with a maximum tollerace of +/-1mm
  • Fastening size for lower frame section use 5mm CSK screws No. 10 UNC 2BA
  • Fastening size at the hinge section use M6 (1/4 ") <

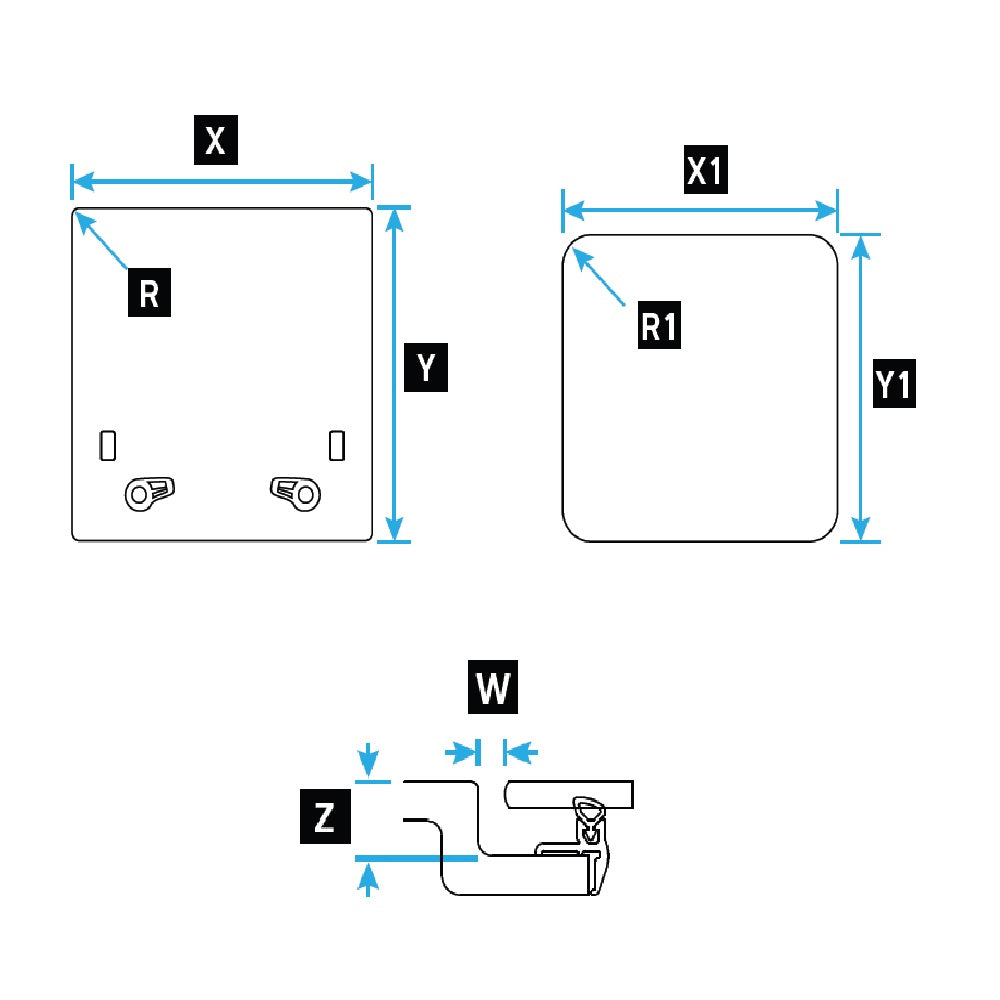

TECHNICAL INFORMATION


DescriptionImperialMetric
Size70.0070.00
W (Lower Frame Flange)9/16 in.15.00 mm.
W (Hinge Gap)11/64 in.11.00 mm.
X (Width)27 4/9 in.697.00 mm.
Y (Length)27 4/9 in.697.00 mm.
Z (Depth)1 1/4 in.31.00 mm.
R (Radil)3/8 in.10.00 mm.
Acrylic Window Thickness3/5 in.15.00 mm.
Weight24.00 lb.11.00 kg
X1 (Width)24 2/3 in.627.00 mm.
Y1 (Length)24 2/3 in.627.00 mm.
R1 (Radil)1 11/16 in.42.50 mm.
