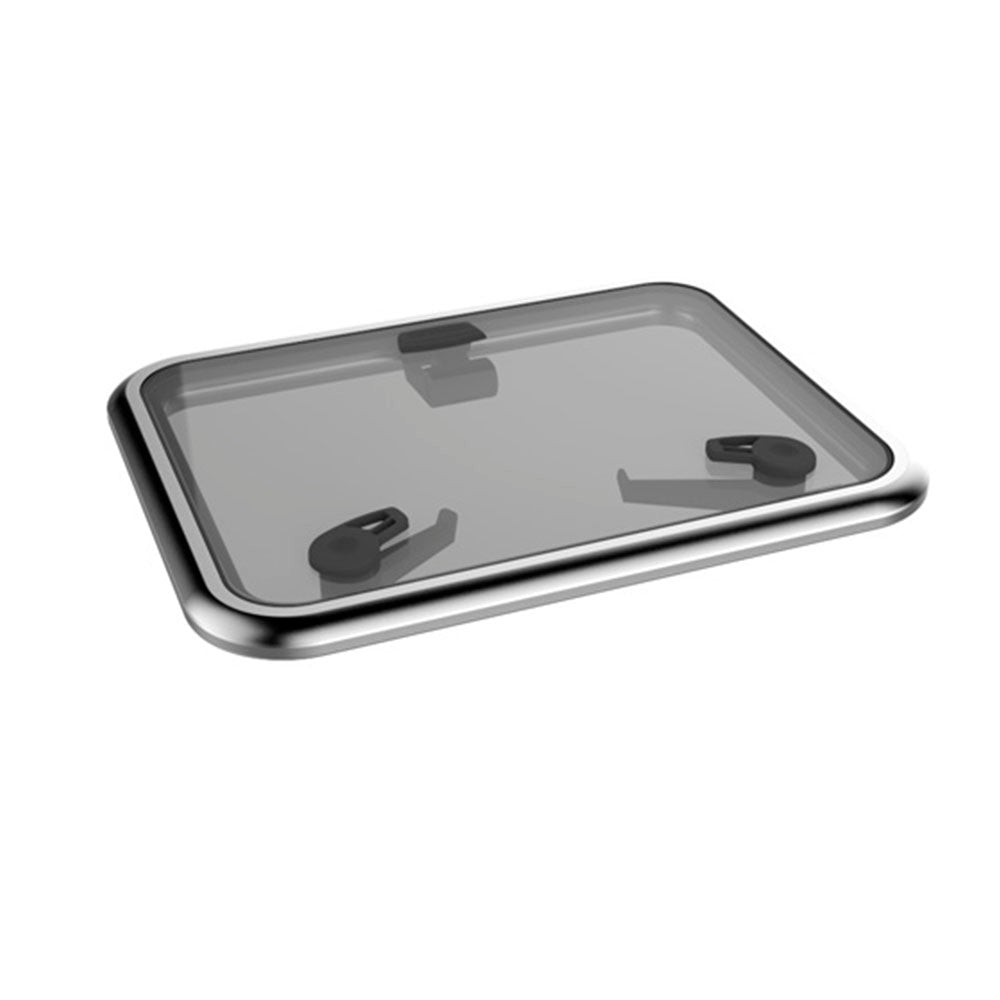

Lewmar Medium Profile Hatch Size 60 - Cut Out: 50.7 x 50.7 cm (19 15/16 x 19 15/16 in) - Grey Acrylic/Black Frame (39960021)
Lewmar Medium Profile Hatch Size 60 - Cut Out: 50.7 x 50.7 cm (19 15/16 x 19 15/16 in) - Grey Acrylic/Black Frame (39960021) is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Medium Profile Hatch #39960021 is perfect for those looking to enhance their yacht's foredeck with a blend of style and strength. It’s known for its impressive durability thanks to thicker acrylic and a robust frame, yet it maintains the sleek design you love. Plus, you can easily swap out the acrylic with Lewmar's smart sealing system, making life a breeze.
Crafted with grey acrylic and a black frame, this hatch measures overall 22 3/4 x 22 3/4 inches (578 x 578 mm). It's designed to withstand the demands of offshore sailing, making it an ideal choice for larger yachts. The lewmar hatch is both functional and stylish, providing a reliable solution for your marine needs.
UsageBest used as a foredeck hatch on larger offshore yachts, offering both strength and aesthetic appeal.
Our Part # LEW39960021 | Mfr. Part # 39960021
Features
Features
- Outside handles allow the hatch to be opened from on deck if it is not locked
- Friction levers hold the lid open in any position up to 95 degrees
- Anodised aluminium frame for corrosion resistance
- Curved upper frame profile for strength as well as modern styling
- Full range of spare parts available
- Durable thicker acrylic for enhanced strength.
- Deeper frame sections ensure greater durability.
- Smooth, modern lines echoing the Low Profile Hatch's design.
- Unique sealing system for easy acrylic replacement.
Technical Information
Technical Information

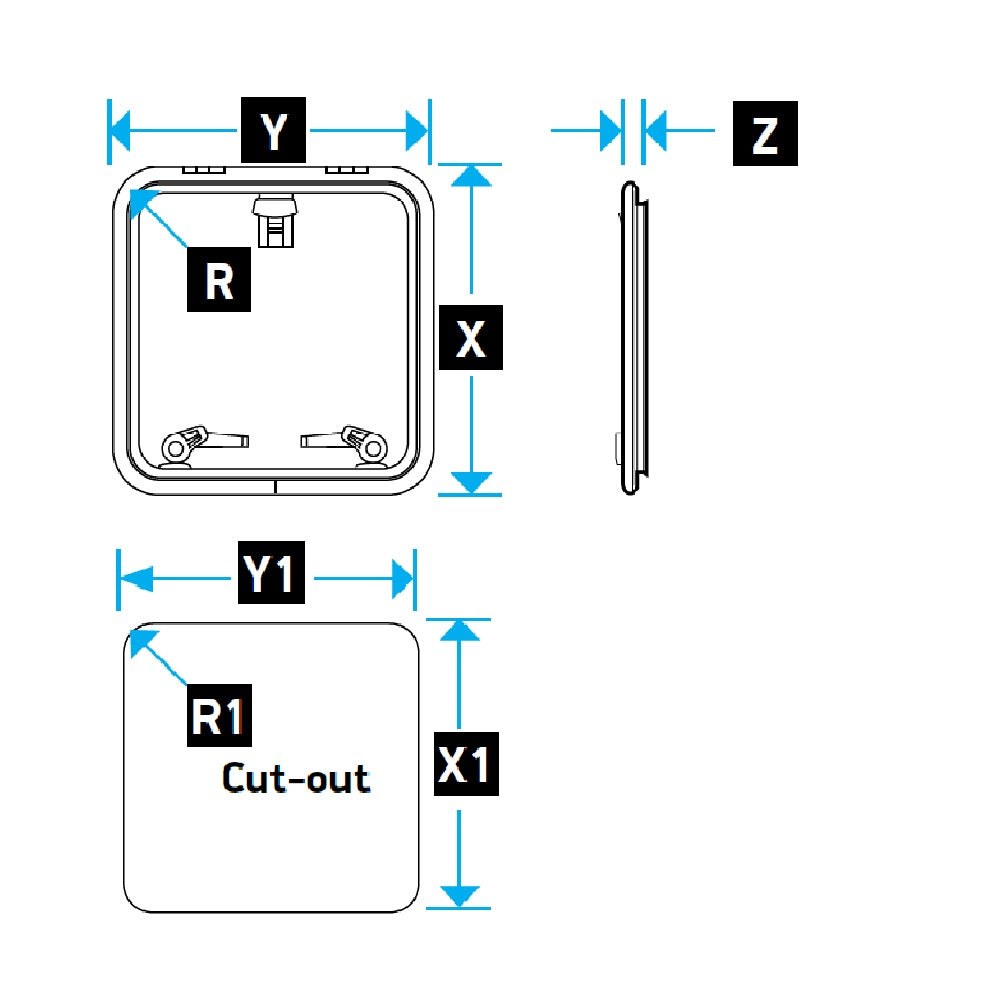

| Description | Imperial | Metric |
|---|---|---|
| Size | 60.00 | 60.00 |
| Lower Frame Flang | 9/16 in. | 15.00 mm. |
| X (Lenght) | 22 3/4 in. | 578.00 mm. |
| Y (Width) | 22 3/4 in. | 578.00 mm. |
| Z (Height) | 1 1/4 in. | 32.00 mm. |
| R (Radii) | 3 1/16 in. | 78.00 mm. |
| X1 (Length) | 19 15/16 in. | 507.00 mm. |
| Y1 (Width) | 19 15/16 in. | 507.00 mm. |
| R1 (Radii) | 1 11/16 in. | 42.50 mm. |
| Acrylic Window Thickness | 1/2 in. | 12.00 mm. |
| Hatch Weight | 17.20 lb. | 7.80 kg. |
