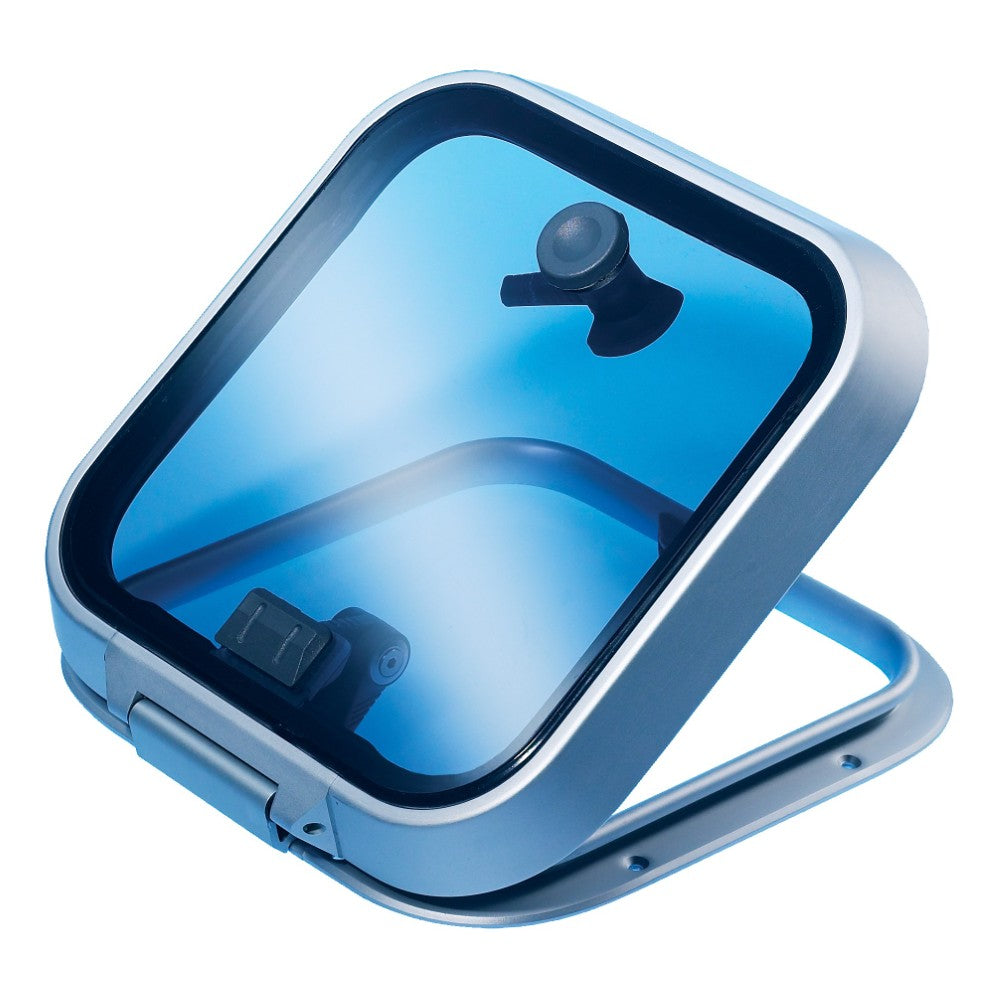

Lewmar Ocean Hatch Size 70 Flange Base - Cut Out: 62.7 x 62.7 cm (24 11/16 x 24 11/16 in) - Grey Acrylic / Silver Frame (39670070)
Lewmar Ocean Hatch Size 70 Flange Base - Cut Out: 62.7 x 62.7 cm (24 11/16 x 24 11/16 in) - Grey Acrylic / Silver Frame (39670070) is backordered and will ship as soon as it is back in stock.
Description
Description
The Lewmar Ocean Hatch #39670070 is a solid choice for boaters seeking top-notch performance and classic styling. Its rugged construction ensures you’re well-protected, whether you're out on calm seas or battling the elements. This hatch is a favorite among sailors worldwide for good reason.

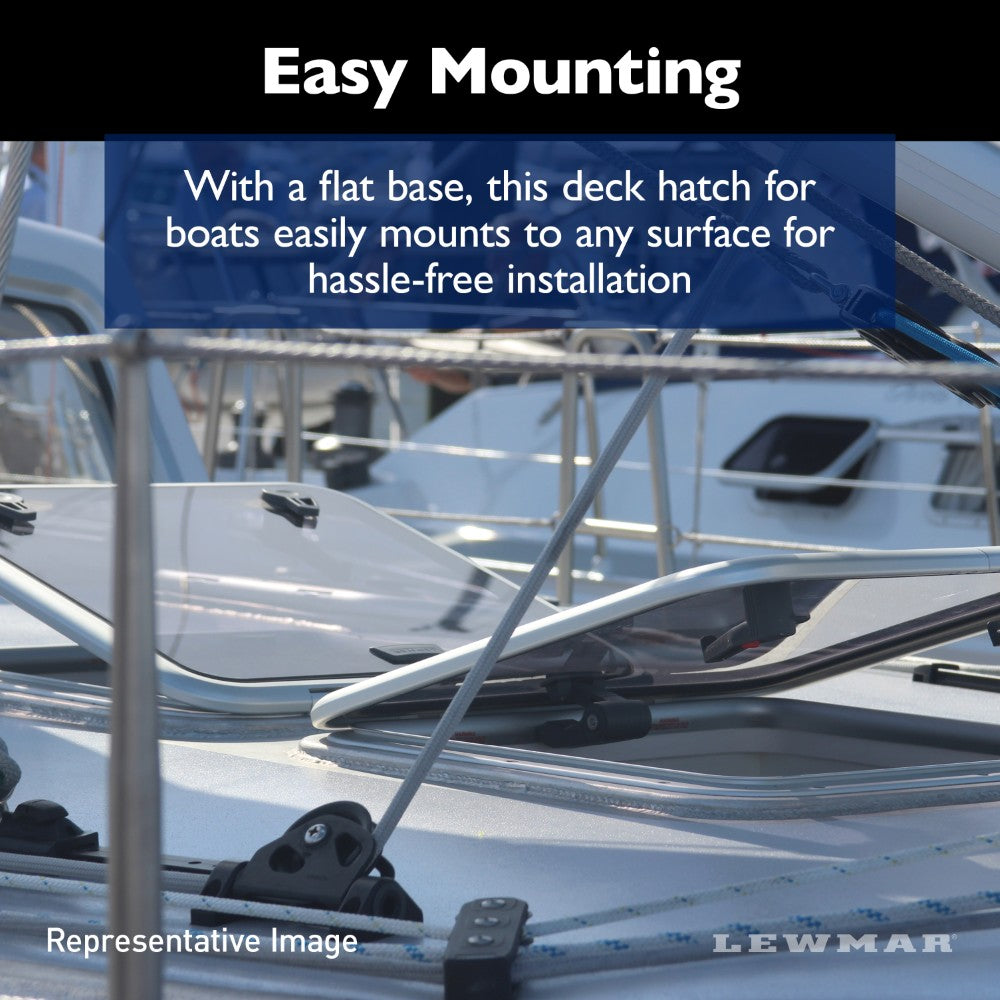

Crafted from grey acrylic with a sleek silver frame, this hatch measures overall 27 5/16 x 27 5/16 inches (694 x 694 mm). It’s designed for a flat surface installation with a maximum tolerance of +/- 1mm. Please note that it’s not compatible with trim kits or roller shades.
Our Part # LEW39670070 | Mfr. Part # 39670070

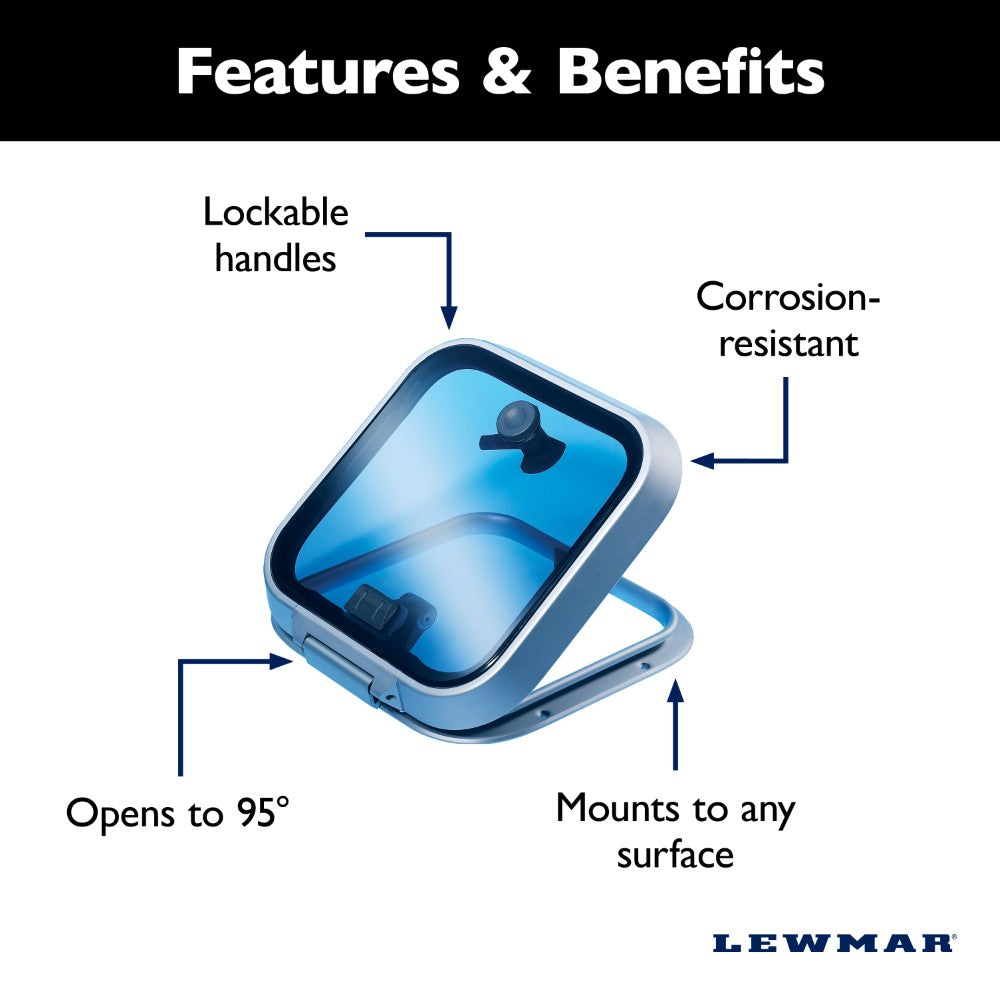

Features
Features
- Friction levers hold the lid open in any position up to 95 degrees

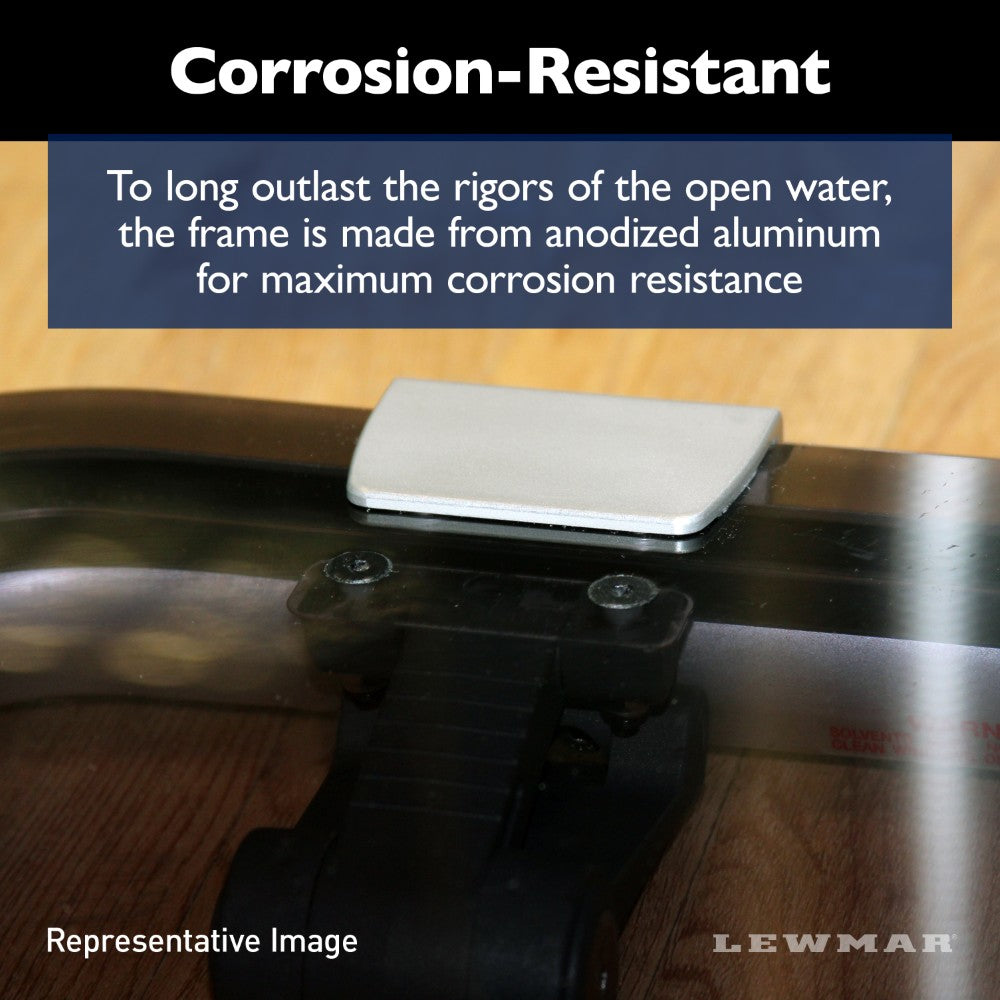

- Anodised aluminium frame for corrosion resistance

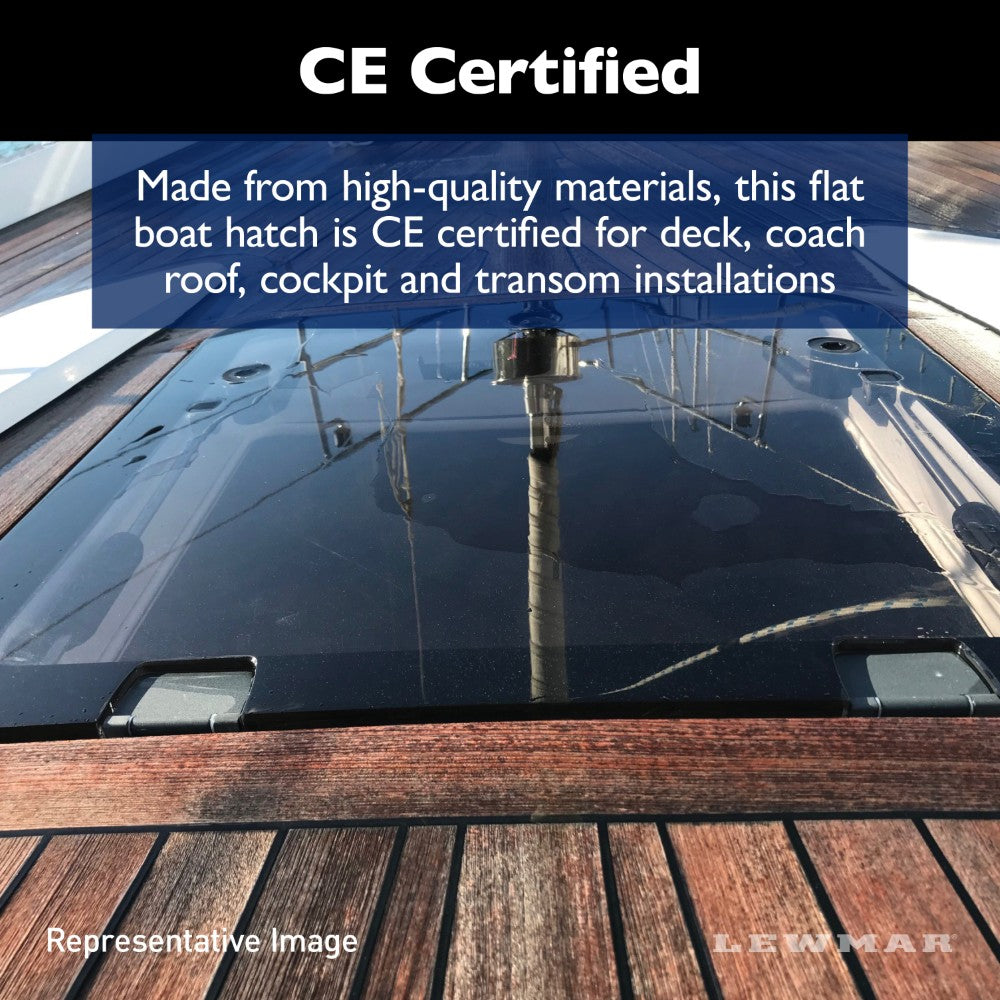

- All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom)
- Durable silver frame for lasting use
- Grey acrylic panel provides UV resistance
- Size 70 flange base for a perfect fit
Technical Information
Technical Information

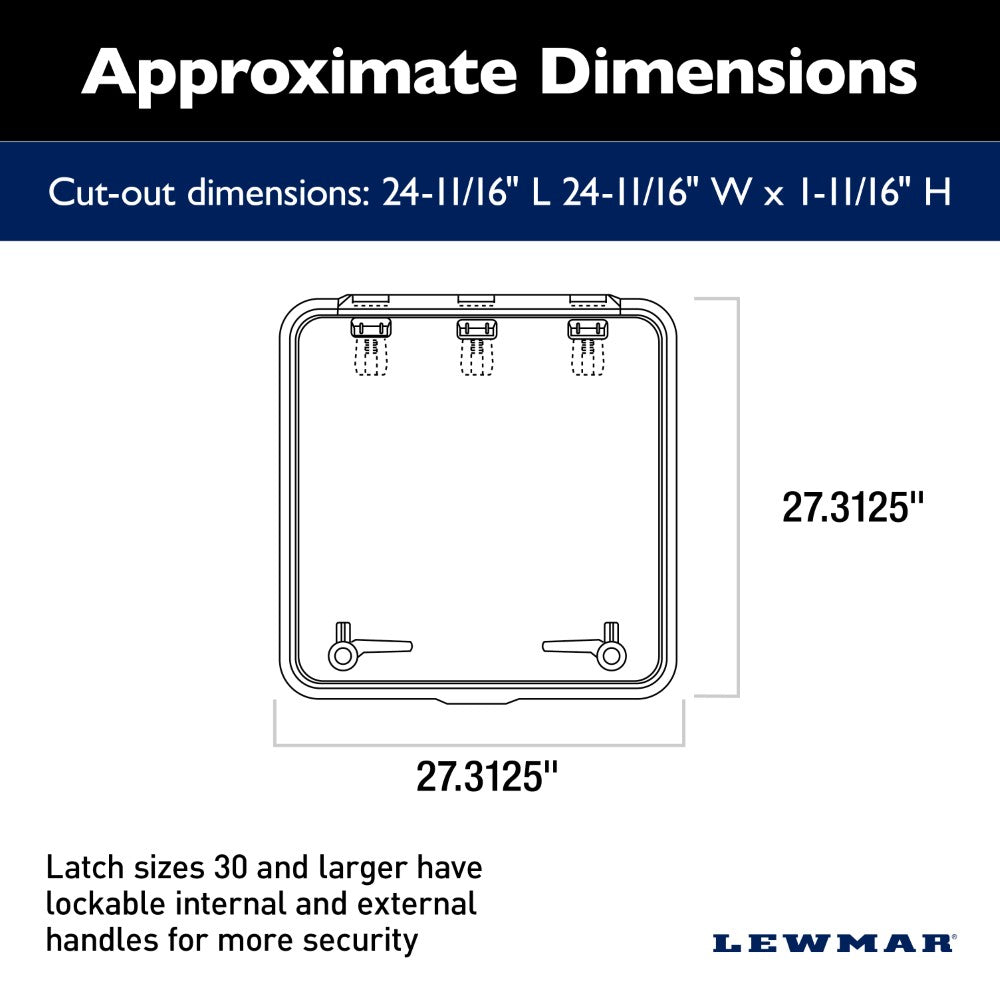

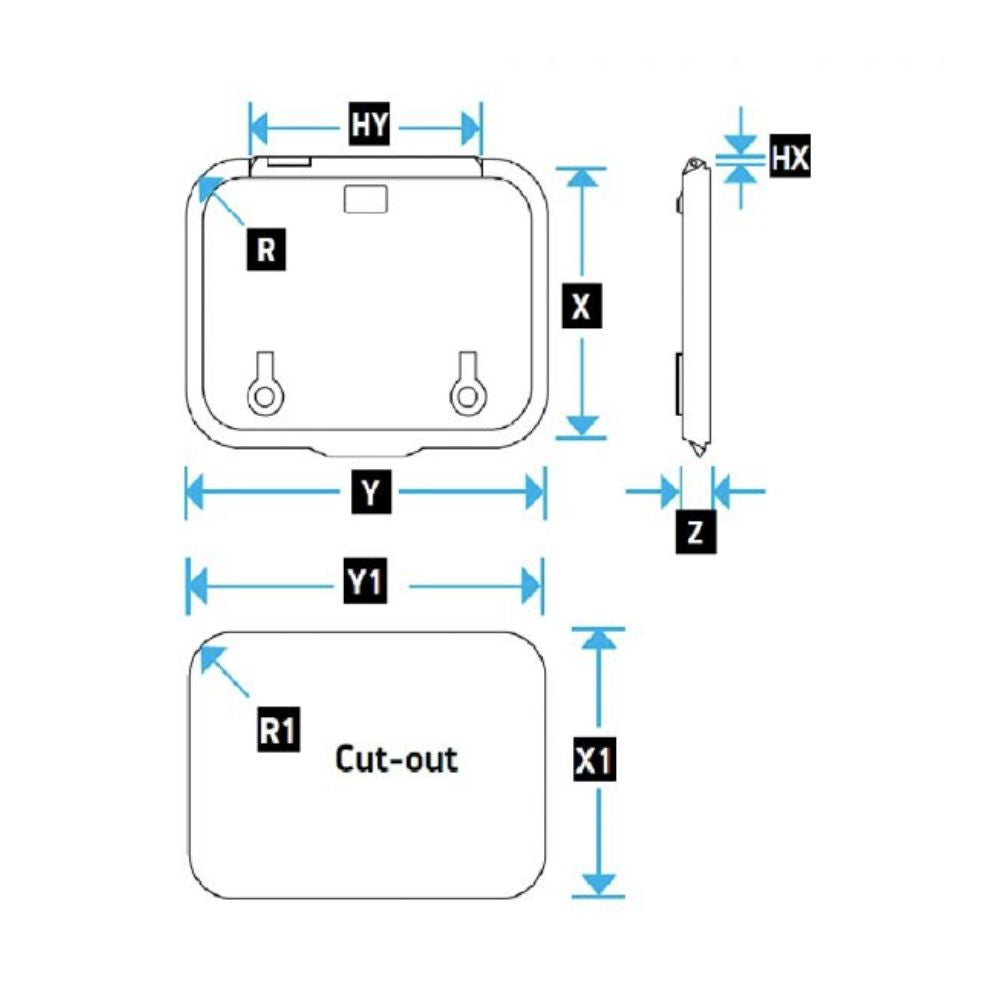

| Description | Imperial | Metric |
|---|---|---|
| Size | 70.00 | 70.00 |
| Lower Frame Flang | Flange | Flange |
| X (Lenght) | 27 1/3 in. | 694.00 mm. |
| Y (Width) | 27 1/3 in. | 694.00 mm. |
| Z (Height) | 1 2/3 in. | 43.00 mm. |
| R (Radii) | 3.00 in. | 76.00 mm. |
| HX (Hinge Length) | 1/6 in. | 4.00 mm. |
| HY (Hinge Width) | 19 1/6 in. | 487.00 mm. |
| Weight | 23.81 lb. | 10.80 kg. |
| Window Thickness | 1/2 in. | 12.00 mm. |
| X1 (Length) | 24 1/2 in. | 622.00 mm. |
| Y1 (Width) | 24 1/2 in. | 622.00 mm. |
| R1 (Radii) | 1 2/3 in. | 42.50 mm. |
