Lewmar Pilot Hatch Size 78 - Cut Out: 72 x 77.0 cm (28 1/4 x 30 5/16 in) - Grey Acrylic / White Frame (30072000)
SKU:
LEW30072000
|
Manuf. Code:
30072000
36% off
Unit price
/
Unavailable
Lewmar Pilot Hatch Size 78 - Cut Out: 72 x 77.0 cm (28 1/4 x 30 5/16 in) - Grey Acrylic / White Frame (30072000) is backordered and will ship as soon as it is back in stock.
Oversize Item: Special handling required for delivery.
Knowledgeable STAFF
Lewmar Pilot Hatch Size 78 - Cut Out: 72 x 77.0 cm (28 1/4 x 30 5/1...
Unit price
/
Unavailable
Description
Description

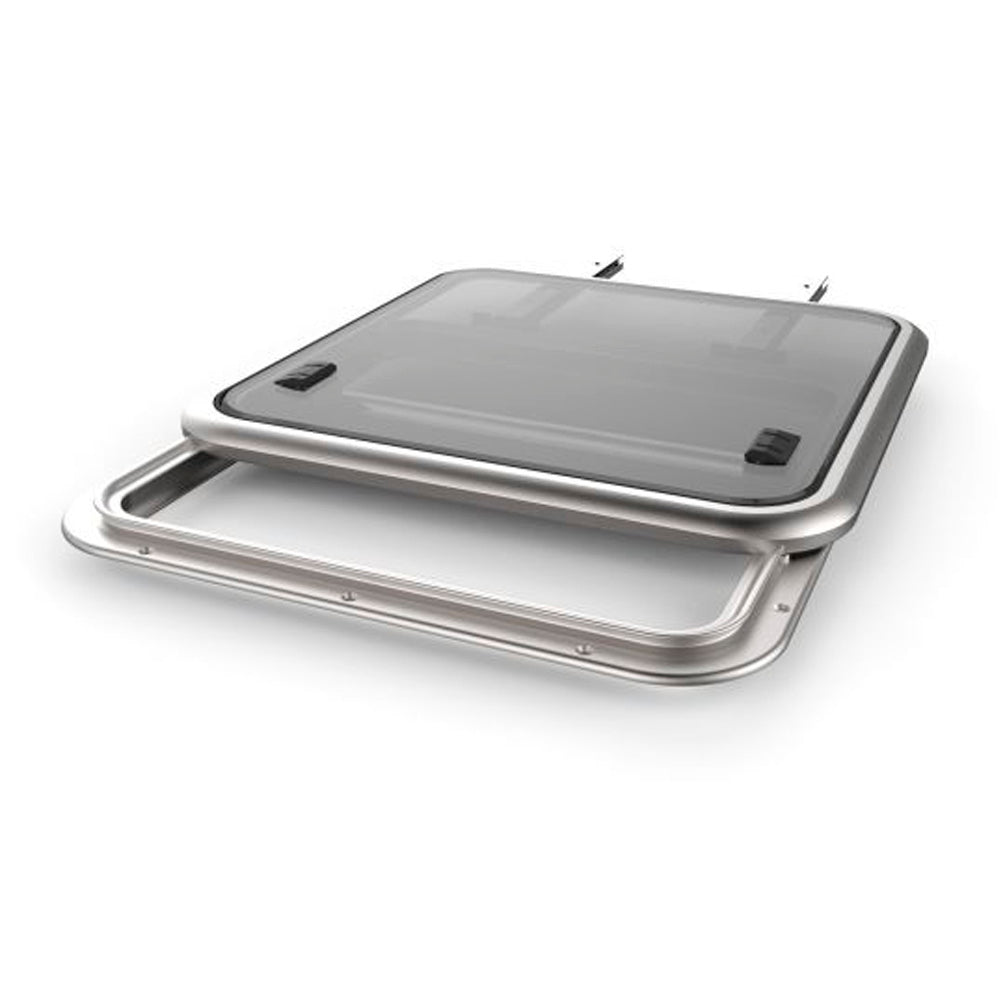

The Lewmar Pilot Hatch is designed for use on the wheelhouse or cockpit canopy of a power craft, and the styling complements the Low Profile and Medium Profile Hatch Ranges.
Our Part # LEW30072000 | Mfr. Part # 30072000
Features
Features
- The handle never moves out of reach
- Operated with a single handlebar that rotates to seal down the hatch
- Can be secured with a 5cm opening when full ventilation is not required
- Sliding technology from Lewmar racing hardware track systems, ensuring minimum friction
- The Pilot Hatch uses Lewmar unique seal system for improved sealing and easy servicing
Technical Information
Technical Information

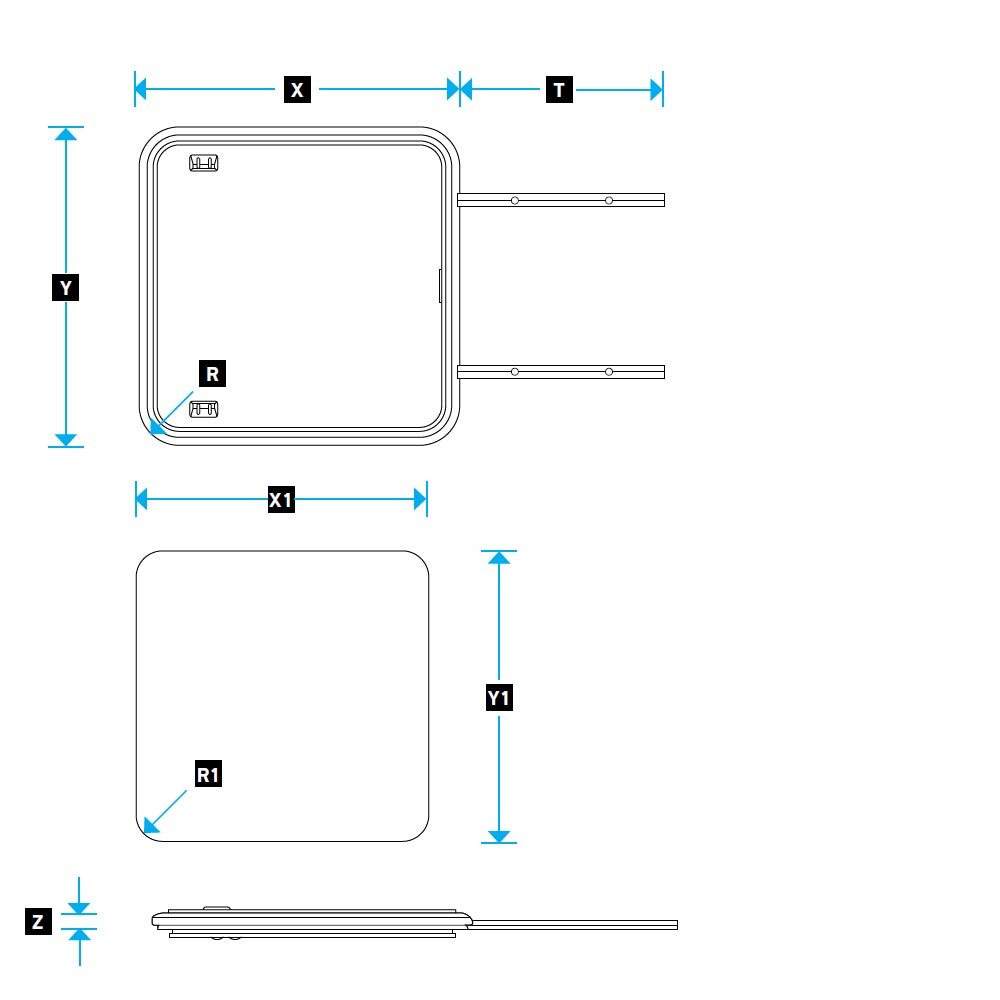

| Description | Imperial | Metric |
|---|---|---|
| Size | 78.00 | 78.00 |
| Acrylic Colour | Smoke Grey | Smoke Grey |
| Lower Frame Flang | 9/16 in. | 15.00 mm. |
| X (Lenght) | 33 2/9 in. | 844.00 mm. |
| Y (Width) | 31 1/9 in. | 790.00 mm. |
| Z (Height) | 1 1/7 in. | 29.00 mm. |
| R (Radil) | 2 7/8 in. | 73.00 mm. |
| T (Track Length) | 25 1/8 in. | 638.00 mm. |
| X1 (Length) | 30 5/9 in. | 770.00 mm. |
| Y1 (Width) | 30 5/16 in. | 720.00 mm. |
| R1 (Radii) | 1 11/16 in. | 42.50 mm. |
| Acrylic Window Thickness | 3/8 in. | 10.00 mm. |
