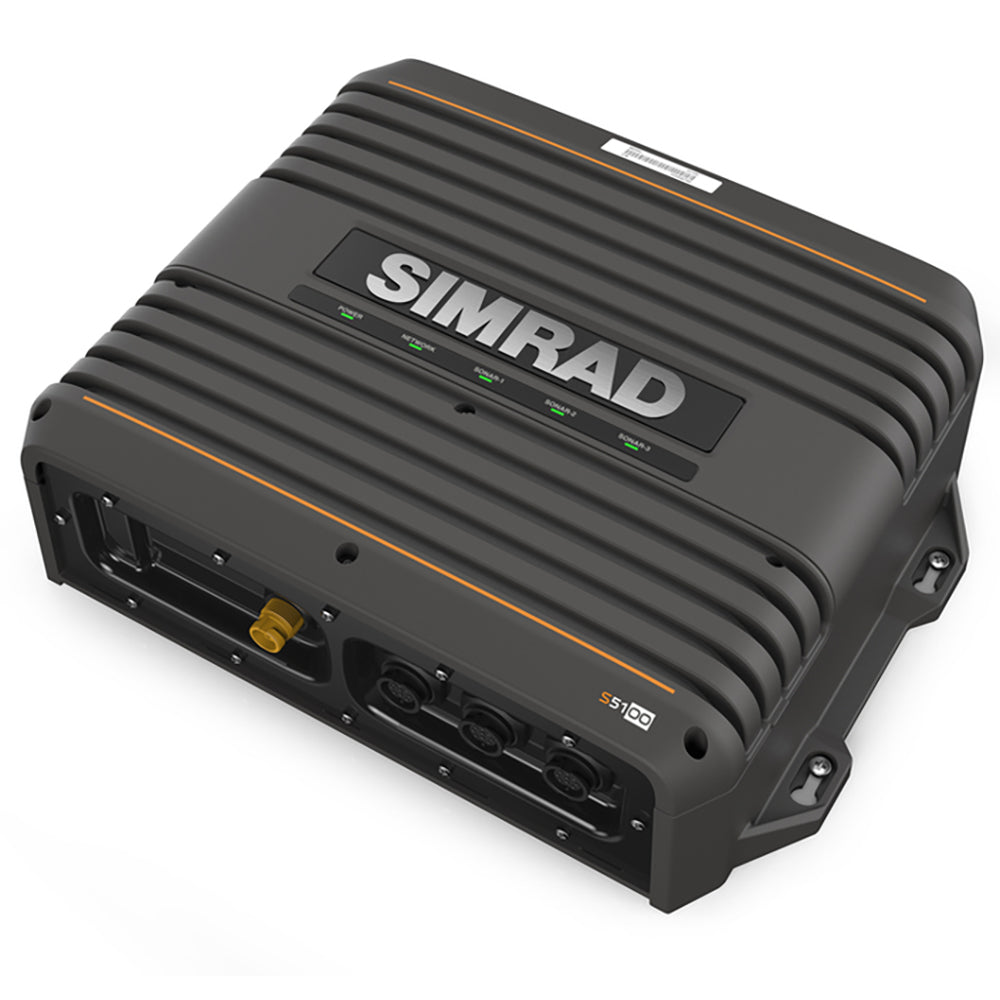

Simrad S5100 Sonar Module (High-Performance, CHIRP, NMEA 2000) (000-13260-001)

Name: Simrad S5100 Sonar Module (High-Performance, CHIRP, NMEA 2000) (000-13260-001)
Brand: Simrad
SKU: SIM-000-13260-001
Price: 2297.99 USD
Availability: InStock

SKU: SIM-000-13260-001 | Manuf. Code: 000-13260-001

$2,297.99 USD

Questions? Chat with our Tech Team

Backed by MAURIPRO Support.

DESCRIPTION

S5100 Module Redefining High-Performance Sonar

The S5100 high-performance CHIRP sonar module delivers true simultaneous coverage of up to three different depth ranges, at high resolution, making it the perfect sonar solution for offshore sportfishing anglers.

Simultaneous split-screen viewing capability puts you in complete control of the water column; while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking.

Mix and match your favorite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines - or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.

Our Part # SIM-000-13260-001 | Simrad Part # 000-13260-001

FEATURES

Features:

3 fully independent sonar channels deliver high-resolution coverage.
Noise-free clarity at all depth ranges.
Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP.
Compatible with wide-angle CHRIP transducers for greater coverage of the water column.
Simultaneous split-screen viewing of multiple depth ranges on your display.
Maximum depth of 3,000 meters/10,000 feet (transducer dependent).
Easy to install with three plug-and-play 9-pin transducer connectors.
Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems and S2000-series fishfinders.

TECHNICAL INFORMATION

Description	Imperial	Metric
Max Power Output	1000 W	1000 W
Frequency	50/200 kHz	50/200 kHz
Cone Angle (200 kHz)	12°	12°
Cone Angle (50 kHz)	30°	30°
Cable Length	30.0 ft	9.1 m
Mounting Style	Thru-Hull
