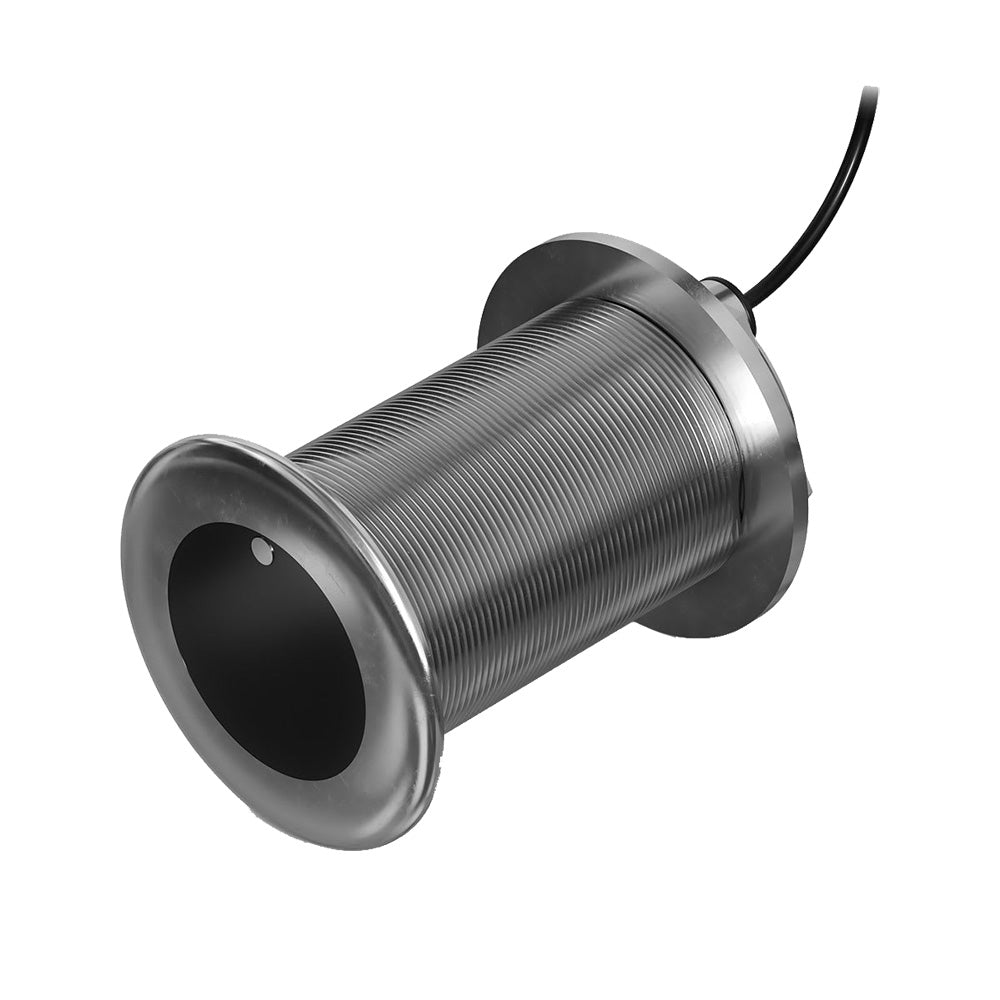

The Garmin GT15M-THF 20 Degree Thru-Hull Transducer is a premium 600W stainless steel sensor designed for boats with a deadrise of 16 to 24 degrees. This mid-band CHIRP transducer delivers exceptional target separation and crisp sonar imagery at depths up to 1,900 feet, making it a reliable choice for offshore anglers seeking high-performance fish-finding technology.
FEATURES
FEATURES
- Stainless steel thru-hull transducer.
- 600W CHIRP mid-band.
- 20-degree deadrise for angled hulls.
- Provides traditional sonar.
- Depth and temperature readings.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Overall Length | 10 1/2 in | 26.7 cm |
| Overall Width | 7 1/4 in | 18.4 cm |
| Overall Height | 9 7/8 in | 25.1 cm |
| Weight | 10.0 lb | 4.5 kg |
| Max. Load Rating | 350.0 lb | 158.8 kg |
| Cable Length | 100.0 ft | 30.5 m |
| Wattage | 600W | 600W |
