DESCRIPTION
DESCRIPTION

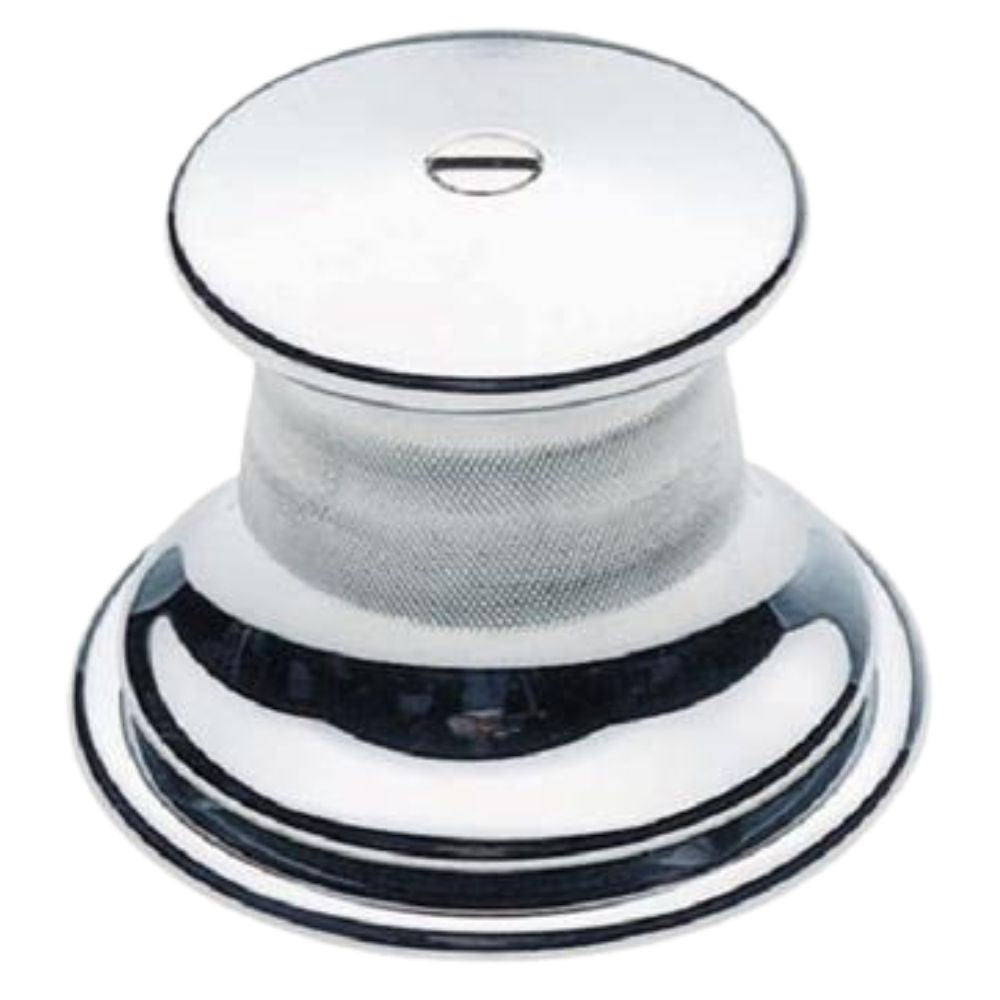

The Muir Vertical Capstan (MC850) is a versatile and powerful winch perfect for line handling, mooring, and docking on mid-sized boats. This 12V model is equipped with a robust 1200W motor, providing significant pulling power. Its durable polished bronze drum and marine-grade construction ensure reliability and corrosion resistance. The vertical, through-deck design offers a low-profile and effective solution for managing lines on board.
Our Part # MUI-MC85012 | Mfr. Part # MC85012
FEATURES
FEATURES
| Name | Metric | Imperial |
|---|---|---|
| Version | Capstan | |
| Standard Equipment | Solenoid Box, 1 x Footswitch | |
| Finish | Chrome Bronze | |
| Power Ratting | 386 kg | 850 lb |
| Max Load | 447 kg | 980 lb |
| Work Load | 149 kg | 325 lb |
| Approximate Boat Size | 8 - 13 m | 29 - 45 ft |
| Max Line Speed | 15 m/min | 50 ft/min |
| Amps Work Load | 110 a | |
| Approximate Ship Weight | 15 kg | 35 lb |
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Weight | 21.0 oz | 595.3 g |
| Voltage | 12V | 12V |
| Wattage | 1200W | 1200W |
