Selden Boom B232 & B256 — Spare Parts List

Boom Section Data

Boom section	Iy (cm4)	Ix (cm4)	Weight 0/+20% (kg/m)	Wy min (cm3)	Wx min (cm3)	Sail groove (mm)
B232/138	2162	676	7.38	182	98	11+-0.75
B256/156	3476	1111	9.59	268	142	11+-0.75

Inboard boom end dimensions

Boom section	A (mm)	øD (mm)	W (mm)
B232	19.5	16	30,5
B256	48	16	30,5

The list gives the maximum parts each end fitting can take; the drawing may show more than can be fitted. Outhaul normally uses the O-slot, reef 1 the 1-slot, reef 2 the 2-slot.

Inboard & Outboard Ends

Part no.	Item	Description	Dimension	Boom
509-117	1	Inboard end	B232	B232	Ask us to source it →
509-119	1	Inboard end	B256	B256	Ask us to source it →
165-425	2	Gooseneck pin	Ø16x72	B232 & B256	Ask us to source it →
164-460	3	Washer	Ø30/17-1	B232 & B256	Ask us to source it →
301-054	4	Split pin	Ø4.6x31	B232 & B256	Ask us to source it →
504-374	5	Sheave (lower)	Ø57/14-16	B232	View part →
504-334	5	Sheave (lower)	Ø70/16-16	B256	View part →

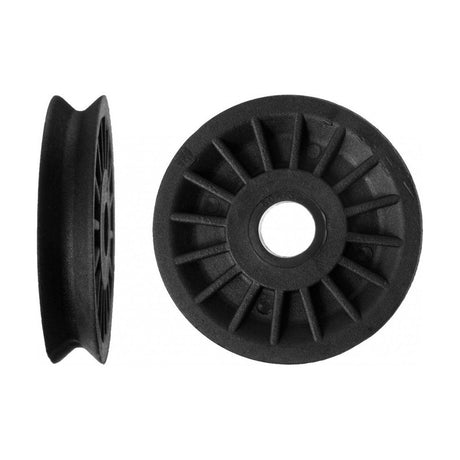

504-502	6	Sheave (SLR)	Ø45/12-16	B232	View part →
166-867	7	Pin (lower)	Ø14x110	B232	Ask us to source it →
166-871	7	Pin (lower)	Ø16x114	B256	Ask us to source it →
166-868	8	Pin (upper)	Ø12x117	B232	Ask us to source it →
165-410	10	Clevis pin	Ø12x61	B232	View part →

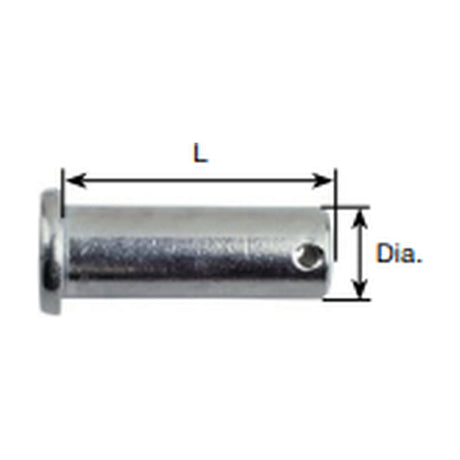

165-507	10	Clevis pin	Ø14x61	B256	View part →
164-005	11	Washer (polyamide)	Ø24/13-2.4	B232	Ask us to source it →
164-026	11	Washer (polyamide)	Ø20/14-1	B256	Ask us to source it →

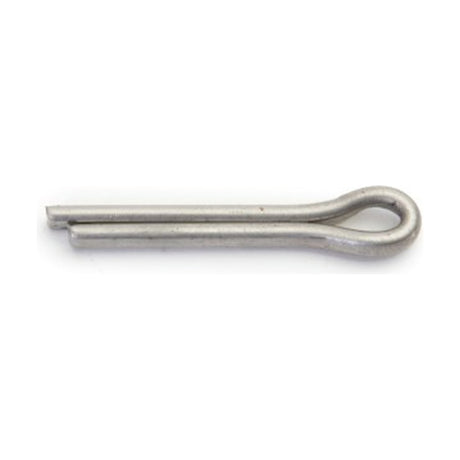

301-050	12	Split pin	Ø2.9x21	B232	View part →
301-053	12	Split pin	Ø3.7x20	B256	Ask us to source it →
319-830	13	Retaining plug (upper)	M16	B256	Ask us to source it →
318-024	14	Retaining plug (lower)	M18	B256	Ask us to source it →
167-002	15	Pop rivet (Monel)	Ø6.4x17.8	B232 & B256	Ask us to source it →
500-117	16	Outboard boom end	B232	B232	Ask us to source it →
500-119	16	Outboard boom end	B256	B256	Ask us to source it →
166-869	17	Pin	Ø16x104	B232	Ask us to source it →
166-493	17	Pin	Ø16x121	B256	Ask us to source it →
504-337	18	Sheave	Ø90/16-16	B256	View part →

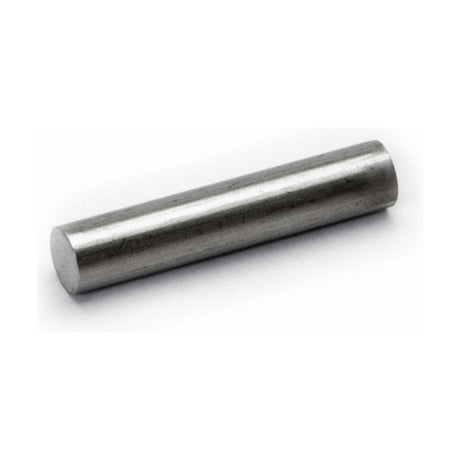

166-470	19	Pin	Ø14x40	B232	View part →
166-418	19	Pin	Ø16x48	B256	Ask us to source it →
157-509	21	Square nut	M6	B232	Ask us to source it →
157-510	21	Square nut	M8	B256	Ask us to source it →
155-621	22	Screw	MRT 6x20	B232	View part →
155-611	22	Screw	MRT 8x25	B256	View part →
319-673	23	Plug	Ø8/5.5-7.5	B232 & B256	Ask us to source it →

Items 1–15: inboard (gooseneck) end; 16–23: outboard end.

Selden boom B232 B256 inboard and outboard end fittings exploded view with item numbers

Outhauls

Conventional outhaul

Part no.	Item	Description	Dimension	Boom
511-508	A1	Outhaul car	103x56	B232 & B256	Ask us to source it →

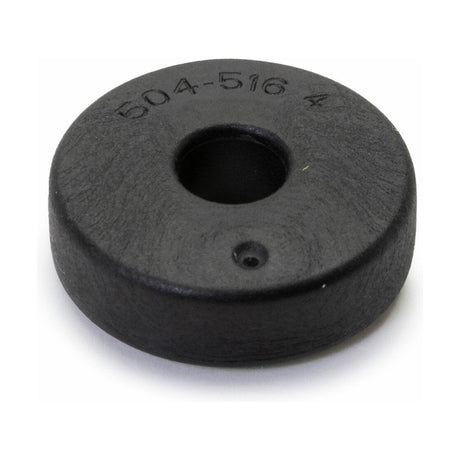

504-516	A2	Wheel	Ø28	B232 & B256	View part →

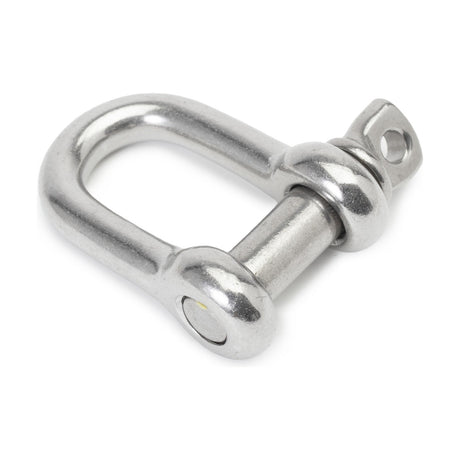

307-024	A3	Shackle	M10x20x40	B232 & B256	View part →
602-003	–	Recommended wire	Ø5 (7x19)	B232 & B256	Ask us to source it →
611-023	–	Recommended line	Ø12 (32/3)	B232 & B256	View part →
538-447-51	A4	Internal outhaul block	B232	B232	Ask us to source it →
538-447-01	A4	Internal outhaul block	B256	B256	Ask us to source it →

In-mast furling outhaul

Part no.	Item	Description	Dimension	Boom
511-504	B1	Outhaul car	128x56	B232 & B256	Ask us to source it →
530-727	B2	Sliding insert	111x26	B232 & B256	Ask us to source it →
504-516	B3	Wheel	Ø28	B232 & B256	View part →

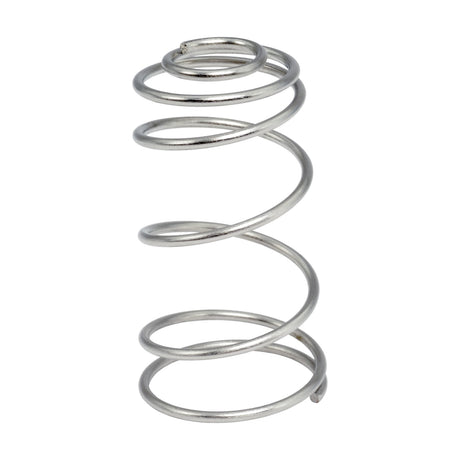

308-074	B4	Spring	Ø36x70	B232 & B256	View part →
406-001-01	B5	Single block	PBB60	B232 & B256	View part →
319-723	B6	Buffer	Ø70	B232 & B256	View part →
611-023	–	Recommended line	Ø12 (32/3)	B232 & B256	View part →
511-829-01	B7	Outhaul stop fwd	37x26x24	B232 & B256	Ask us to source it →

Sliders, Single Line Reef & Accessories

Sliders

Part no.	Item	Description	Dimension	Boom

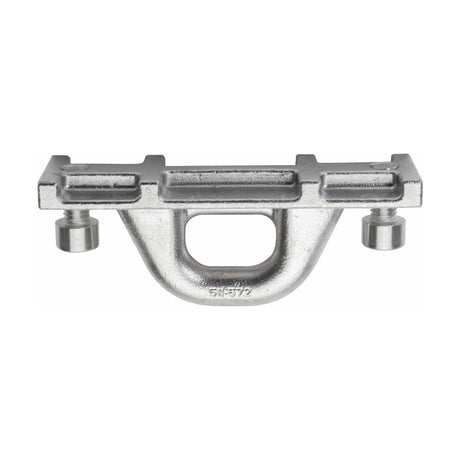

511-572	C1	Main sheet slider	T-32	B232 & B256	View part →
153-006	C2	Screw	8x16	B232 & B256	Ask us to source it →
511-801	C3	Kicker slider	T-32	B232	View part →

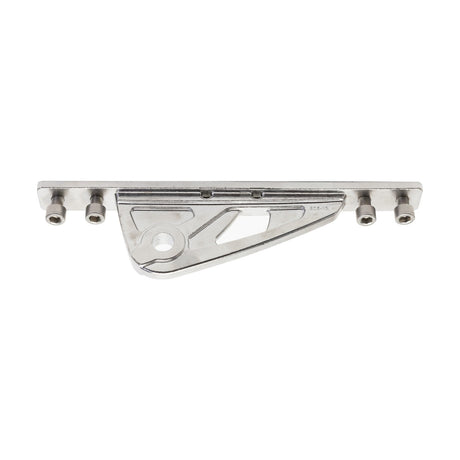

511-608	C3	Kicker slider	T-32	B256	View part →
153-011	C4	Screw	M10x16	B232 & B256	Ask us to source it →
511-637	C5	Rope location eye	T-32	B232 & B256	Ask us to source it →
155-703	C6	Screw	MRT-TT 6X12	B232 & B256	View part →

Single line reef

Part no.	Item	Description	Dimension	Boom
538-446-51	D1	SLR block	B232	B232	View part →

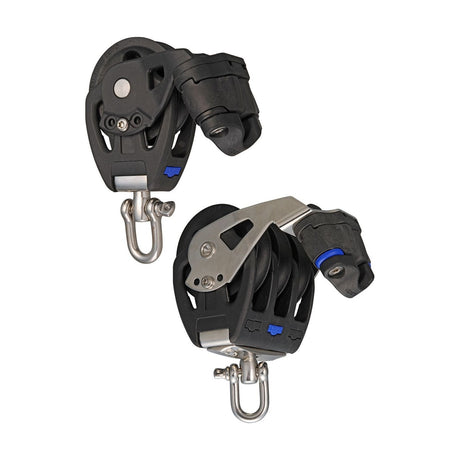

538-446-01	D1	SLR block	B256	B256	View part →

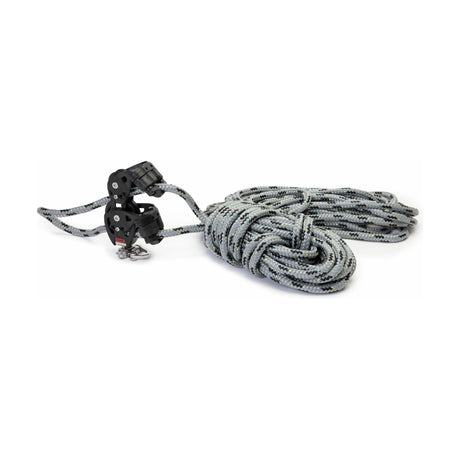

611-027	D2/D3	Starboard line, blue	Ø12	B232 & B256	View part →

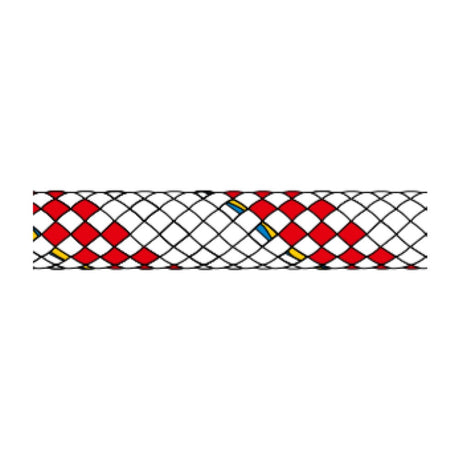

611-026	D2/D3	Port line, red	Ø12	B232 & B256	View part →

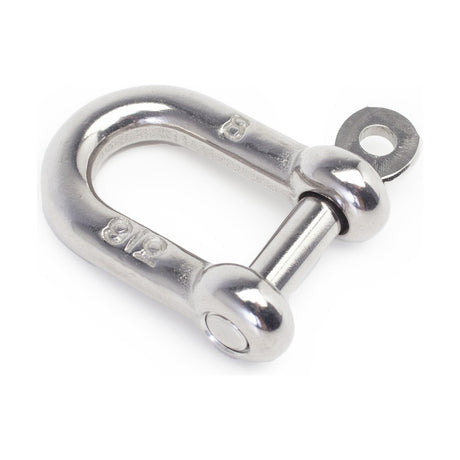

307-021	D4	Shackle	M8	B232	View part →
307-085	D4	Shackle	Ø10	B256	View part →

Accessories

Part no.	Item	Description	Dimension	Boom
508-951-01	E1	Eye assembly, German sheeting	B232	B232	Ask us to source it →
508-955-01	E1	Eye assembly, German sheeting	B256	B256	Ask us to source it →
591-669	E2	Label	160mm	B232 & B256	Ask us to source it →
591-123	E3	Black band	25mm	B232 & B256	Ask us to source it →
591-266	E4	Calibration label, starboard	20x260	B232 & B256	Ask us to source it →
591-267	E4	Calibration label, port	20x260	B232 & B256	Ask us to source it →
532-493	E5	Cable exit	46x20	B232 & B256	Ask us to source it →

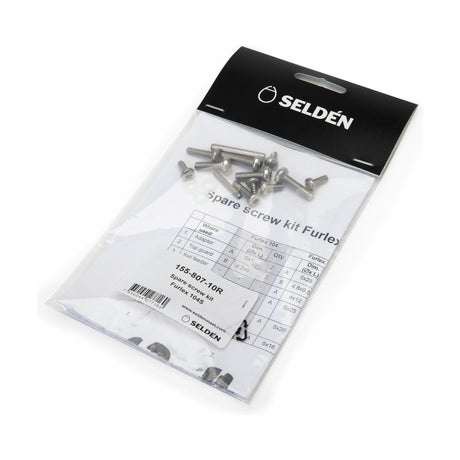

155-807	E6	Screw	MRT 5x16	B232 & B256	View part →
