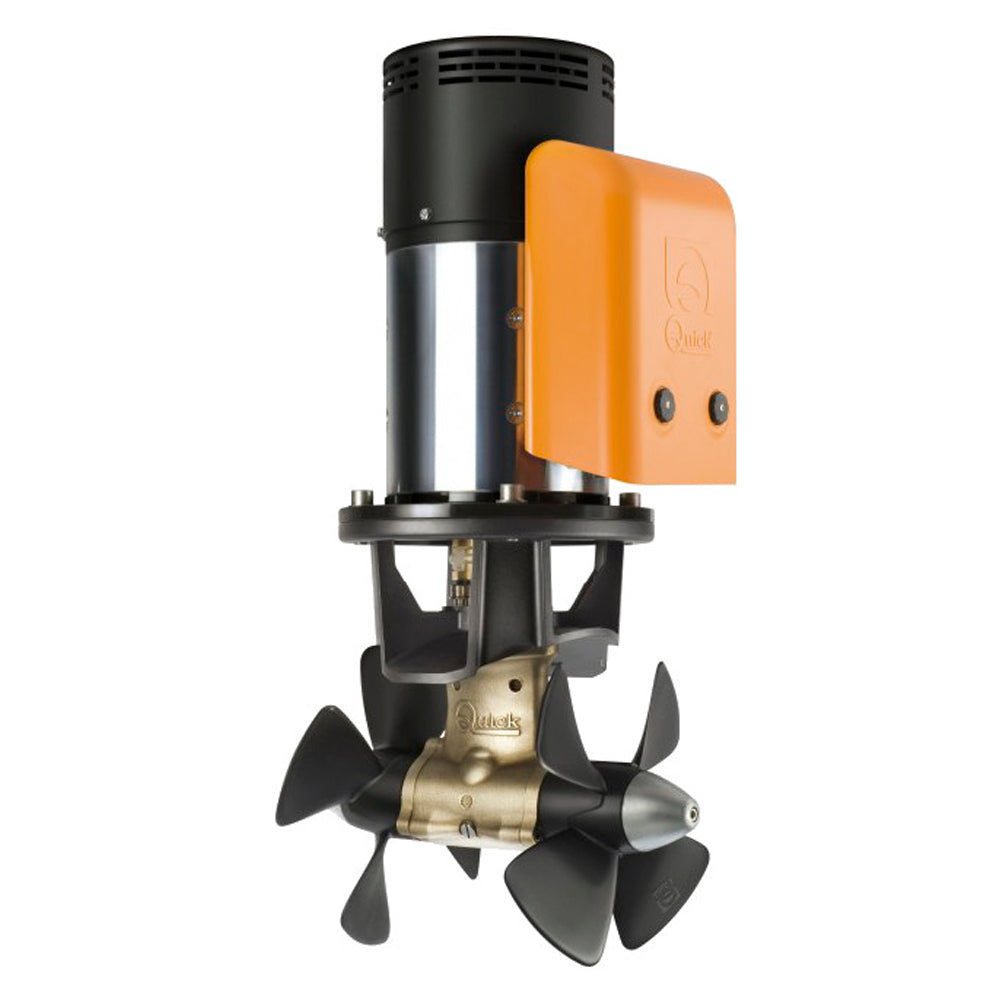

Quick Bow Thrusters - BTQ 300 Electric 24V 595.3 lbf (270.0 kgf)

SKU: QCKFGBT30270240T00  |  Manuf. Code: FGBT30270240T00
List Price:  $7,890.34 USD
$5,786.00 USD
27% off, you save $2,104
Oversize Item: Special handling required for delivery.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

The Quick BTQ 300 is a double counter rotating propeller bow thruster composed of a sturdy composite material. Some additional features of this unit are the solenoid which is protected by a sturdy composite material, the gearbox is composed of bronze, and the zinc anode is independent from the gearbox which allows an easy replacement and it is also equipped with an elastic coupling. This unit is sold complete with the bow thruster and users manual.

Our Part # QCKFGBT30270240T00 | Mfr. Part # FGBT30270240T00

FEATURES

  • 300 Electric 24V bow thruster system
  • 595.3 lbf (270.0 kgf) thrust capacity
  • Stainless steel marine-grade construction
  • Improves vessel maneuverability and docking control
  • Saltwater and freshwater compatible

TECHNICAL INFORMATION

DescriptionImperialMetric
Propulsion systemDouble propeller
Tunnel diameter11 4/5 in.300.00 mm.
Motor Power12.00 Kw.
Voltage24 V.
Section of wire2 x AWG 3/02 × 95.00 mm2
Fuse2 × 325 A.
Thrust595.00 lb.270.00 Kgf.
Weight77.20 lb.35.00 kg.
Limit thickness values of the tubesmin. 5/16" - max. 1/2"min. 8.00 mm. - max. 12.70 mm.
Boat size65.00 - 85.00 ft.20.00 - 29.00 m.
