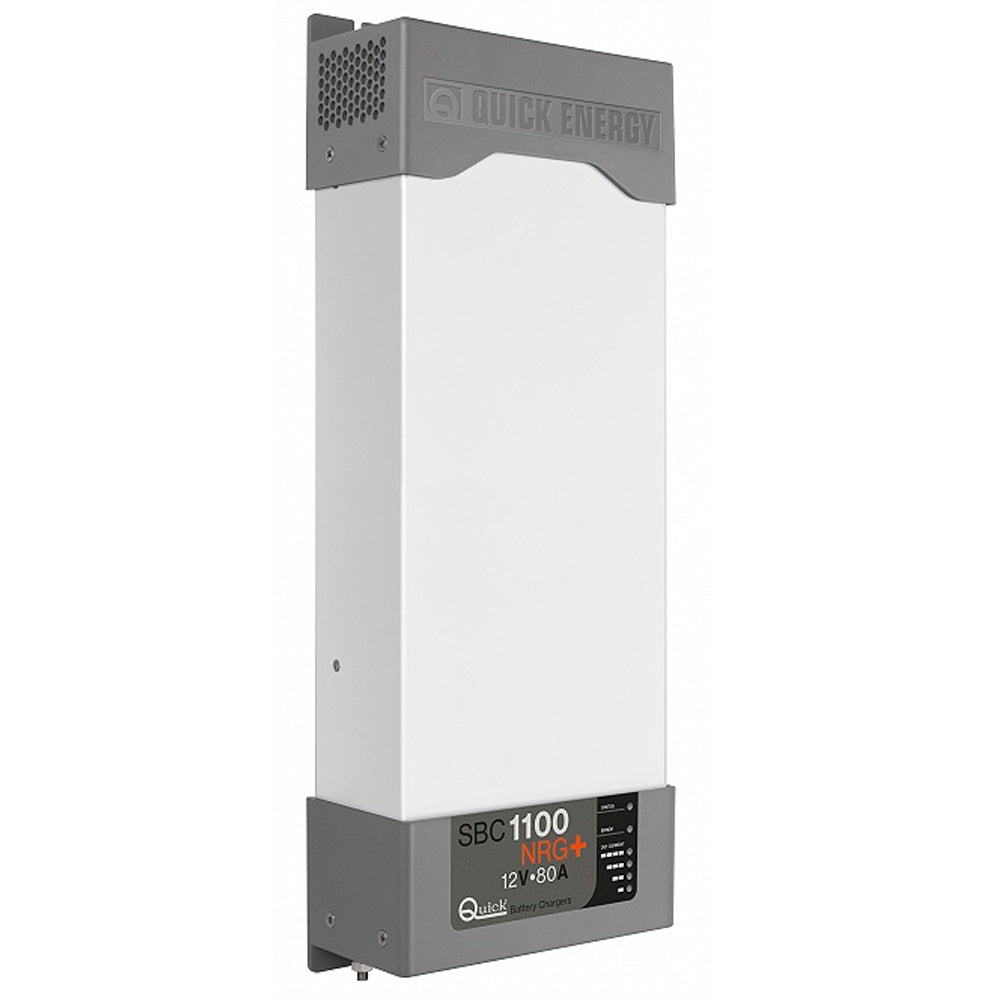

Quick Chargers - SBC 1100 Nrg Battery Charger Fr - 12V - 80 Amp (FBNRP1100FR0A00)

Name: Quick Chargers - SBC 1100 Nrg Battery Charger Fr - 12V - 80 Amp (FBNRP1100FR0A00)
Brand: Quick
SKU: QCKFBNRP1100FR0A00
Price: 1835.0 USD
Availability: InStock

SKU: QCKFBNRP1100FR0A00 | Manuf. Code: FBNRP1100FR0A00

~~List Price: $2,319.63 USD~~

$1,835.00 USD

Worldwide Shipping Avalailable

SIMPLE returns & exchanges

PRICE MATCH guarantee

Knowledgeable STAFF

Description

The new SBC NRG+ battery chargers are more compact and equipped with connectors which make their connection easy and practical. Thanks to their efficiency (up to 92%), they are capable of offering a much lower consumption, a lower heat emission and a greater system's reliability.

Safety classification EN 60335-2-29

EMC Class EN 55022/A

FCC TITLE 47 PART 15 SUBPART B CLASS A

Our Part # QCKFBNRP1100FR0A00 | Mfr. Part # FBNRP1100FR0A00

Features

Three stage IUoU battery charging.
High efficiency.
Multiple outputs in order to charge more groups of batteries.
Differentiated charging for liquid electrolite (open or sealed), gel, AGM or OptimaÂ® batteries.
Integrated output fuse inside the battery charger.
Capacity of supplying full power with low AC mains voltage.
Low residual ripple on output.
Universal AC supply input.
Power factor (cos) equal to 1.
Variable speed of the cooling fan.
Compatible with the generators.
Short circuit, overloading, output overvoltage and overheating protection.
Can work in a wide range of ambient temperatures.

Technical Information

Description	Imperial	Metric
Max output current	80 A.
Charge absorption voltage	14,1 Vdc OL - 14,2 Vdc Li-Ion 14,4 Vdc SL / Gel / AGM - 14,7 Vdc Optima
Charge float absorption	13,4 Vdc OL - 13,5 Vdc Li-Ion - 13,6 Vdc AGM 13,8 Vdc SL / Gel / Optima
Number of outputs	3
Supply voltage	264Ã·83 Vac, with power reduction under 108 Vac
Frequency	45Ã·66 Hz
Efficiency	â¥ 88%
Max absorption (230/240 Vac)	5.40 A.
Max absorption (120 Vac)	10.60 A.
Operating temperature	+5Â°F Ã· +158Â°F, with power reduction over +122Â°F
Cooling	Forced, by variable speed cooling fans
Weight	9.30 lb.	4.20 kg.
Width	6 2/3 in.	170.00 mm.
Height	19.00 in.	481.00 mm.
Depth	3 2/9 in.	82.00 mm.
