DESCRIPTION
DESCRIPTION

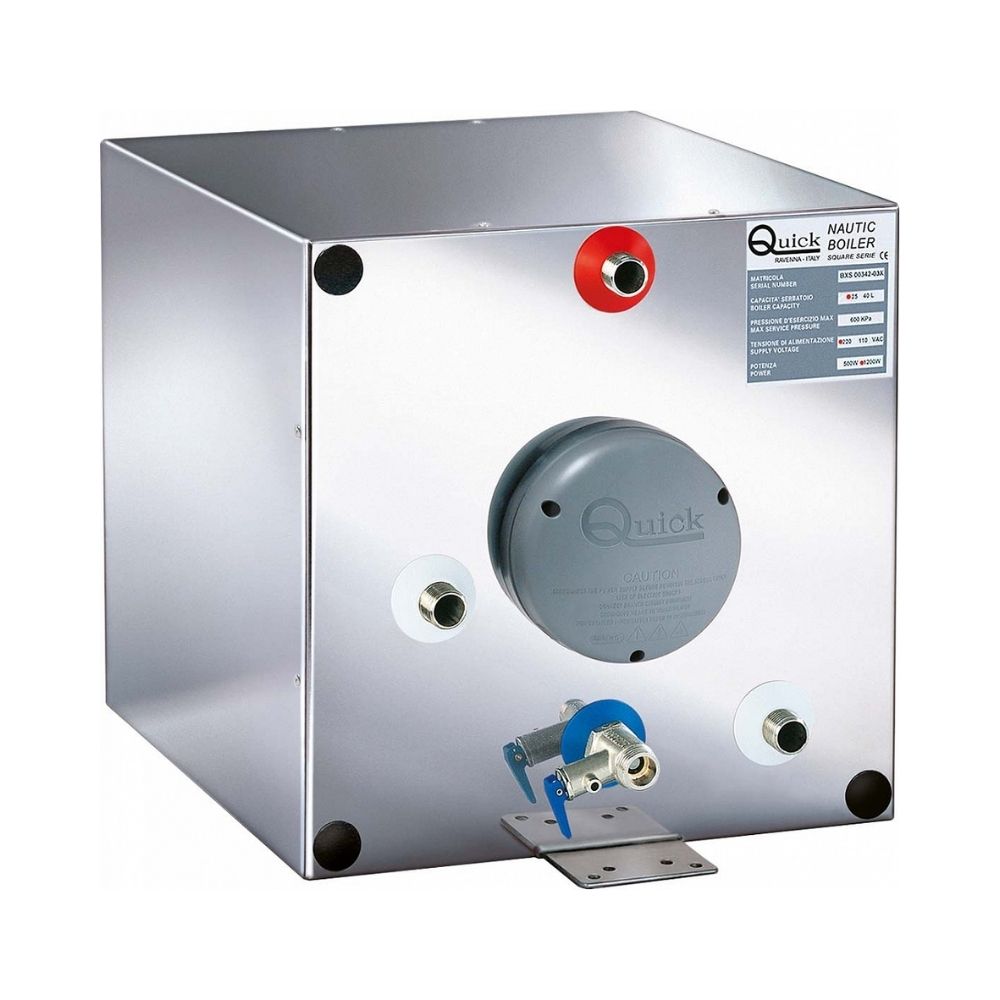

The BXS water heater range is distinguished by the square-shape design, making for particularly easy installation. Tank in AISI 316 stainless steel, Casing in AISI 304 stainless steel.
Our Part # QCKFLBXS4006SLVA00 | Mfr. Part # FLBXS4006SLVA00
FEATURES
FEATURES
- 40L capacity with integrated heat exchanger
- Stainless steel exterior for marine durability
- 110V/500W economical heating element
- Compact design for tight cabin spaces
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Tank Capacity | 10.56 gal. | 40.00 L. |
| Tank Material | Stainless steel | |
| Thermal Insulating | Polyurethane foam | |
| External Cladding Material | Stainless steel | |
| Tank Pressure (Running Test) | 800 kPa | |
| Maximum Working Pressure | 600 kPa | |
| Electric Element Voltage Rating | 110 Vac ± 10% | |
| Electric Element Power | 500 W [Mod. 06] | |
| Outputs Diameter | 1/2" | |
| Weight with Exchanger | 37.50 lbs. | 17.00 kg. |
| Weight without Exchanger | 31.96 lbs. | 14.50 kg. |
