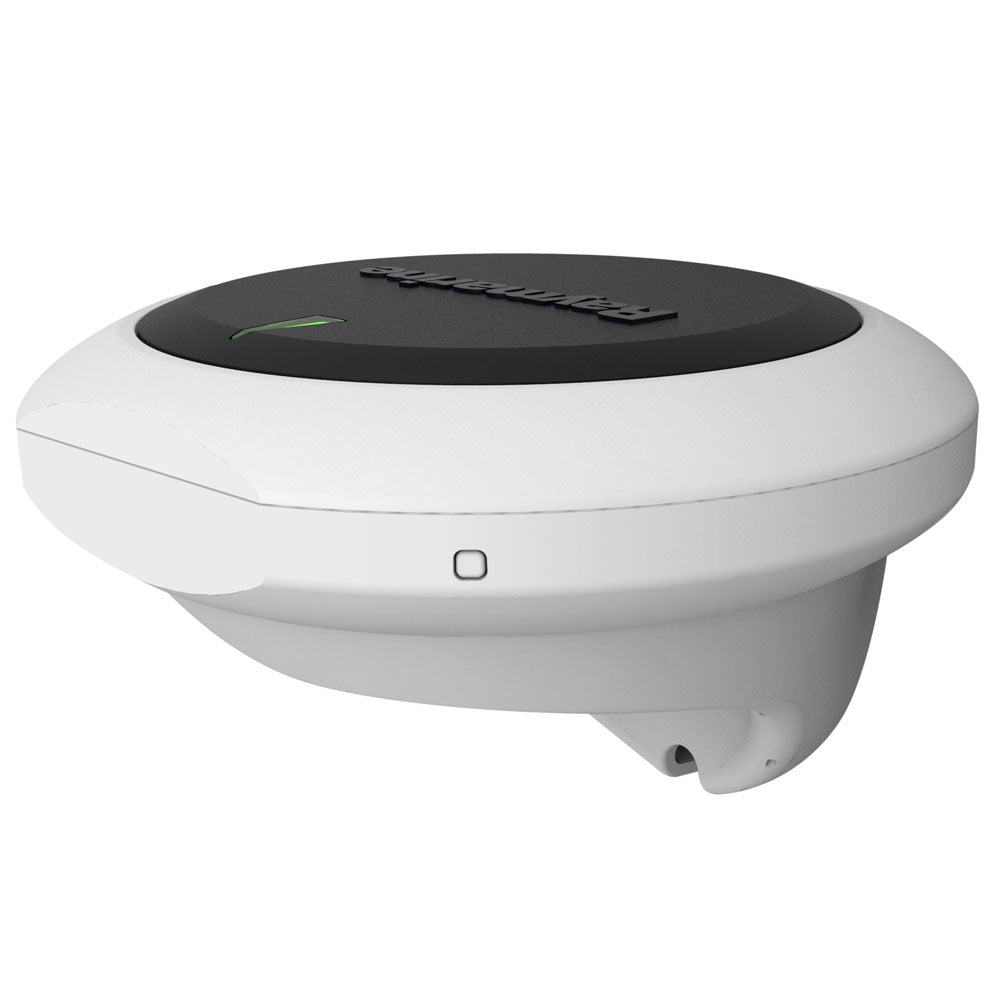

Raymarine Evolution EV-1 Sensor Core (E70096)

Name: Raymarine Evolution EV-1 Sensor Core (E70096)
Brand: Raymarine
SKU: RAY-E70096
Price: 898.95 USD
Availability: InStock

SKU: RAY-E70096 | Manuf. Code: E70096

$898.95 USD

Questions? Chat with our Tech Team

Backed by MAURIPRO Support.

DESCRIPTION

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Our Part # RAY-E70096 | Raymarine Part # E70096

FEATURES

Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change.
Flexible installation options. Mount above or below deck.
Simple SeaTalk^ng connectivity to the control head and ACU.
Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions.
Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes.
Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays.

TECHNICAL INFORMATION

Description	Imperial	Metric
Display Size	7 in	17.8 cm
Display Resolution	800 x 480	800 x 480
GPS	Internal 10 Hz	Internal 10 Hz
Sonar	CHIRP, DownVision	CHIRP, DownVision
Water Rating	IPX6/IPX7	IPX6/IPX7
Power Input	10.8 - 15.6 V DC	10.8 - 15.6 V DC
Dimensions	8.27 x 5.71 x 2.05 in	21.0 x 14.5 x 5.2 cm
