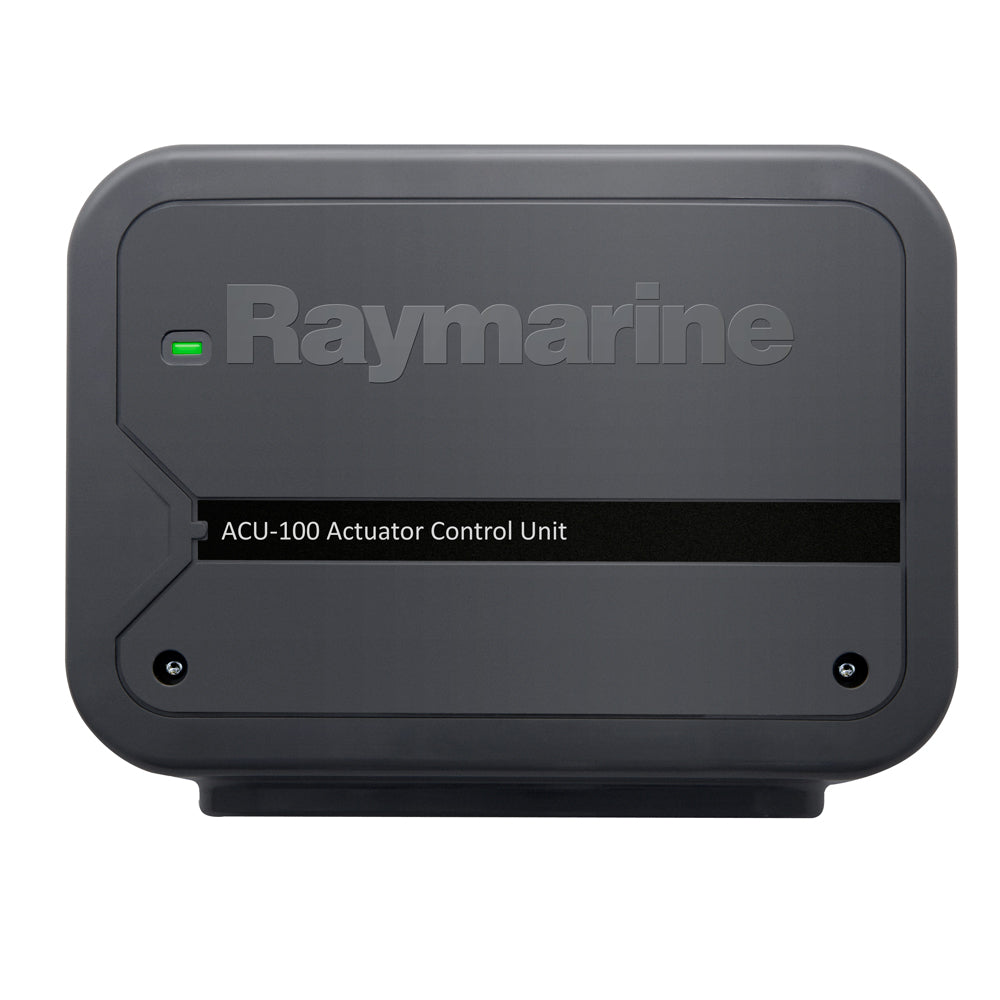

Raymarine ACU-100 Actuator Control Unit (E70098)

Name: Raymarine ACU-100 Actuator Control Unit (E70098)
Brand: Raymarine
SKU: RAY-E70098
Price: 648.95 USD
Availability: InStock

SKU: RAY-E70098 | Manuf. Code: E70098

$648.95 USD

Questions? Chat with our Tech Team

Backed by MAURIPRO Support.

DESCRIPTION

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Drive Current Output: Maximum continuous 7 Amps at supply voltage.

Drive Clutch Output: No clutch connection.

Connections:

Rudder reference sensor.
Power.
Drive motor.
Ground.

Installation Environment:

Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
Storage Temperature: -30 °C to +70 °C (-22 °F to +158 °F)
Relative Humidity: MAX 93%.

Waterproof rating:

Connector Panel: IPX2
Drive Electronics: IPX6.

Our Part # RAY-E70098 | Raymarine Part # E70098

FEATURES

Compact autopilot actuator control unit.
Powers small mechanical and hydraulic drives.
Part of Raymarine Evolution autopilots.
Provides robust power output.

TECHNICAL INFORMATION

Description	Imperial	Metric
Width	7.00 in.	180.00 mm.
Height	5 1/2 in.	140.00 mm.
Depth	2.00 in.	52.00 mm.
Weight	1.32 lb.	0.60 kg.
Relative humidity	Max. 93%
Storage temperature	-30 Â°C to +70 Â°C (-22 Â°F to 158 Â°F)
Operating temperature	-20 Â°C to +55 Â°C (-4 Â°F to 131 Â°F)
Power consumption (standby)	300 mA (12 V)
Operating voltage range	10.8 V dc to 15.6 V dc
