Raymarine ACU-400 Actuator Control Unit (Type 2 & 3 Hydraulic, Linear & Rotary Mechanical Drives) (E70100)

Name: Raymarine ACU-400 Actuator Control Unit (Type 2 & 3 Hydraulic, Linear & Rotary Mechanical Drives) (E70100)
Brand: Raymarine
SKU: RAY-E70100
Price: 2298.95 USD
Availability: InStock

SKU: RAY-E70100 | Manuf. Code: E70100

$2,298.95 USD

Questions? Chat with our Tech Team

Backed by MAURIPRO Support.

DESCRIPTION

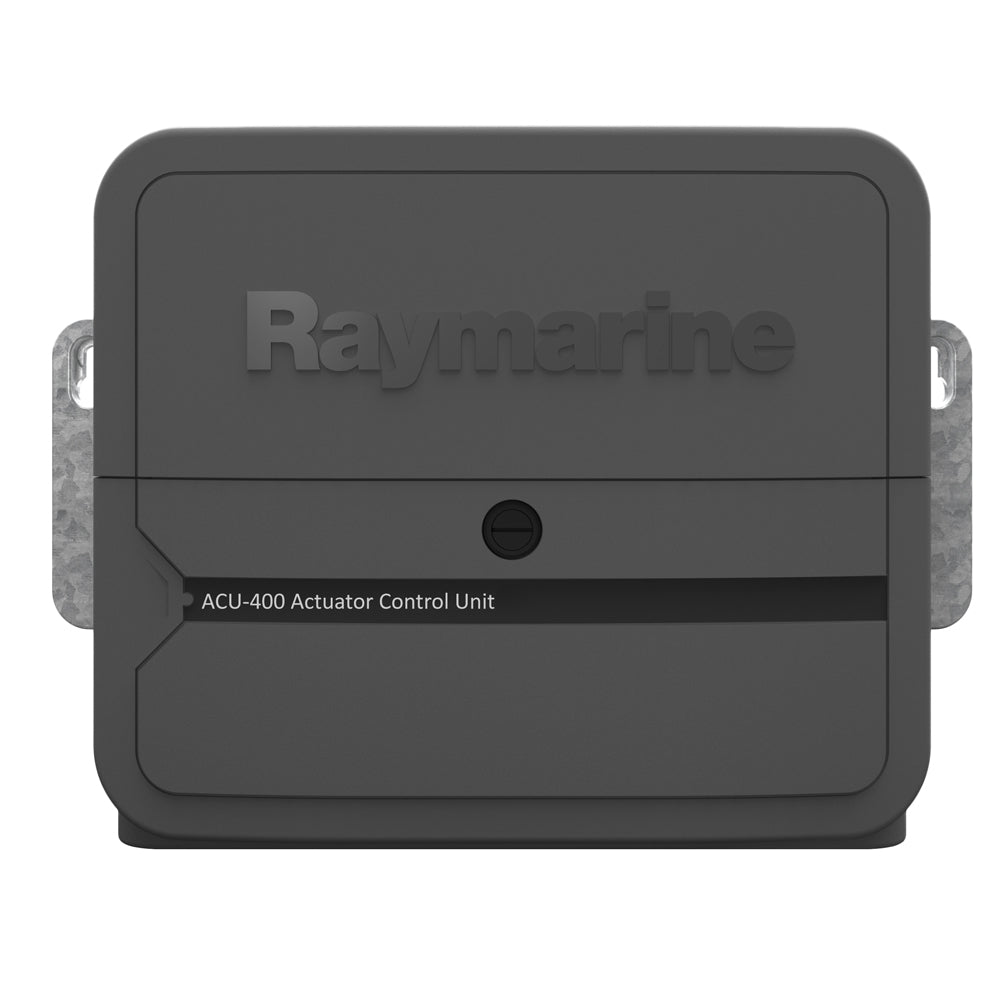

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Drive Current Output: Maximum continuous 30 Amps at supply voltage.

Drive Clutch Output:

Up to 4 Amp continuous at 12V on 12V systems.
Up to 4 Amp continuous at 24V on 24V systems.
Up to 4 Amp continuous at 12V on 24V systems.

Connections:

Includes the M81105 Rotary Rudder Reference.
Sleep switch.
Power.
Drive motor.
Drive clutch.
Ground.
Digital Input / Output (DIO).

Installation Environment:

Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
Storage Temperature: -30 °C to +70 °C (-22 °F to +158 °F)
Relative Humidity: MAX 93%

Our Part # RAY-E70100 | Raymarine Part # E70100

FEATURES

Manages Type 2 and Type 3 drive units.
Integral to Raymarine Evolution autopilot systems.
Delivers high power for larger steering.
Robust marine-grade construction.

TECHNICAL INFORMATION

Description	Imperial	Metric
Width	11 2/9 in.	285.00 mm.
Height	8 1/3 in.	211.50 mm.
Depth	2 1/2 in.	64.50 mm.
Weight	4.84 lb.	2.20 kg.
Relative humidity	Max. 93%
Storage temperature	-30 Â°C to +70 Â°C (-22 Â°F to 158 Â°F)
Operating temperature	-20 Â°C to +55 Â°C (-4 Â°F to 131 Â°F)
Power consumption (standby) - main power supply	300 mA (12 / 24 V)
Power output to SeaTalkng bus	3 A @ 12 V (fuse protected at 3 A)
Power consumption (standby) - SeaTalkng bus	20 mA (12 V)
Nominal supply voltage	12 / 24 V dc
Operating voltage range	10.8 V dc to 31.2 V dc
