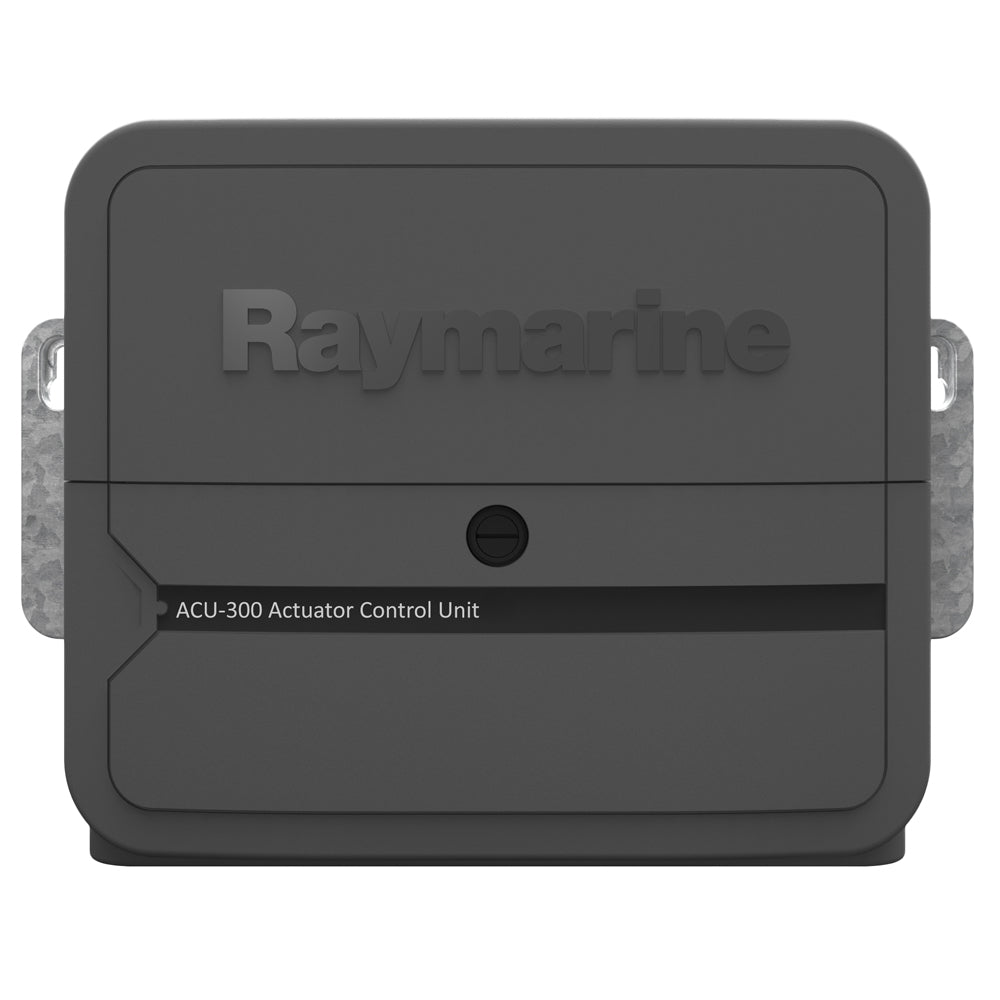

Raymarine ACU-300 Actuator Control Unit (For Solenoid-Controlled Steering & Constant Running Hydraulic Systems) (E70139)

Name: Raymarine ACU-300 Actuator Control Unit (For Solenoid-Controlled Steering & Constant Running Hydraulic Systems) (E70139)
Brand: Raymarine
SKU: RAY-E70139
Price: 2248.95 USD
Availability: InStock

SKU: RAY-E70139 | Manuf. Code: E70139

$2,248.95 USD

Questions? Chat with our Tech Team

Backed by MAURIPRO Support.

DESCRIPTION

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Drive Current Output: Maximum continuous 5 Amps at supply voltage.

Drive Clutch Output: No clutch connection.

Connections:

Includes the M81105 Rotary Rudder Reference.
Sleep switch.
Power.
Solenoid drive out / return.
Ground.

Installation Environment:

Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
Storage Temperature: -30 °C to +70 °C (-22 °F to +158 °F)
Relative Humidity: MAX 93%

Our Part # RAY-E70139 | Raymarine Part # E70139

FEATURES

Designed for solenoid-controlled steering systems.
Manages constant running hydraulic pumps.
Integrates with Evolution autopilot systems.
Provides precise steering control.

TECHNICAL INFORMATION

Description	Imperial	Metric
Width	11 2/9 in.	285.00 mm.
Height	8 1/3 in.	211.50 mm.
Depth	2 1/2 in.	64.50 mm.
Weight	4.84 lb.	2.20 kg.
Relative humidity	Max. 93%
Storage temperature	-30 Â°C to +70 Â°C (-22 Â°F to 158 Â°F)
Operating temperature	-20 Â°C to +55 Â°C (-4 Â°F to 131 Â°F)
Power consumption (standby) - main power supply	300 mA (12 / 24 V)
Power output to SeaTalkng bus	3 A @ 12 V (fuse protected at 3 A)
Power consumption (standby) - SeaTalkng bus	20 mA (12 V)
Nominal supply voltage	12 / 24 V dc
Operating voltage range	10.8 V dc to 31.2 V dc
