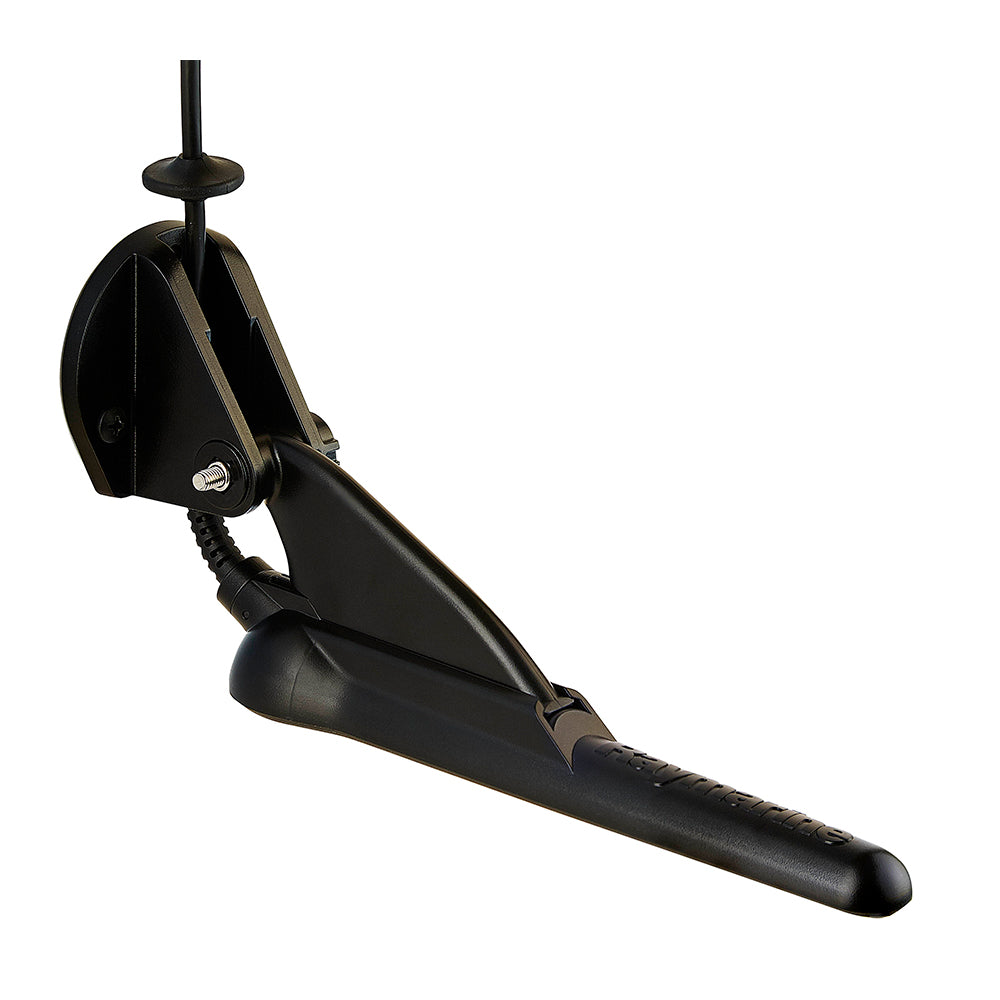

Raymarine CPT-100 DVS Transom Mount CHIRP Transducer (A80351)
DESCRIPTION
DESCRIPTION
Transom mount transducers are recommended for planing hulls of less than 27 feet (8 meters), such as personal watercraft and powerboats with outboard, inboard-outboard and jet drives. They are not recommended for large or twin screw inboard boats because aerated water from the propeller reduces performance. They are also not recommended for operation at very high speeds.
Transom mounts adjust to transom angles from 3° - 16°. For angles greater than 16°, a tapered plastic, wood or metal shim will be needed. However, the transducer should be adjusted so it is angled slightly forward when the boat is in the water.
Our Part # RAY-A80351 | Raymarine Part # A80351
FEATURES
FEATURES
Features:
- Installation: Transom Mount
- Material: Urethane
- Max Depth (Ft): DV=600 | FF=900
- Frequency (KHz): CHIRP DownVision | CHIRP DownVision / Fishfinder
- Beam Width (L/H) 25°/60°
- Records: Depth / Temperature
- Approved Hull Material: Fibreglass / Wood / Metal
- Cable Length (Ft/M): 33'/10M
- Deadrise: 0-90° Transom
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Cable Length | 1.2 m | 1.2 m |
| Connector Type | 9-pin | 9-pin |
| Compatibility | Axiom, Element | Axiom, Element |
| Cable Dia. | 5/16 in | 8.0 mm |
