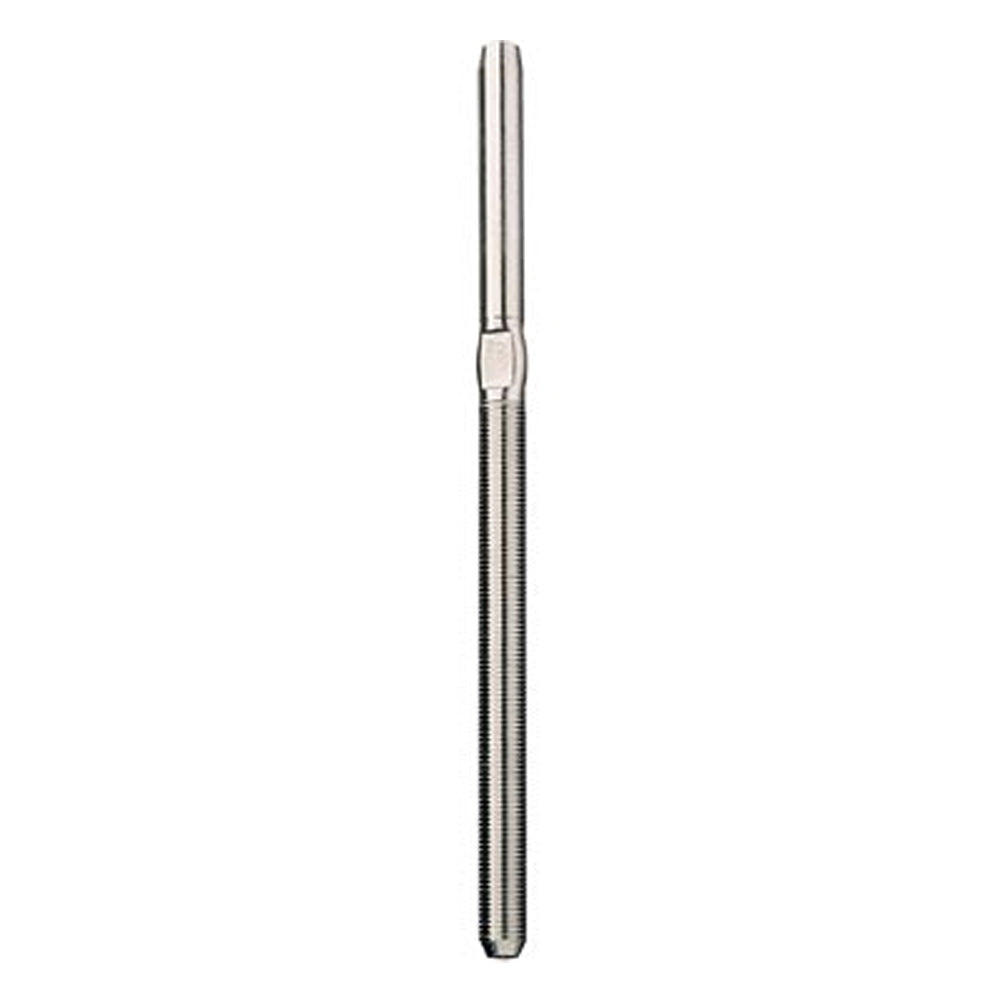

Ronstan Standing Rigging - Swage Stud - Wire: 10.0 mm & Thread: 5/8 in (RF1512M1010)
SKU:
RONRF1512M1010
|
Manuf. Code:
RF1512M1010
15% off
Unit price
/
Unavailable
Ronstan Standing Rigging - Swage Stud - Wire: 10.0 mm & Thread: 5/8 in (RF1512M1010) is backordered and will ship as soon as it is back in stock.
You Save $14 This Week!
Knowledgeable STAFF
Ronstan Standing Rigging - Swage Stud - Wire: 10.0 mm & Thread:...
Unit price
/
Unavailable
Description
Description
Threaded swage terminals (3/32 -1 in wire) have rolled right hand UNF threads for greater strength.
Our Part # RONRF1512M1010 | Ronstan Part # RF1512M1010
Our Part # RONRF1512M1010 | Ronstan Part # RF1512M1010
Our Part # RONRF1512M1010 | Ronstan Part # RF1512M1010
Features
Features
Features:
- Fine rolled threads.
- B.L.=8390 kg (18450 lb).
Technical Information
Technical Information
Weight: 460 g / 16.2 oz
Cable Diameter: 10 mm
Suits Turnbuckle: RF1578M1010
Thread: 5/8 in

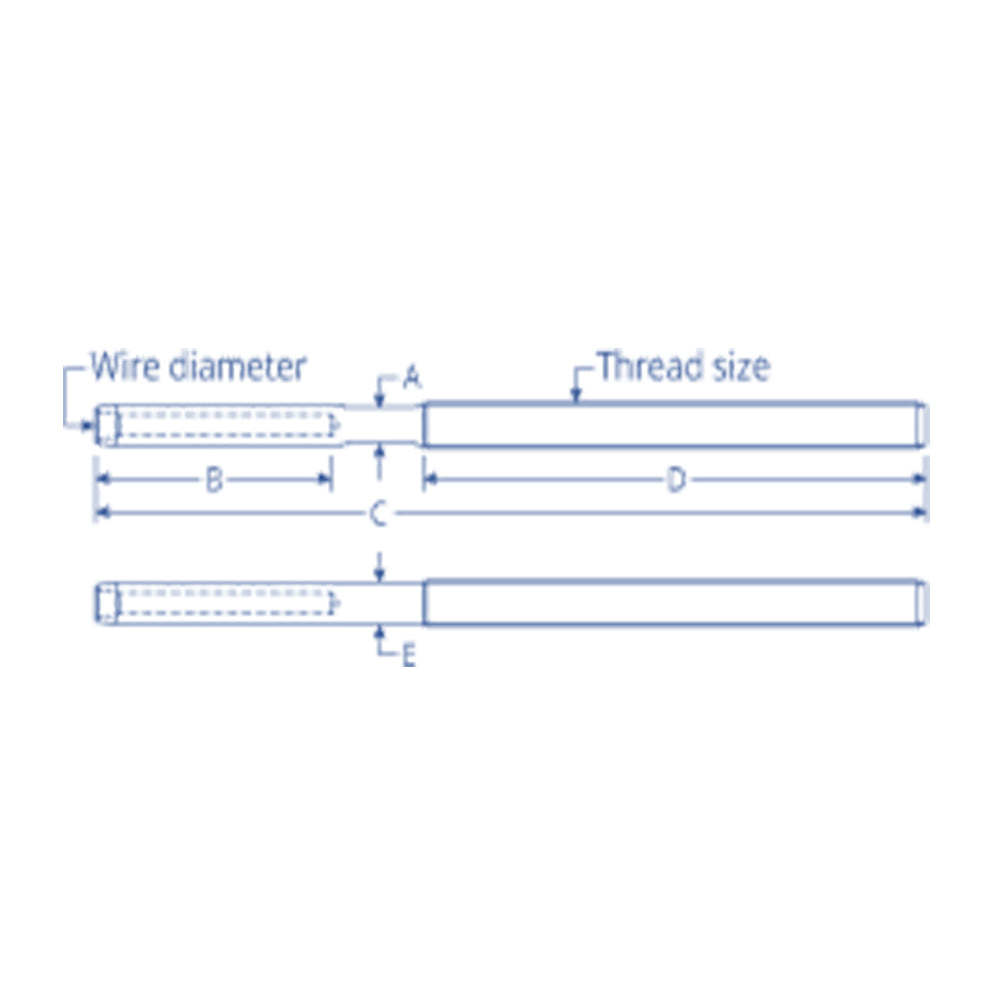

A: 15.8 mm / 9/16 in
B: 110 mm / 4 5/16 in
C: 336 mm / 13 1/4 in
D: 191 mm / 71/2 in
