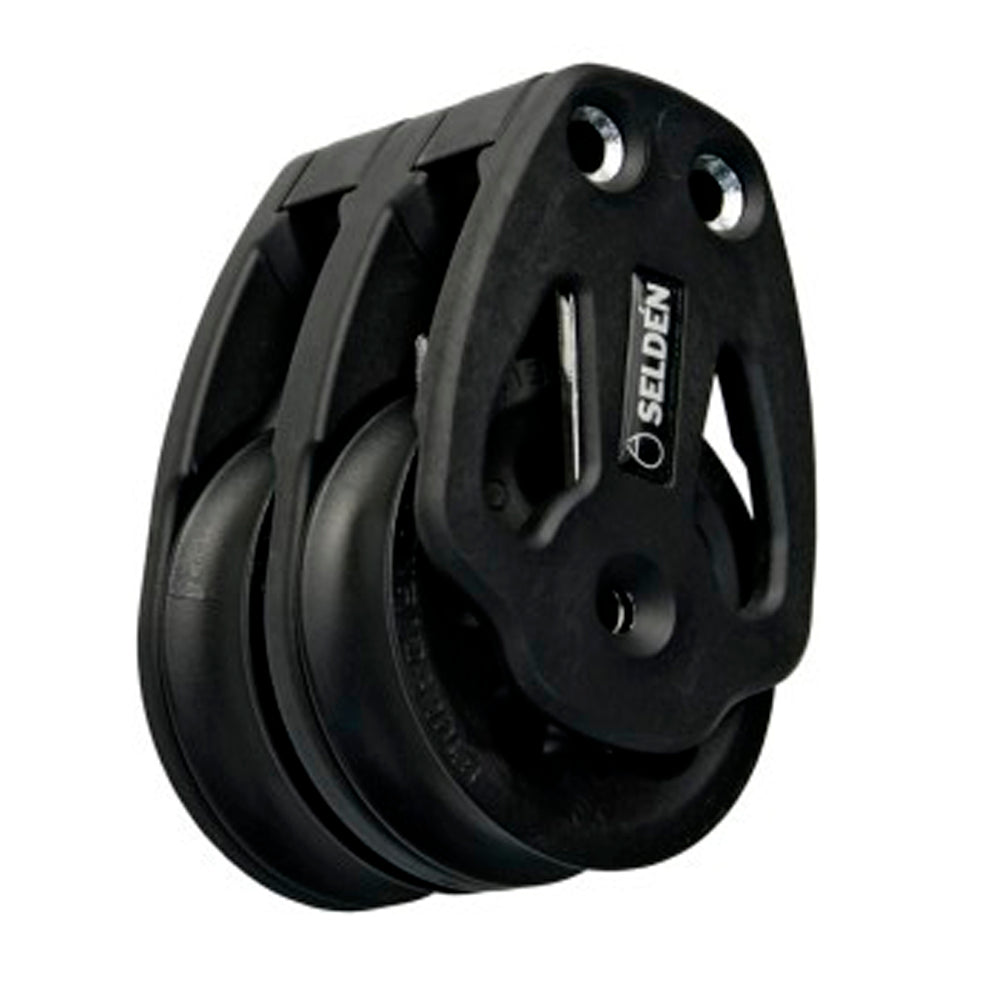

Selden 80 Plain Bearing Block - Double Cheek (408-001-20R)
Selden 80 Plain Bearing Block - Double Cheek (408-001-20R) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Selden 80 Plain Bearing Block - Double Cheek (408-001-20R)
Description
Description
The Selden 80 Plain Bearing Block - Double Cheek (408-001-20R) is a deck-mounted block designed for line routing on medium-sized boats. It features a glass fiber reinforced sheave with polymer bushings, glass fiber reinforced polyamide sides, and stainless steel straps for durability. The block is easy to install with 3 M8 screws. With an 80mm sheave diameter, it handles heavy loads up to 2000kg on the lower sheave and 1000kg on the upper. Ideal for high-performance rigging with reliable operation. Perfect for demanding sailing conditions.
Our Part # SEL40800120R | Mfr. Part # 408-001-20R
Technical Information
Technical Information
Type: Double Cheek
Weight: 628 g
Safe Working Load: 2000 kg
Breaking Load: 4000 kg
System: PBB80
Max Line Size: 16 mm
Upper breaking load: 20.00 kN
Upper safe working load: 10.00 kN
Shackle Diameter: 3xM8 (not included)
