Selden 100 Plain Bearing Block - Double Cheek (410-001-16R)
Selden 100 Plain Bearing Block - Double Cheek (410-001-16R) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Selden 100 Plain Bearing Block - Double Cheek (410-001-16R)
Description
Description

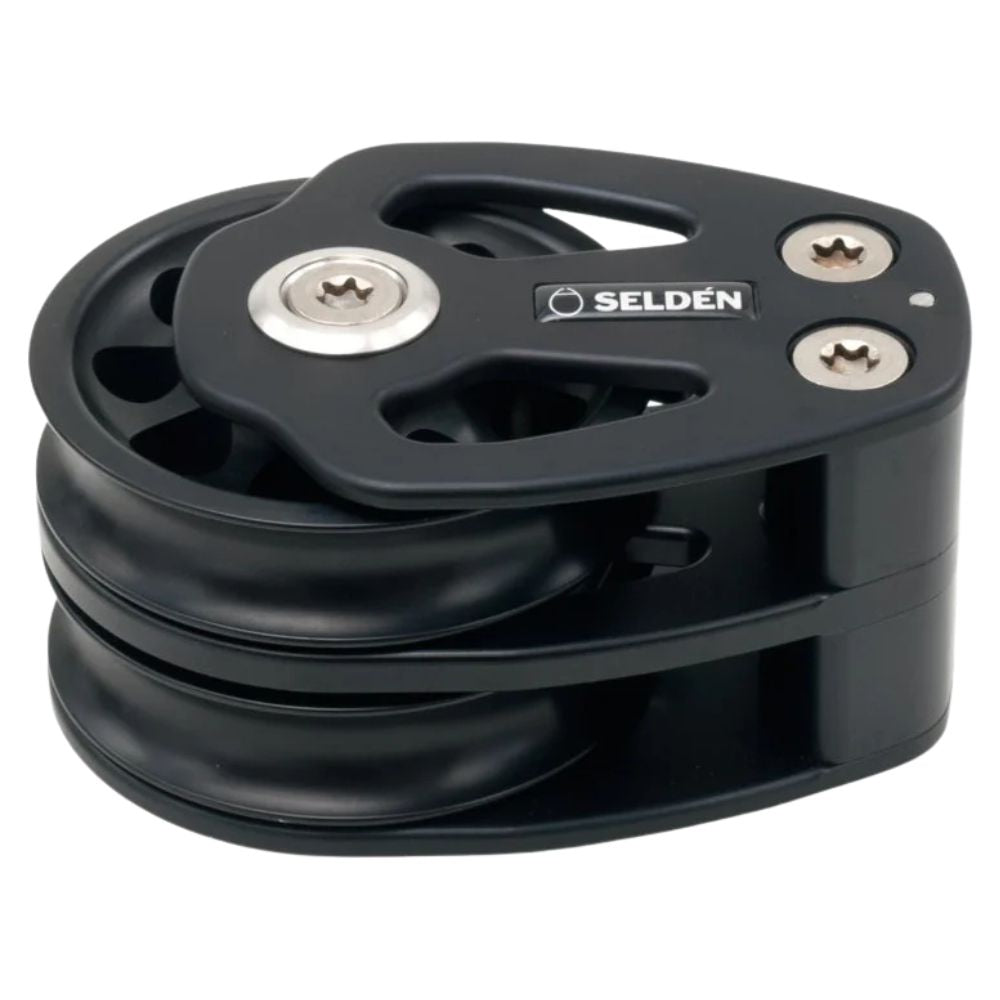

The Selden 100 Plain Bearing Block - Double Cheek (410-001-16R) is designed for up to 4-ton working load on the lower sheave and 2-ton load on the upper. It features plain bearings with polymer bushings and four axial Delrin thrust bearings for smooth operation. The machined, black anodized aluminium sheave and cheeks are paired with stainless parts insulated from aluminium to prevent corrosion. Ideal for guiding sheets to a winch, it is easy to maintain and install with 3 x M10 screws. Perfect for high-performance rigging systems.
Our Part # SEL41000116R | Mfr. Part # 410-001-16R
Technical Information
Technical Information
Type: Double Cheek
Weight: 1390 g
Safe Working Load: 4000 kg
Breaking Load: 8000 kg
Width: 20 mm
