The 18 mm block features stainless steel ball bearings and an integrated stainless inner race and rivet for optimal strength-to-weight. The 40 mm blocks feature composite sheaves that spin freely on Delrin ball bearings with curved bearing races. They have no metal shackles or rivets, making them the lightest soft-attach blocks Harken has ever designed.
Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Footnote: Max line diameter based on 18 mm block
Our Part # HAR2162 | Mfr. Part # 2162
FEATURES
FEATURES

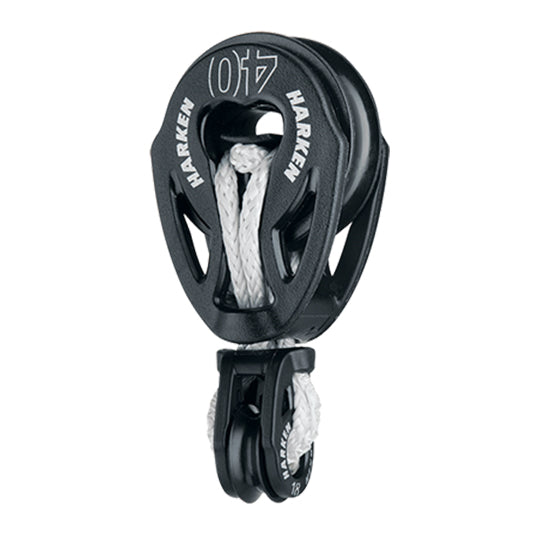

- 40mm double sheave block.
- Soft attachment Carbo T2 design.
- Includes additional 29mm Carbo T2.
- Optimized for traveler systems.
- Lightweight, high-strength composite.
KNOWLEDGE BASE
KNOWLEDGE BASE
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 1 9/16 in | 40.0 mm |
| Length | 3 1/2 in | 88.0 mm |
| Weight | 1.38 oz | 39.0 g |
| Maximum Line | 3/16 in | 5.0 mm |
| Maximum working load | 275.0 lb | 125.0 kg |
| Breaking Load | 992.0 lb | 450.0 kg |
