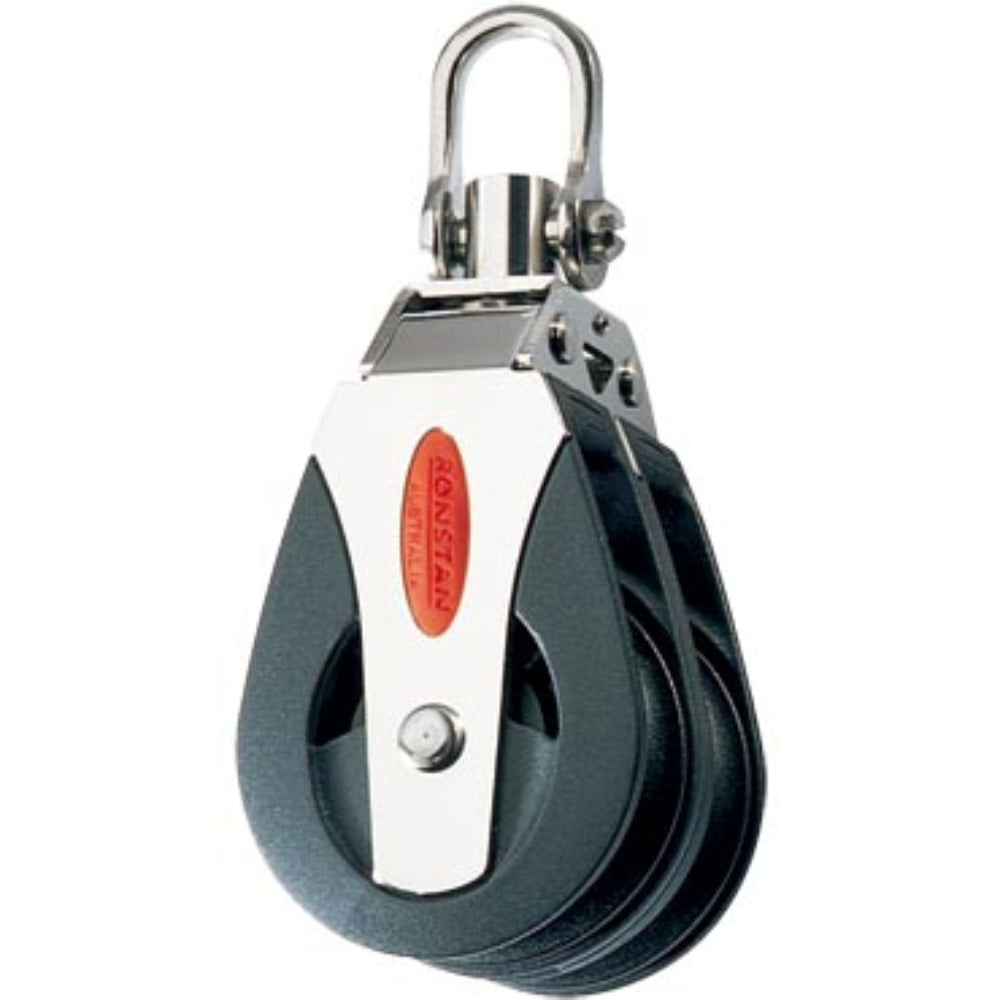

Ronstan Series 50 BB Block, Double, Swivel Head (RF50200)
SKU:
RON-RF50200
|
Manuf. Code:
RF50200
27% off
Unit price
/
Unavailable
Ronstan Series 50 BB Block, Double, Swivel Head (RF50200) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Ronstan Series 50 BB Block, Double, Swivel Head (RF50200)
Unit price
/
Unavailable
Description
Description
A complete range of single-piece forged products for fastenings applications. Outstanding breaking loads. Available in different sizes.
Our Part # RON-RF50200| Ronstan Part # RF50200
Features
Features
Features:
- Low friction, 2-stage ball bearing system
- High static and dynamic load capacity
- Lightweight
- Cheek cut-outs for easy bearing maintenance
- Slotted pin shackle eliminates fouled lines
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sheave Ø | 2.00 in. | 50.00 mm. |
| Maximum Rope | 1/2 in. | 12.00 mm. |
| Pin Ø | 1/4 in. | 6.00 mm. |
| Maximum Working Load | 1764.00 lb. | 800.00 kg. |
| Breaking Load | 4410.00 lb. | 2000.00 kg. |
| Weight | 8.96 oz. | 254.00 gr. |
