Ronstan Series 60 Core Block, Fiddle, Snap Shackle
RONRF64503
$244.89 USDList Price: $288.10 USDUnit price /Unavailable -

Ronstan Series 60 Core Block, Fiddle
RONRF64500
$172.06 USDList Price: $202.42 USDUnit price /Unavailable -

Ronstan Series 55 RT Orbit Block, Fiddle Becket Cleat Swivel
RONRF56530
$190.26 USDList Price: $223.84 USDUnit price /Unavailable -
-
-
-
-
-
-
-
-

Lewmar 72mm Fiddle Becket Synchro Block
LEW29927234BK
$77.15 USDList Price: $115.95 USDUnit price /Unavailable -

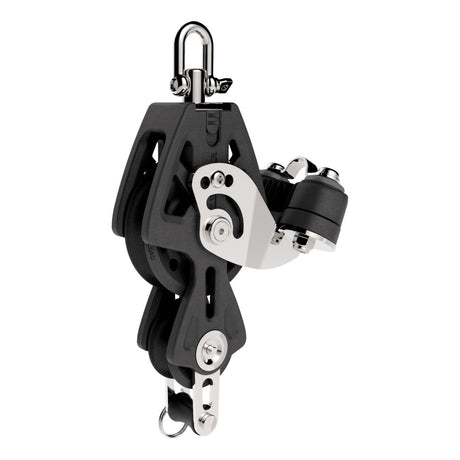

Lewmar 60mm Fiddle Becket Cam Synchro Block
LEW29926039BK
$105.00 USDList Price: $154.95 USDUnit price /Unavailable -

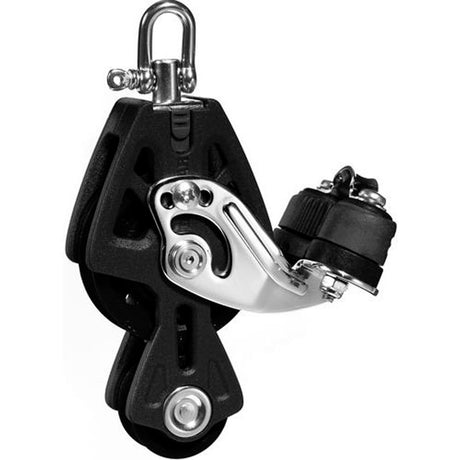

Lewmar 60mm Fiddle Cam Synchro Block
LEW29926037BK
$103.00 USDList Price: $152.95 USDUnit price /Unavailable -
-
-

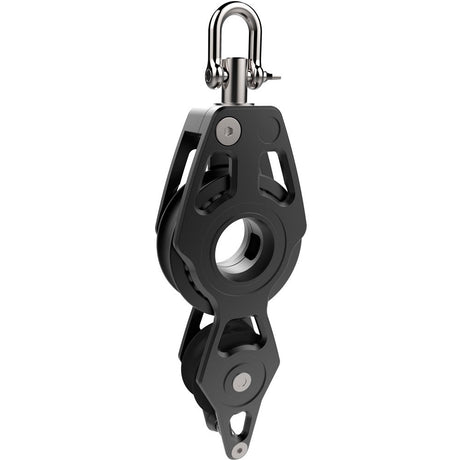

LEW29901834
$294.00 USDList Price: $444.95 USDUnit price /Unavailable -
-

Lewmar 72mm HTX Fiddle Block - Becket
LEW29197234
$320.00 USDList Price: $483.95 USDUnit price /Unavailable -

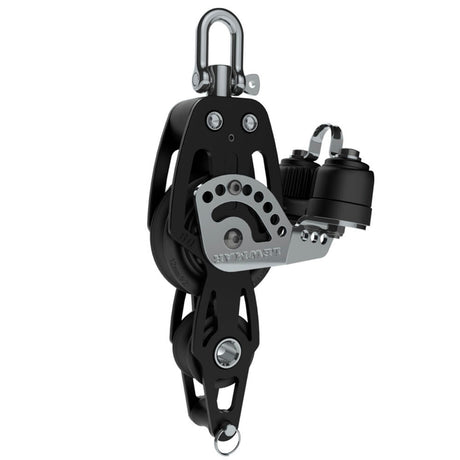

Lewmar 60mm HTX Fiddle with Becket and Cam
LEW29196039
$249.00 USDList Price: $376.95 USDUnit price /Unavailable
Fiddle Blocks: Sheave Size, Working Load, Becket and Cam Cleat
A fiddle block puts a large sheave and a smaller one in the same cheeks, which is why our catalog lists two sheave diameters for most of them (Ronstan Series 50 is 50 + 34 mm, Harken Cruising ESP 75 is 75 + 45 mm). The narrow body lets one block take two parts of line where a pair of separate singles will not fit — the usual jobs are mainsheet tackles, boom vangs and other control-line purchases. Barton describes its fiddle blocks as suited to mainsheet, vang and lead blocks, and Lewmar lists halyard tuning, mast-foot and mainsheet use for its Synchro range. This collection runs from a 22 mm Harken Micro to a 150 mm Antal block, so the real decision is sheave diameter, working load, bearing type and which extras you need on the block itself.
Fiddle Block Families in This Collection
- Harken Micro 22 mm: 22 mm sheave, 5 mm maximum line, 91 kg working load, with V-Jam versions — for light control lines. See the Micro 22 mm fiddle and the V-Jam version.
- Harken Carbo 40, 57 and 75 mm: the Carbo 40 is rated 220 kg working load and the Carbo 57 359 kg, with plain, becket, 150 Cam-Matic and Carbo-Cam versions. The 57 mm is also made as a triple fiddle (1,080 kg working load, 6 mm maximum line) and a quad. Start with the Carbo 40 or the Carbo 57.
- Harken Element 45, 60 and 80 mm: swivel-head fiddles rated 700 kg (8 mm line), 1,100 kg (10 mm line) and 2,200 kg (14 mm line), with becket and 150 Cam-Matic options. See the Element 45, Element 60 and Element 80.
- Harken Classic Midrange 76 mm and Cruising ESP 75 mm: the Midrange 76 mm is rated 816 kg with 14 mm maximum line and comes with 280 Cam-Matic and becket versions; the stainless-steel Cruising ESP 75 mm is a swivel fiddle rated 1,587 kg working load.
- Lewmar HTX: 50 mm (800 kg, 10 mm line), 60 mm (1,100 kg, 12 mm line) and 72 mm (2,000 kg, 14 mm line), in plain, becket and becket-and-cam versions (the 50 mm also in cam only). Lewmar describes the 60 mm HTX with aluminium side cheeks, a central plain bearing, side-thrust Delrin ball bearings and a grub-screw swivel-head lock. See the HTX 50 mm, HTX 60 mm and HTX 72 mm.
- Lewmar Synchro and 80 mm: Synchro fiddles in 50, 60, 72 and 90 mm (the 50 mm is rated 450 kg and the 60 mm 800 kg, both for 10 mm line), plus a plain 80 mm fiddle rated 1,000 kg. Lewmar describes the 60 mm Synchro with a stainless strap and glass-fibre-reinforced cheeks that stop lines wedging. See the 60 mm Synchro and the 80 mm fiddle.
- Ronstan: Series 29 (300 kg working load, 8 mm line), Series 40 (350 kg BB, 400 kg AP, 8 mm line), Series 50 (500 kg BB, 750 kg AP, 10 mm line), Series 55 Orbit (500 kg BB, 250 kg RT) and Series 60 Core (1,000 kg, 12 mm line), with becket, cleat and swivel versions. See the Series 29, Series 40 BB, Series 50 BB, Series 55 Orbit BB with becket, cleat and swivel and Series 60 Core.
- Antal OPF one-piece-frame: 50, 60, 70, 80 and 100 mm single fiddles, with becket and cam-cleat versions on the smaller sizes. The 50 mm is rated 600 kg, the 60 mm 800 kg, the 80 mm with becket 2,200 kg and the 100 mm 3,500 kg. Antal also makes a composite-fibre 150 mm fiddle with becket, rated 6,500 kg safe working load for 20 mm line. See the OPF 50 mm, OPF 60 mm with cam cleat, OPF 80 mm with becket, OPF 100 mm and the 150 mm.
- Ubi Maior Regatta: 60 mm and 80 mm fiddles in high-load and low-load versions, with or without becket: 1,800 kg and 1,400 kg safe working load on the 60 mm (12 mm line), 2,400 kg and 1,850 kg on the 80 mm (14 mm line). See the RT60 high load and the RT80 high load.
- Barton Marine Series 3: a 45 mm swivel fiddle for dinghies, day boats and light cruising yachts, rated 400 kg safe working load for 10 mm line — the Series 3 fiddle swivel.
Makers use different wording for the same idea: Harken and Ronstan give a maximum working load, Lewmar a working load limit, Antal a load limit or safe working load, Ubi Maior a safe working load. Read the figure on the product page and treat it as the limit for that block, not for the whole tackle.
Which Fiddle Block for Which Line
Start with the line. Each listing gives a maximum line diameter, and a sheave that is too small for the rope adds friction and wears the cover. Reading the figures above:
- 5 to 8 mm line: Harken Micro 22 mm (5 mm), Harken Element 45 and Ronstan Series 29 and 40 (8 mm).
- 10 mm line: Harken Element 60, Lewmar HTX 50 and Synchro 50 and 60, Ronstan Series 50 and 55, Antal OPF 50, Barton Series 3.
- 12 mm line: Lewmar HTX 60, Ronstan Series 60 Core, Ubi Maior RT60, Antal OPF 60.
- 14 mm line: Harken Element 80 and Midrange 76, Lewmar HTX 72, Antal OPF 80, Ubi Maior RT80.
- 16 to 20 mm line: Antal OPF 100 (16 mm) and the Antal 150 mm composite-fibre fiddle (20 mm).
Then check that the working load is comfortably above the highest load the tackle will see. If the block sits at the high-load end of a mainsheet, step up a size rather than running it at its limit. Our fiddle block guide shows how a pair of fiddles builds a tackle.
Becket, Swivel Head and Cam Cleat
- Becket: a fixed eye on the block where the standing end of the line is tied. A tackle built from two blocks needs at least one block with a becket.
- Cam cleat: a cleat on the block so the tail can be locked and released at the block. Look for 150 Cam-Matic or 280 Cam-Matic (Harken), Carbo-Cam, V-Jam on the Micro, and the “Cam” or “Cleat” suffix on Lewmar, Ronstan and Antal.
- Swivel head: lets the block align with the load. The Harken Element and Cruising ESP, Ronstan Orbit and Barton Series 3 fiddles here are swivels.
Ball Bearing, Plain Bearing or Roller Bearing
Ball-bearing fiddles roll under load and suit lines you trim often. Ronstan BB blocks use a two-stage ball-bearing system, and Barton describes its ball-race blocks as extremely low friction even under high load. Plain-bearing blocks, such as Barton’s acetal sheave on a brass bearing, are made to run free under high loads; Lewmar lists plain-bearing blocks for heavy, static loads like halyard tuning, mainsheets, mast-foot blocks and boom vangs. Ubi Maior uses a roller-bearing Torlon race in its Regatta fiddles, and Antal runs its sheaves on composite-fibre bearings with side ball bearings. The comparison is laid out in our ball-bearing vs plain-bearing guide.
Related Block Collections
Building a tackle? Pair these with double blocks, single blocks and ratchet blocks. For a full mainsheet, see mainsheet systems and mainsail traveler cars, or browse the Harken Carbo, Element and Midrange block ranges.
Frequently Asked Questions
What is a fiddle block?
A block with a large sheave and a smaller sheave in the same cheeks, so it takes two parts of line in a narrow package. Typical uses are mainsheet tackles, vangs and control lines. See how to use fiddle blocks.
What size fiddle block do I need?
Match the line first: the maximum line diameter is on each listing, from 5 mm on the Harken Micro to 20 mm on the Antal 150 mm. Then pick a working load above the highest load in the tackle.
Do I need a becket or a cam cleat?
You need a becket on at least one block if you are tying off the standing end of a two-block tackle. Choose a cam cleat if you want to hold the tail at the block, as on a vang or a trimmed control line.
Ball bearing or plain bearing for a mainsheet?
Ball-bearing blocks give lower friction on lines you trim often; plain-bearing blocks are made for heavy, static loads. Lewmar lists plain-bearing blocks for mainsheet use, and Barton describes its ball-race blocks as low friction under high loads — so match the block to how often the line moves.
Which is the strongest fiddle block here?
The Antal composite-fibre 150 mm fiddle with becket, rated 6,500 kg safe working load for 20 mm line. For cruiser mainsheets, the Lewmar HTX 72 mm (2,000 kg) and the 80 mm Harken Element, Antal OPF and Ubi Maior blocks (2,200 to 2,400 kg) are the next tier down.
