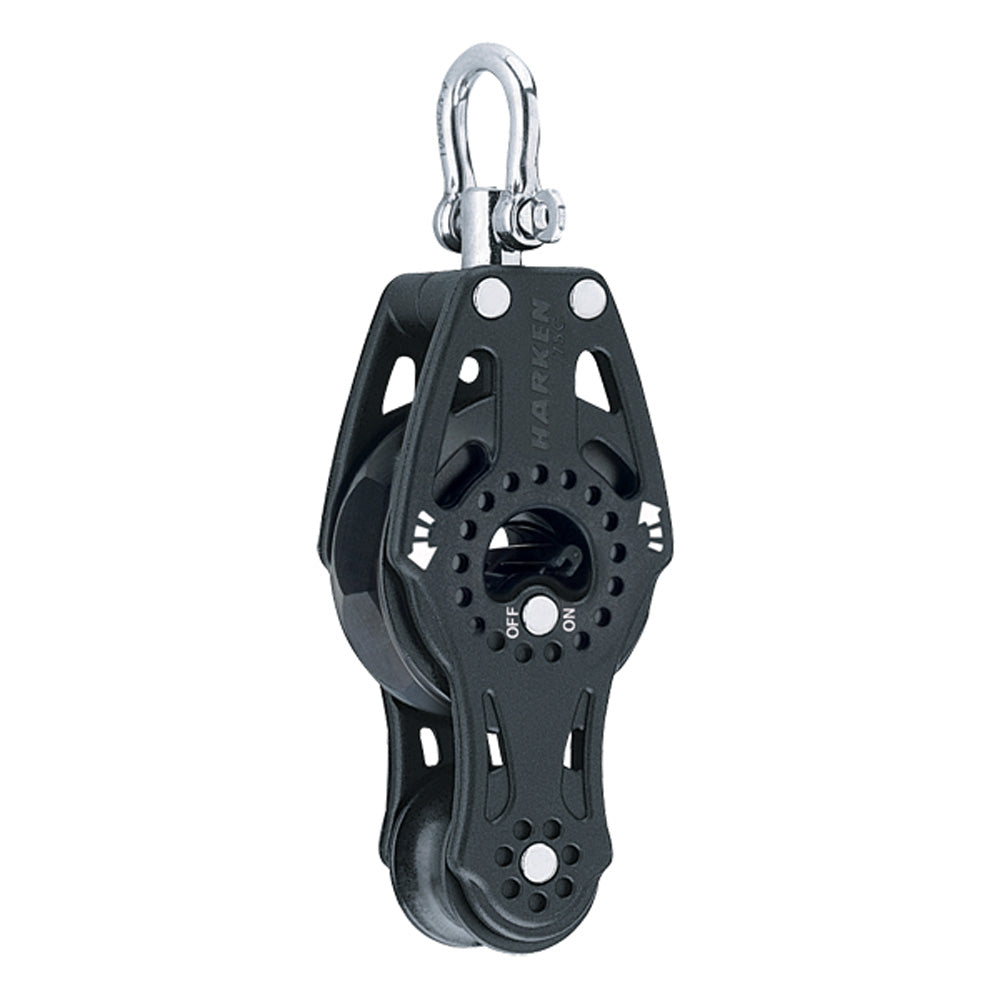

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.
Our Part # HAR2694 | Mfr. Part # 2694
FEATURES
FEATURES
- 75mm Carbo block for durability.
- Ratchet mechanism provides secure line grip.
- Fiddle design for multiple lines.
- Lightweight composite construction.
TECHNICAL INFORMATION
TECHNICAL INFORMATION

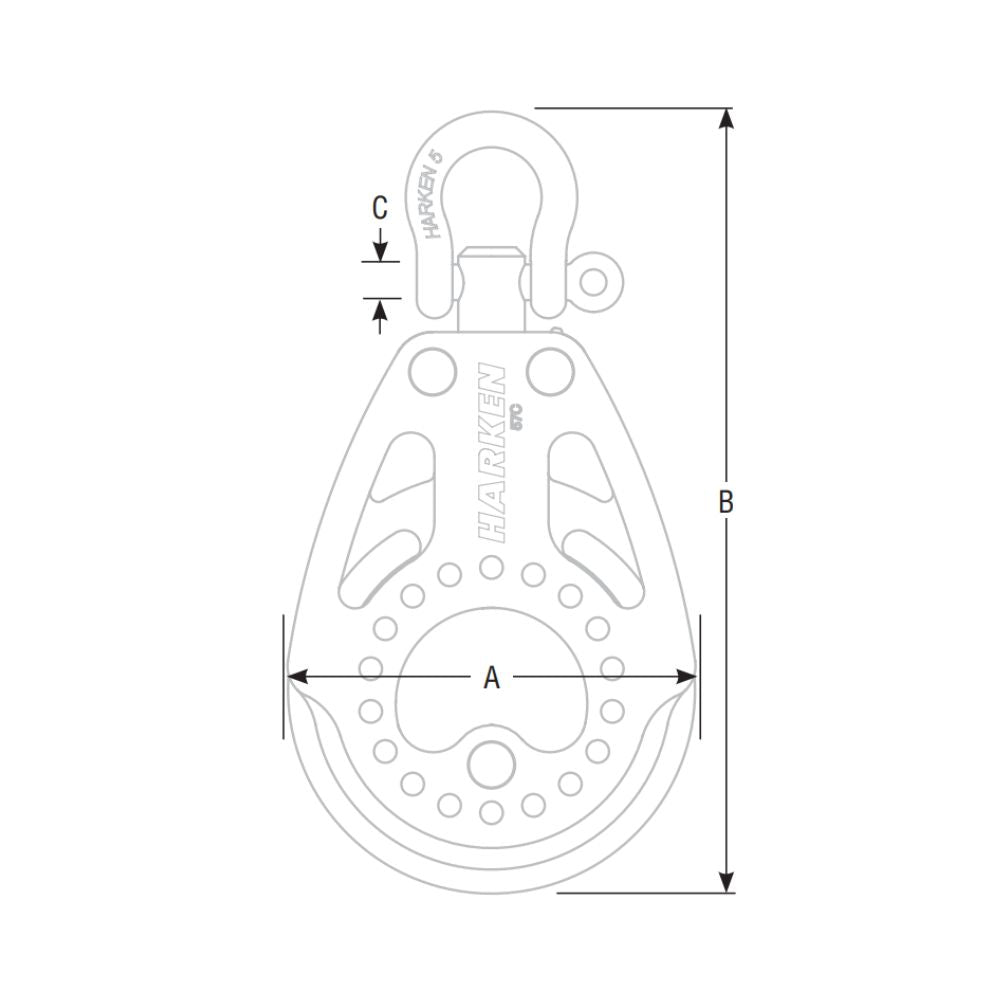

| Description | Imperial | Metric |
|---|---|---|
| A | 2 15/16 in | 75.0 mm |
| B | 6 3/16 in | 157.0 mm |
| C | 1/2 in | 12.0 mm |
| Maximum line diameter | 1/4 in | 6.0 mm |
| Maximum working load | 1212.0 lb | 550.0 kg |
| Breaking load | 3637.0 lb | 1650.0 kg |
