DESCRIPTION

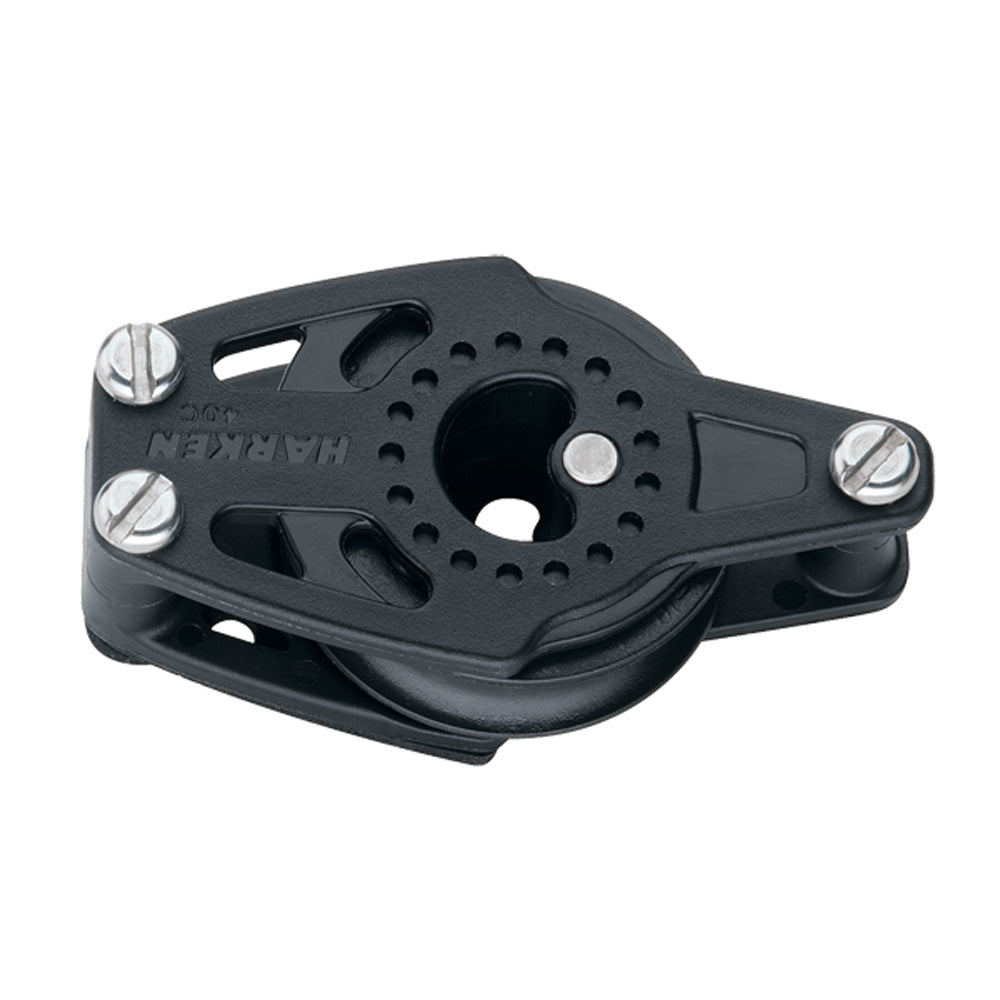

Low-friction Carbo Air blocks are lightweight, strong, reliablend affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.

Our Part # HAR2163 | Mfr. Part # 2163

FEATURES

  • 40mm single sheave with becket.
  • Durable composite cheek block.
  • Low-friction ball bearing system.
  • Secure side-mount installation.

TECHNICAL INFORMATION

DescriptionImperialMetric
Sheave1 9/16 in40.0 mm
Length2 15/16 in74.0 mm
Weight4.9 oz139.0 g
Maximum Line3/8 in10.0 mm
Mounting Hole Spacing2 1/2 in63.0 mm
Maximum working load485.0 lb220.0 kg
Breaking Load1620.0 lb735.0 kg

KNOWLEDGE BASE

Harken Marine CatalogWhere to find each Harken range in the 2026 Marine Catalog (and what the 2027 and 2023 new-product supplements add).View Selection Guide →

Click here for the Owners Manual.
