DESCRIPTION
DESCRIPTION
Low-friction Carbo Air blocks are lightweight, strong, reliablend affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.
Footnote: Maximum working loads and breaking loads for blocks based on cam strengths.
Our Part # HAR2667 | Mfr. Part # 2667
FEATURES
FEATURES

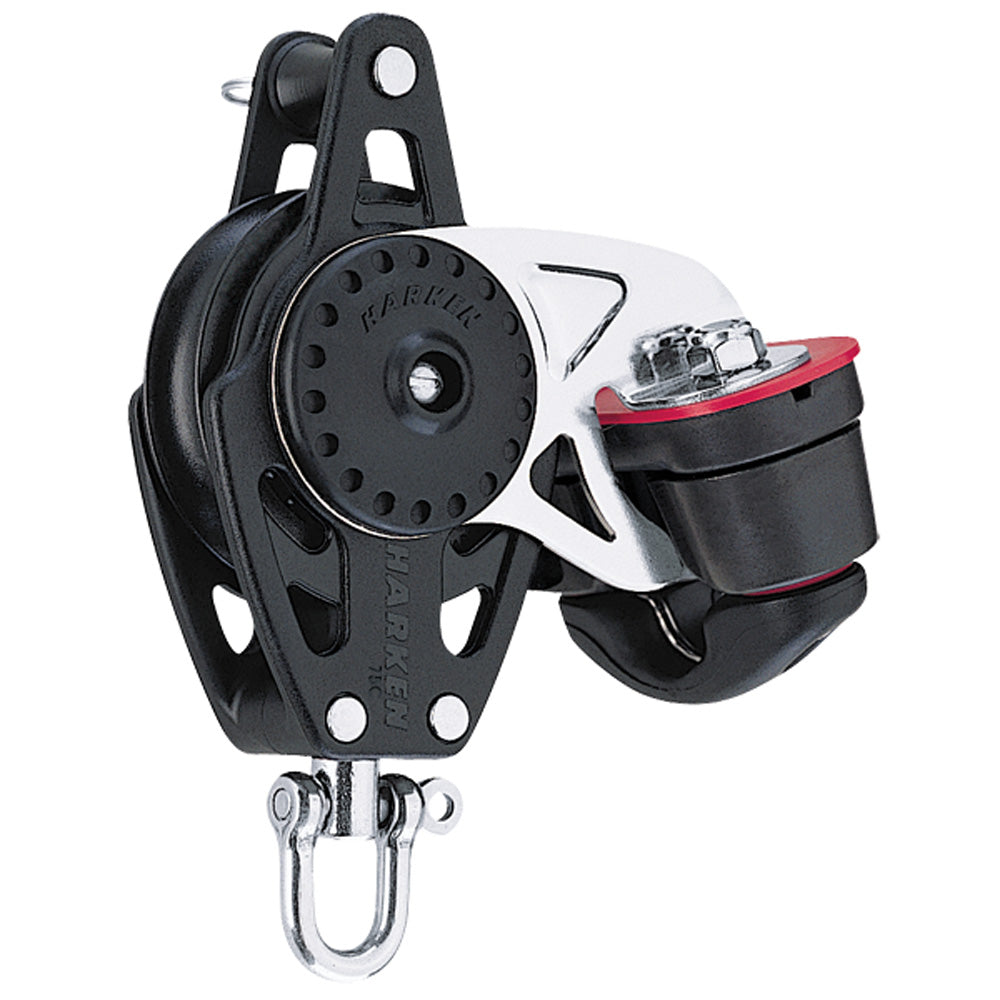

- 75mm Carbo single block with cleat and becket.
- 150 Cam-Matic cleat for easy line control.
- Integrated becket for cascading purchase.
- Swiveling head ensures optimal load orientation.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 2 15/16 in | 75.0 mm |
| Length | 6 1/2 in | 16.5 cm |
| Weight | 14.0 oz | 397.0 g |
| Maximum line | 1/2 in | 12.0 mm |
| Maximum working load | 600.0 lb | 272.0 kg |
| Breaking load | 1500.0 lb | 680.0 kg |
| Shackle pin | 1/4 in | 6.0 mm |
| Footnote | Maximum working loads and breaking loads for blocks based on cam strenghts | Maximum working loads and breaking loads for blocks based on cam strenghts |
