DESCRIPTION

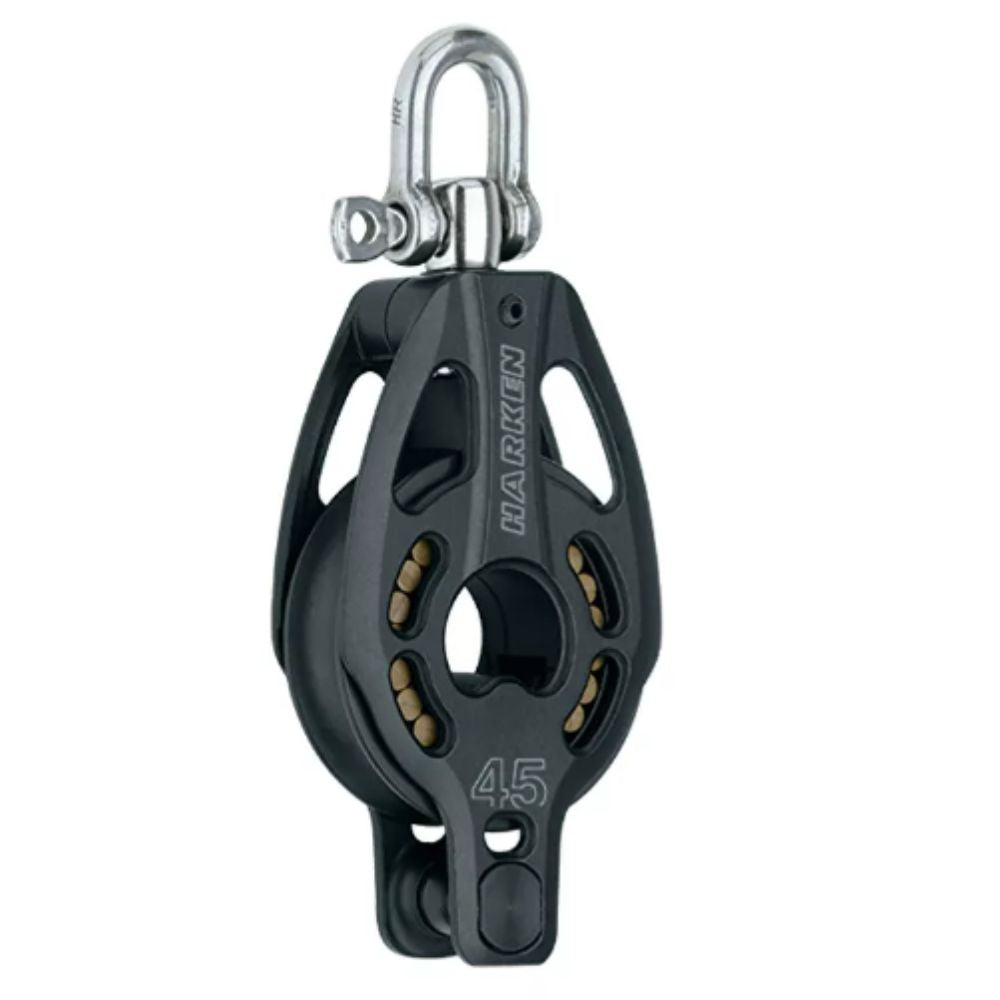

Black Magic Air blocks are a top favorite of Big Boat performance racers and cruisers. These lightweight, free-running, powerful performers are used for sail controls that see lots of action: mainsheet, runner, halyard, and spinnaker systems. A center cage keeps Torlon roller bearings separated and parallel to reduce friction. The sheave center carries primary load, allowing a smaller, lighter weight block. The soft-attachment Loop block has a removable deadend post for attachment to a padeye. Lashings can also be used. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.

Our Part # HAR3392 | Mfr. Part # 3392

FEATURES

  • Durable composite housing.
  • 45mm single sheave.
  • Integrated becket for extra lines.
  • Smooth, efficient rotation.
  • Enhances rigging versatility.

TECHNICAL INFORMATION

DescriptionImperialMetric
Sheave Ø1 3/4 in45.0 mm
Length Ø4 3/4 in12.0 cm
Weight 3.39 oz96.0 g
Shackle pin3/16 in5.0 mm
Maximum line Ø3/8 in10.0 mm
Maximum working load1653.0 lb750.0 kg
Breaking load3306.0 lb1500.0 kg
