DESCRIPTION
DESCRIPTION

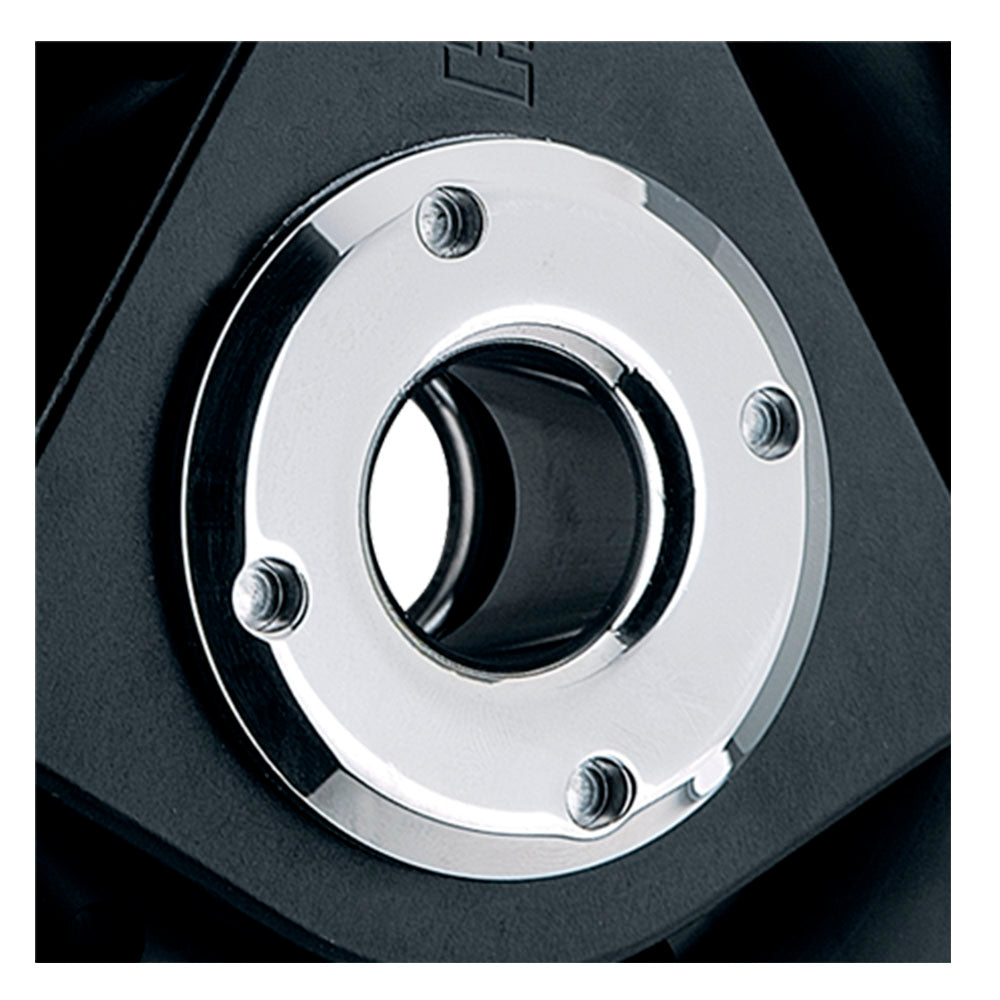

Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Maximum working load limited by shackle.
Our Part # HARHC8639 | Mfr. Part # HC8639
FEATURES
FEATURES

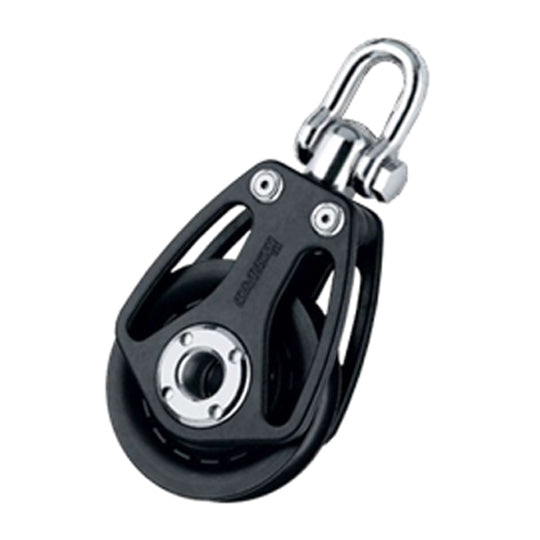

- 150mm single swivel block.
- Heavy-duty aluminum construction.
- Smooth, reliable swivel mechanism.
- Designed for large loads on megayachts.
- Excellent corrosion resistance.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 5 15/16 in | 15.0 cm |
| Length | 12 7/8 in | 327.0 mm |
| Weight | 7.74 lb | 3.5 kg |
| Maximum line | 1.0 in | 25.0 mm |
| Maximum working load | 19405.0 lb | 8800.0 kg |
| Breaking load | 38810.0 lb | 17600.0 kg |
| Footnote | Maximum working load limited by shackle | Maximum working load limited by shackle |
