DESCRIPTION

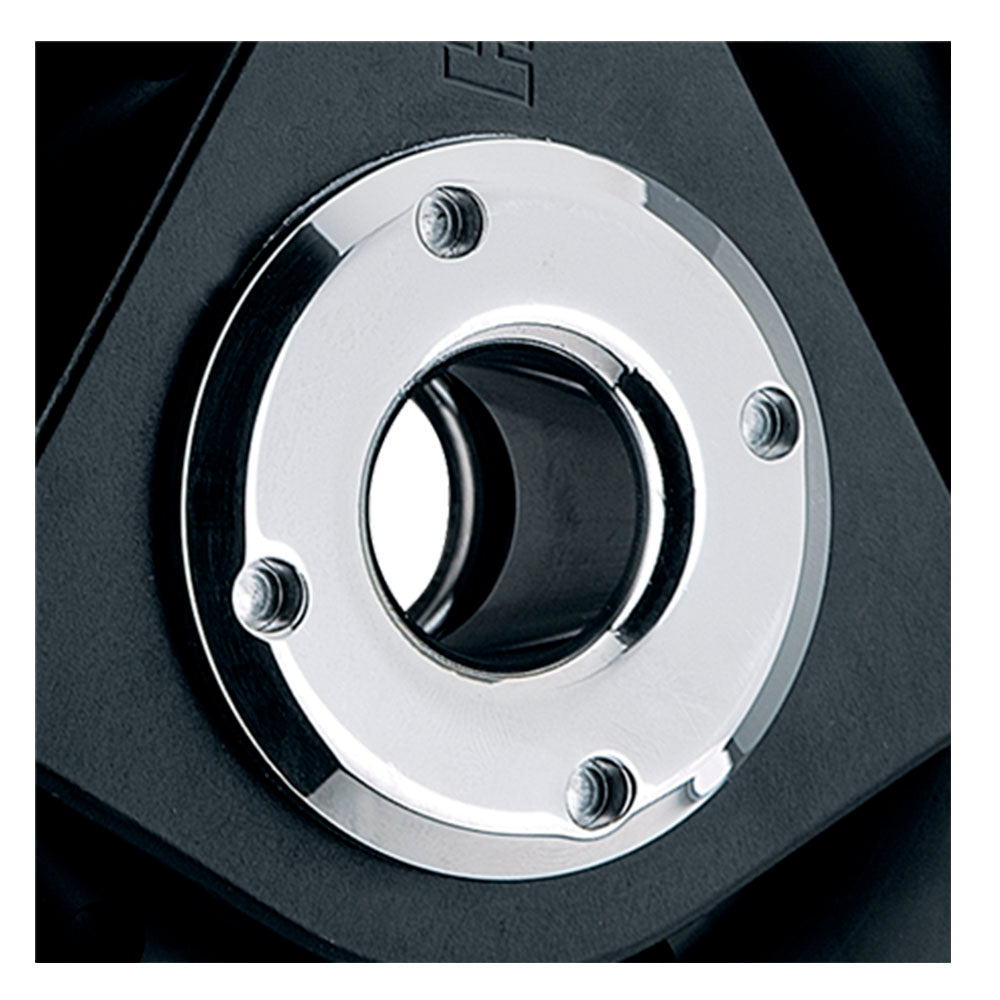

Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.

Our Part # HARHC8640 | Mfr. Part # HC8640

FEATURES

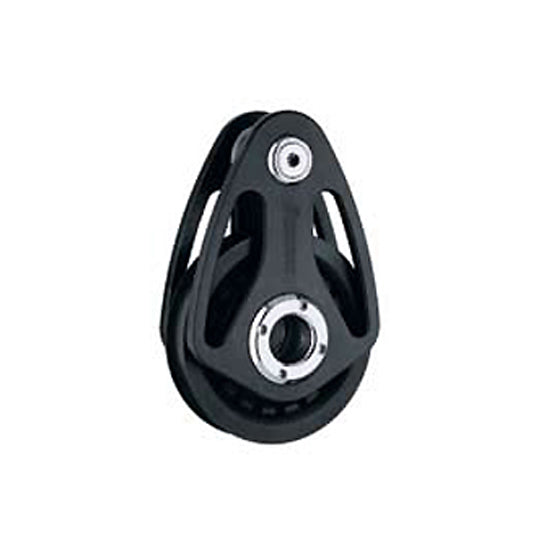

  • 125mm single teardrop block.
  • Machined aluminum frame.
  • Optimized for megayacht systems.
  • High working load capacity.
  • Sleek, low-profile design.

TECHNICAL INFORMATION

DescriptionImperialMetric
Sheave Ø5.0 in125.0 mm
Length7 1/2 in191.0 mm
Weight2.98 lb1.35 kg
Max line Ø3/4 in19.0 mm
Maximum working load15435.0 lb7000.0 kg
Breaking load30870.0 lb14000.0 kg
