DESCRIPTION
DESCRIPTION

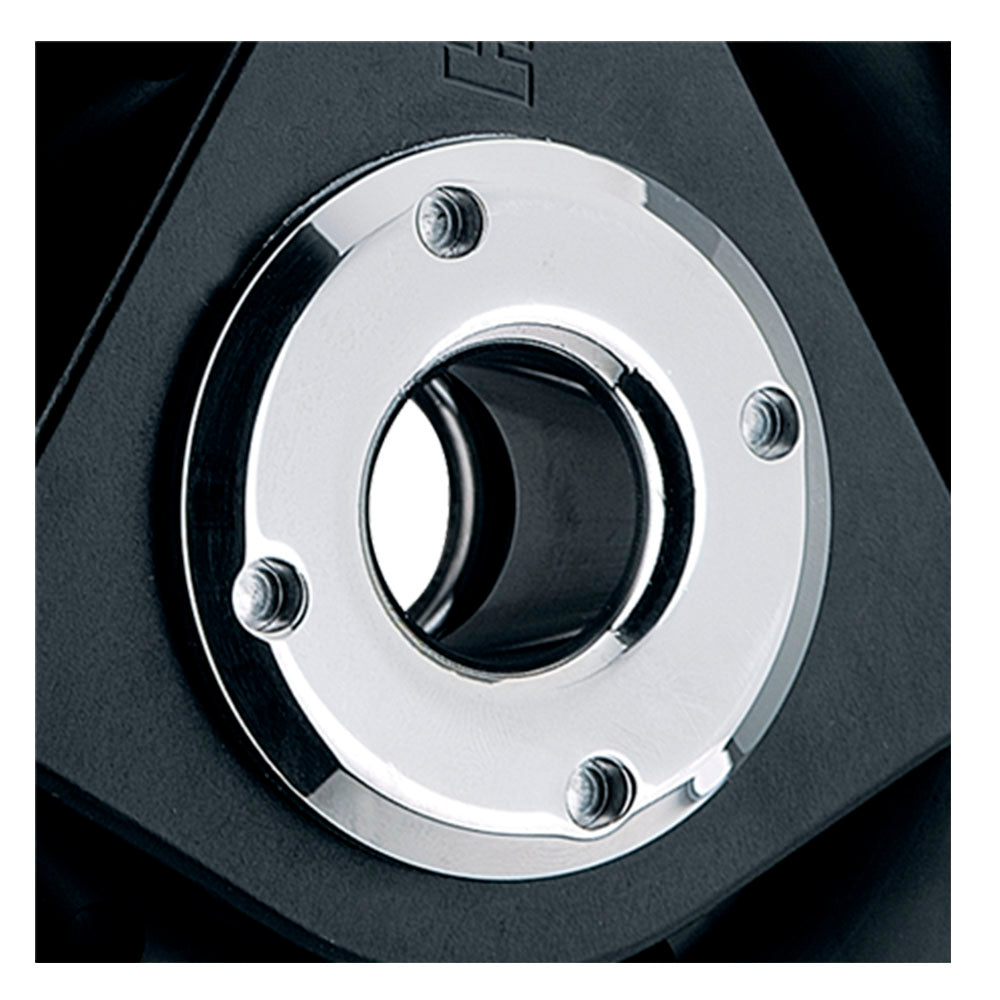

Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC8657 | Mfr. Part # HC8657
FEATURES
FEATURES

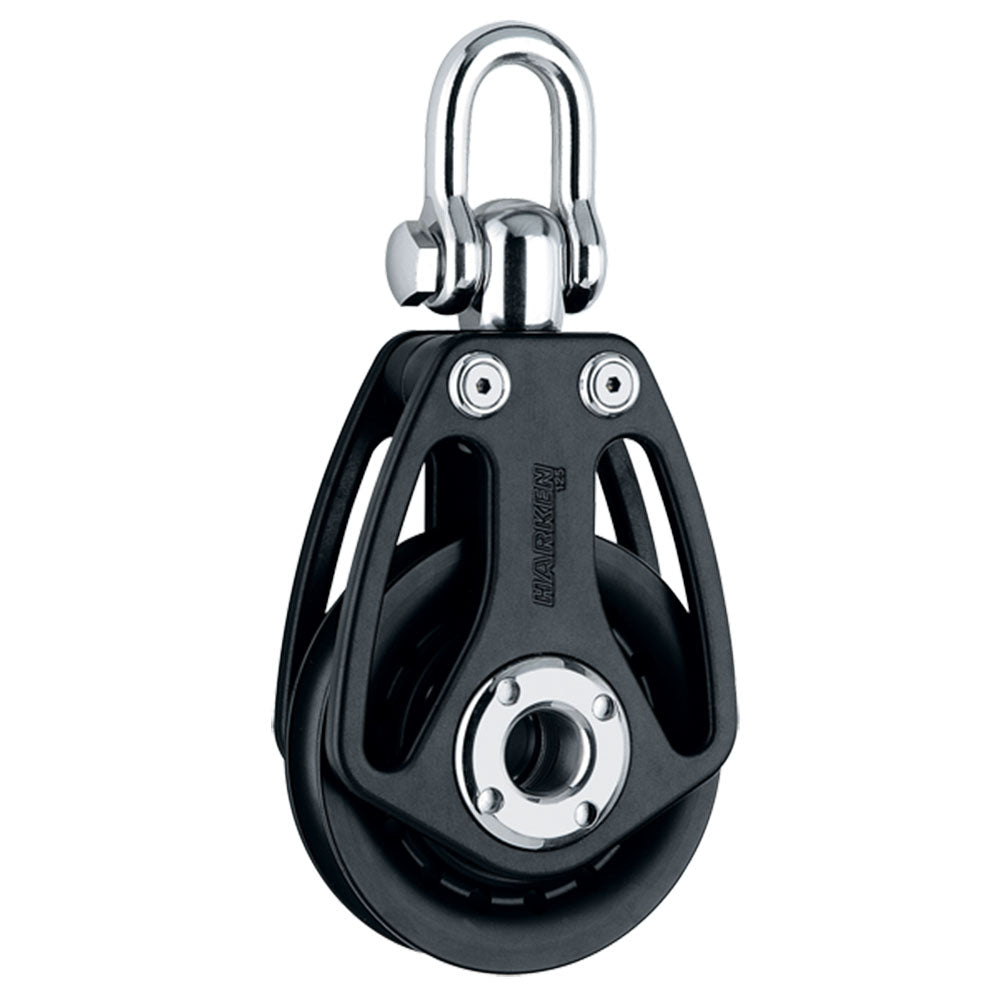

- 125mm single swivel block.
- Durable aluminum construction.
- Provides versatile line control.
- Reliable swivel for dynamic loads.
- Megayacht-specific design.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 4 15/16 in | 125.0 mm |
| Weight | 4.13 lb | 1.9 kg |
| Maximum line | 3/4 in | 19.0 mm |
| Maximum working load | 15435.0 lb | 7000.0 kg |
| Breaking load | 30870.0 lb | 14000.0 kg |
