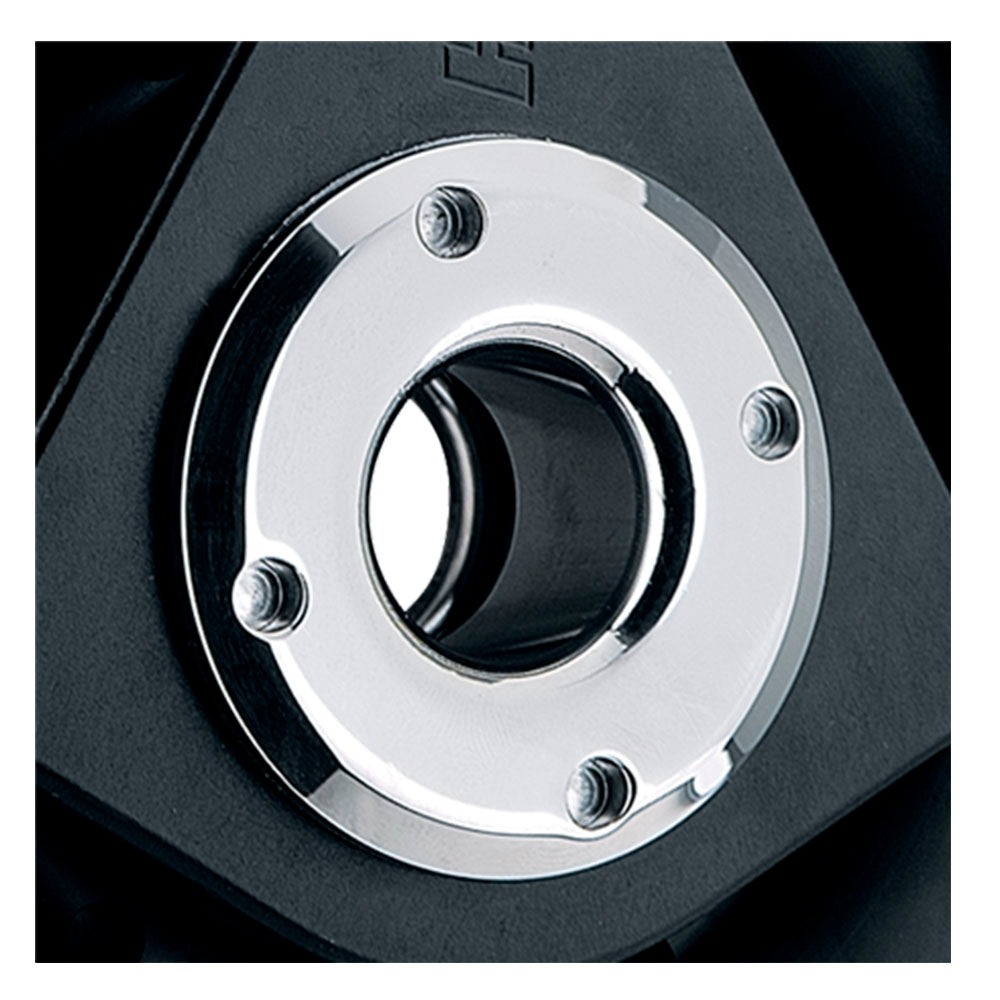

Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC8670 | Mfr. Part # HC8670
FEATURES
FEATURES

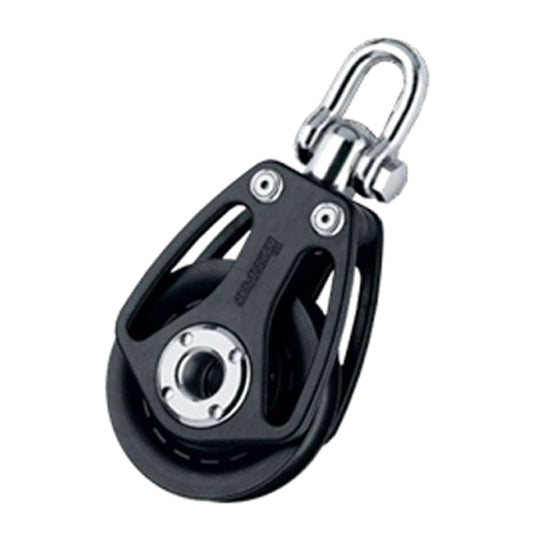

- 100mm single sheave block.
- Swivel head for versatile rigging.
- Constructed from durable aluminum.
- Designed for megayacht applications.
- High load capacity, smooth operation.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 3 15/16 in | 10.0 cm |
| Length | 8 3/4 in | 222.0 mm |
| Weight | 2.7 lb | 1.2 kg |
| Maximum line | 5/8 in | 16.0 mm |
| Maximum working load | 11025.0 lb | 5000.0 kg |
| Breaking load | 22050.0 lb | 10000.0 kg |
