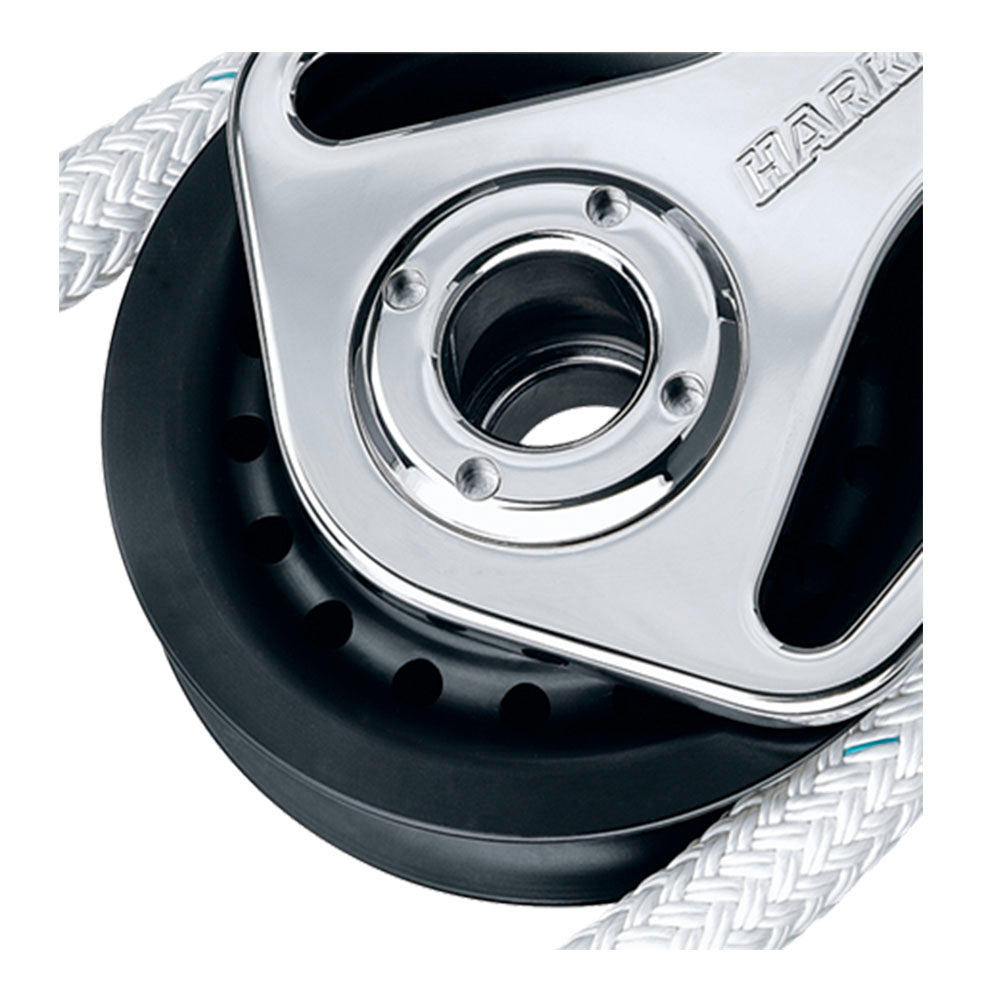

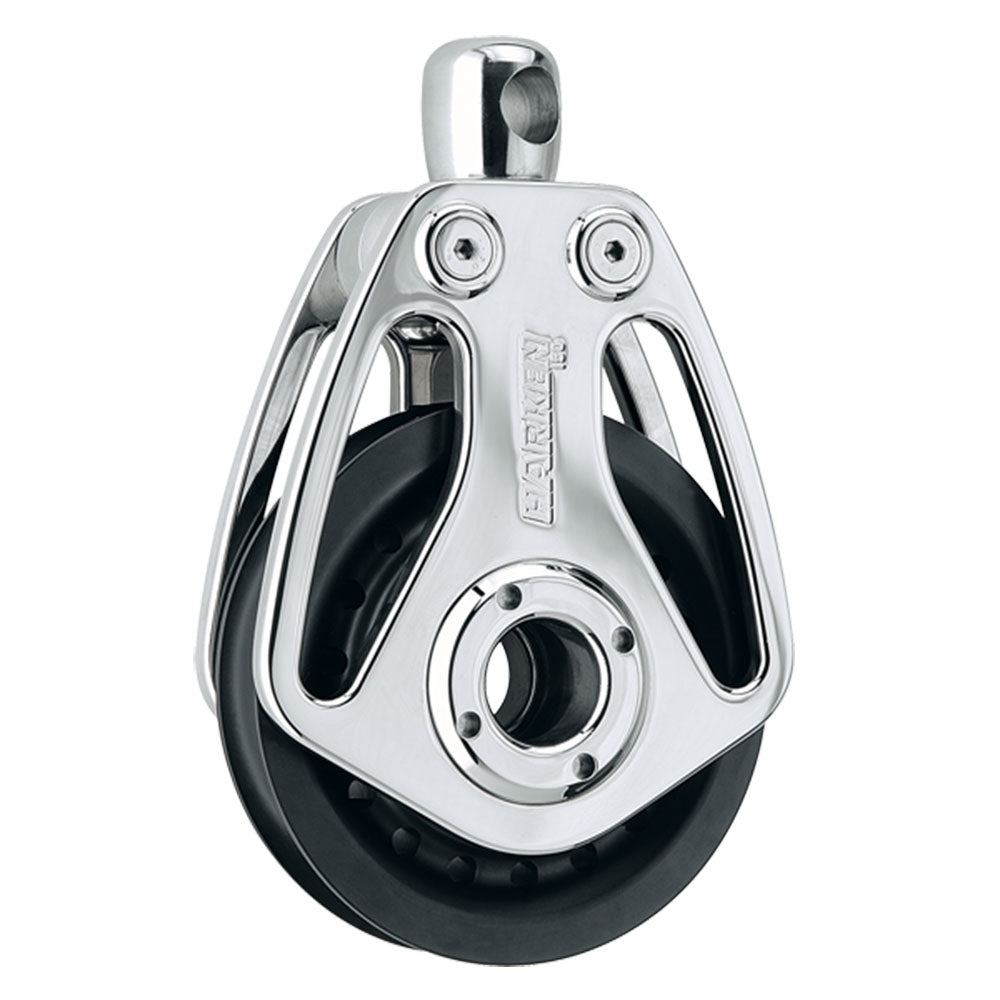

Stainless sideplates are mirror-polished for durability and unmatched esthetics. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Our Part # HARHC9077 | Mfr. Part # HC9077
FEATURES
FEATURES
- 100mm single swivel block.
- Crafted from stainless steel.
- Allows for changing line angles.
- Suitable for megayacht systems.
- Ensures smooth, flexible operation.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave | 3 15/16 in | 10.0 cm |
| Length | 8 3/4 in | 222.0 mm |
| Weight | 3.89 lb | 1.76 kg |
| Maximum line | 5/8 in | 16.0 mm |
| Maximum working load | 11025.0 lb | 5000.0 kg |
| Breaking load | 22050.0 lb | 10000.0 kg |
